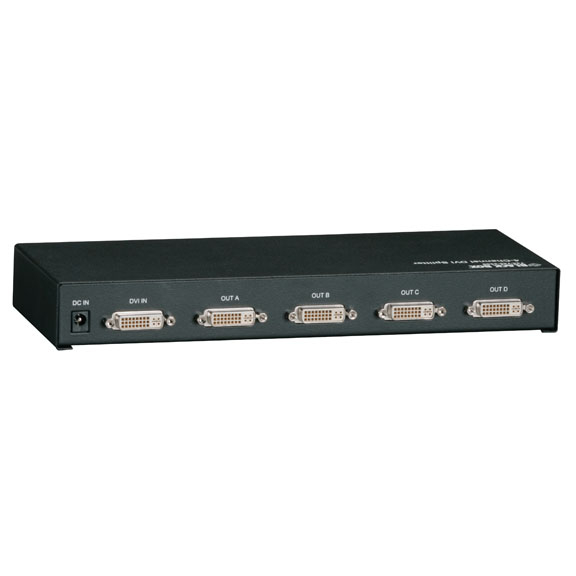

BlackBox, AC1031A-R2-4, 4-Channel Digital Visual Interface (DVI) Splitter

4-Channel Digital Visual Interface (DVI) Splitter. For eye-catching digital images on multiple screens, order a splitter.

Quick Facts

Further Details

Supports DVI-I (integrated analog and/or digital) video signals.
Can be cascaded up to two levels deep for additional outputs.
Provides resolutions of up to 1920 x 1200 (WUXGA) at 60 Hz and 1080i HDTV.
Accurately, reliably reproduces the digital video signal without signal attenuation and distortion.
No software needed. Simple, plug-and-play installation for quickly linking to DVI-enabled screens and projectors.
Extends video, too. Locate screens up to 33 feet (10 m) away from the splitter and still enjoy clear digital images.
Also supports 16.4 feet (5 m) of DVI cabling from the PC to its input port.
1U rackmountable design (kit included).

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Distance (Maximum)	From PC to splitter: 16.4 ft. (5 m); From splitter to DVI displays: 33 ft. (10 m)
Mean Time Between Failures	90,000 hours (estimate)
Resolution (Maximum)	PC: 1920 x 1200 (WUXGA) at 60 Hz; HDTV: 1080i
Standards	DDWG DVI 1.0; DVI-I Single Link
CE Approval	Yes
RoHS	Yes
Connectors	Input: (1) DVI-I; Output: (4) DVI-I
Power	Input: 100-240 VAC, 50-60 Hz, autosensing, external; Output: 12 VDC, 1 A
Size	1.8"H (1U) x 10.6"W x 4.1"D (4.6 x 26.9 x 10.4 cm)
Weight	2.7 lb. (1.2 kg)

Distance (Maximum)	From PC to splitter: 16.4 ft. (5 m); From splitter to DVI displays: 33 ft. (10 m)
Mean Time Between Failures	90,000 hours (estimate)
Resolution (Maximum)	PC: 1920 x 1200 (WUXGA) at 60 Hz; HDTV: 1080i
Standards	DDWG DVI 1.0; DVI-I Single Link
CE Approval	Yes
RoHS	Yes
Connectors	Input: (1) DVI-I; Output: (4) DVI-I
Power	Input: 100-240 VAC, 50-60 Hz, autosensing, external; Output: 12 VDC, 1 A
Size	1.8"H (1U) x 10.6"W x 4.1"D (4.6 x 26.9 x 10.4 cm)
Weight	2.7 lb. (1.2 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
