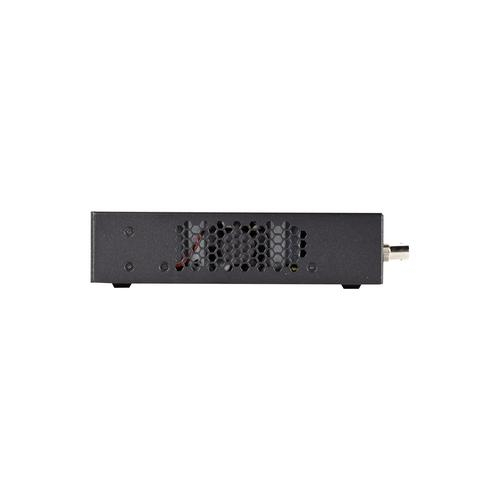

BlackBox VSC-VPLEX4000 VideoPlex 4000 Video Wall Controller, 4K, HDMI

VideoPlex 4000 Video Wall Controller, 4K, HDMI

VideoPlex4000 gives users the flexibility to create individually shaped video walls with four-or more-HDMI displays and no restrictions on how the screens are arranged or screen sizes. Users can freely scale and position images, including rotations of up to 270°. One image can be reproduced on each screen or cropped regions of the image can be shown on each screen. This video wall controller upscales input and outputs distortion-free images making it ideal for live camera feeds or animated content.

Features:

• Standalone video wall controller/scaler outputs high-resolution HDMI video, up to 4K, to four monitors per device.
• Super flexible connectivity: dual HDMI 1.4 4K @ 30 Hz inputs and one DisplayPort 1.2 for 4K @ 60 Hz inputs.
• Supports four 1080p outputs to four independent HDMI displays.
• Supports non-rectangular screen arrangements and any mix of monitor orientations so users can create an almost unlimited multi-monitor canvas.
• Stack multiple units to create larger video walls.
• Enables you to rotate, crop, and scale video. Automatically corrects for bezels.
• Enables easy control of cropping, scaling, rotation, and gaps.
• Comes with user friendly software with drag and drop configuration.
• Supports HDMI and has HDCP support on all inputs and outputs.
• Dual Ethernet ports enable network connectivity and cascading.

Product includes:

• VideoPlex4000
• USB 2.0 cable, Type A to Type B
• IEC-320 C13 to NEMA 5-15 Power Cable
• 6 Rackmount Screws
• 6 HDMI Cable Locks
• 6 Cable Tie Wraps
• DVD
• Quick Start Guide
