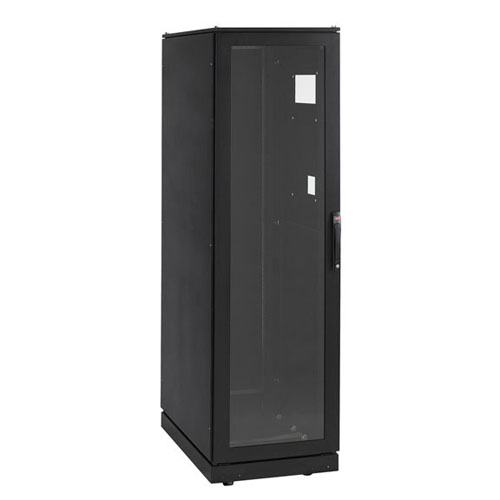

Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 32"D
Quick Facts
- Weight capacity of 1100 pounds.
- Constructed of heavy-gauge welded steel.
- Protects servers, networking equipment, and telephony equipment through Zone 4 seismic activity.
Further Details
- Vented heavy-gauge steel base can be bolted to floor with seismic-rated fasteners.
- Performance rating based on NEBS-Telcordia GR-63-CORE standard vibration test.
- Reinforced front door features smoke gray acrylic window.
- EIA standard for 19" rackmount equipment.
- Door equipped with 3-point latching and keylock handle.
- Door and side panels removable for easy installation and access.
- Top features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards.
- With its "chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.
- Dynamic load rating of 1000 pounds (454 kg) for earthquake zones; static load rating of 2500 pounds (1134 kg) for non-earthquake zones.
If it can stand up to the activity in California, it can handle what happens in your server room. The Zone 4 Seismic Cabinet is designed to protect up to 1000 pounds of server room equipment from the rigors of Zone 4 seismic activity. And because it meets EIA standards, the cabinet can be used in different applications with 19-inch rackmount equipment and fans.
The top of the cabinet features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards. With its "chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.
