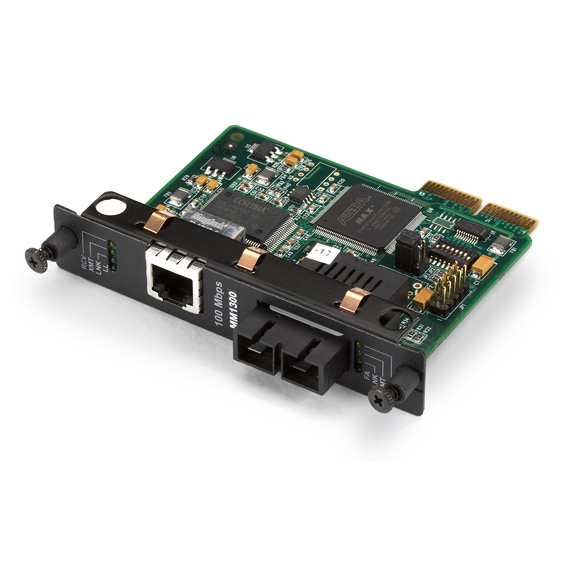

BlackBox, LMC5023C-R3, Media Converter System II Multimode 100BASE-TX to 100BASE-FX
High-Density Media Converter System II, Layer 1 Module, 100BASE-TX to 100BASE-FX, Multimode, 1300-nm, 2 km, SC. Convert 100-Mbps copper to 100-Mbps fiber for extensions up to 2 kilometers!
Quick Facts
- Converts Fast Ethernet copper networks to multimode or single-mode fiber for 1000-Mbps network extension.
- Extends a network up to 2 kilometers (1.2 mi.).
- Install in our High-Density Media Converter System II Chassis.
- LinkLoss notifies you of "silent failures" on the copper-to-fiber links.
Further Details
This module plugs into the fully manageable High-Density Media Converter System II and converts 100-Mbps copper to 100-Mbps multimode or single-mode for transmission over duplex optical fiber.
This Layer 1 module for the High-Density Media Converter System II belongs to a large family of modular media converter and communications options for your managed enterprise network. With many modules to choose from, this system can adapt to even the most demanding network configurations.
The modular media converters for the High-Density Media Converter System II convert the incoming electrical signal from one cable type and then transmit it over another type. Bridging the gap between two different Ethernet types, the media converters are totally transparent to network operation, having no effect on the data being sent across the link. What's more, all the modules are hot-swappable-you never need to power down a chassis to change a module.
The High-Density Media Converter System II 100BASE-TX to 100BASE-FX Duplex Layer 1 Module featured here is ideal for establishing longer Fast Ethernet runs across your campus and beyond. It transmits 100-Mbps data over duplex fiber as far as 2 kilometers (1.2 mi.).
The Configuration Control feature retains the latest configuration regardless of whether it was set using DIP switches or SNMP.
This module has LinkLoss, which notifies you of "silent failures" on copper-to-fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter's Link LED-the link status of the fiber segment will always be reflected by the twisted-pair segment so you're informed quickly of fiber problems. The module also features link fault pass-through (LFPT), which automatically shuts down a link if its link partner fails.
