Buy BlackBox LHC043A-R4, Fast Ethernet Media Converter, 1550/1310nm, 2km

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

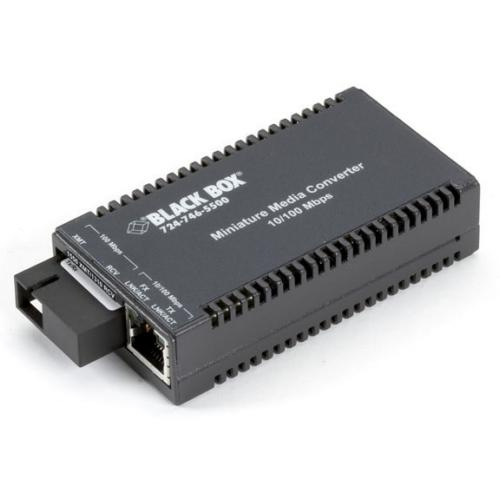

Black Box, LHC043A-R4, Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Simplex Singlemode Fiber, 1550/1310nm, 2km, SC

Features with all optional accessories:

Compliant to EN62368
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
Powered by a universal AC power supply or the optional rackmountable PowerTray.
Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
Converters may also be powered from a USB port using the LHC021A USB power cable.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	CE
Cable Requirements	Twisted pair: CAT5 or above, shielded or unshielded;Singlemode fiber: 50-/125-µm or 62.5-/125-µm duplex
Humidity	5 to 95%, noncondensing
Operating temperature	+32 to +122°F (+0° to +50°C)
Storage temperature	0 to 160°F (-20 to +70°C)
Connectors	(1) RJ-45, with autocross for MDI-II/MDI-X; (1) SC
Dimensions (Chassis)	0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)
Indicators	LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT; Per fiber port: (1) XMT, (1) RCV

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Approvals	CE
Cable Requirements	Twisted pair: CAT5 or above, shielded or unshielded;Singlemode fiber: 50-/125-µm or 62.5-/125-µm duplex
Humidity	5 to 95%, noncondensing
Operating temperature	+32 to +122°F (+0° to +50°C)
Storage temperature	0 to 160°F (-20 to +70°C)
Connectors	(1) RJ-45, with autocross for MDI-II/MDI-X; (1) SC
Dimensions (Chassis)	0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)
Indicators	LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT; Per fiber port: (1) XMT, (1) RCV

Note: Please read description carefully. Do not base your order on the picture presented.
