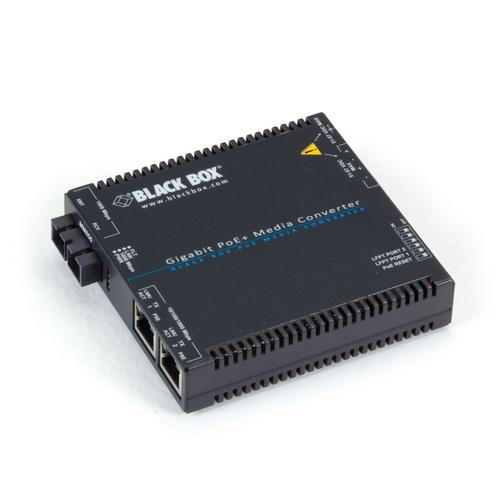

BlackBox, LGC5211A, LGC5200 Series Media Converter Gigabit Ethernet PoE+ Multimode 850nm 550m SC
Features:
- Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
- Both UTP ports are autosensing with Auto MDI/MDI-X; Both UTP port supports 802.3at PoE+.
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Features an extended temperature range when used with DC terminal-block power
Further Details
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones. The media converter features two auto sensing 10/100/1000 UTP ports plus one multimode fiber port that can extend a network connection up to 550 meters (1804 ft.). Both UTP ports supports 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion. The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, included), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C). The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
