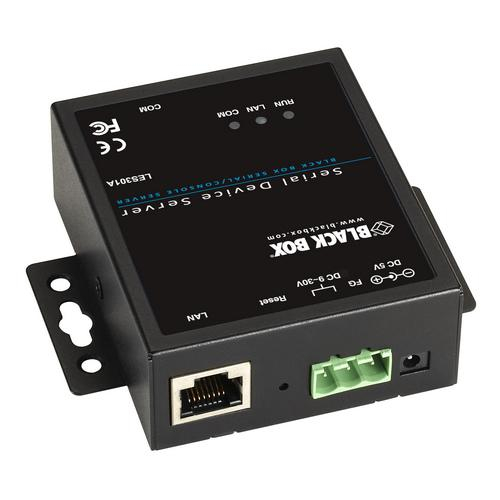

Industrial Serial Device Server - 1-Port

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
CE Approval	Yes
Connectors	Serial: (1) DB9 M (RS-232/422/485 software selectable); Ethernet: (1) RJ-45 (10BASE-TX/100BASE-T)
Dimensions	1.1"H x 2.6"W x 3.1"D (2.8 x 6.6 x 7.9 cm)
Ethernet Interface	10 or 100 Mbps
Power	9-30 VDC from separate AC power supply (not included); Consumption: 1.5 watts (maximum)
RoHS	Yes
Serial Baud Rate	1200 bps to 230 kbps
Serial Data Bits	7, 8
Serial Data Parity	None, Odd, Even, Mark, Space
Serial ESD Protection	15 kV
Serial Flow Control	None; Software: X-ON/X-OFF; Hardware: RTS/CTS
Serial Stop Bits	1, 2
Software Support Protocols	ICMP, TCP (UDP)/IP, DHCP client, SNMP, HTTP, Telnet
Standard	IEEE 802.3

General
CE Approval	Yes
Connectors	Serial: (1) DB9 M (RS-232/422/485 software selectable); Ethernet: (1) RJ-45 (10BASE-TX/100BASE-T)
Dimensions	1.1"H x 2.6"W x 3.1"D (2.8 x 6.6 x 7.9 cm)
Ethernet Interface	10 or 100 Mbps
Power	9-30 VDC from separate AC power supply (not included); Consumption: 1.5 watts (maximum)
RoHS	Yes
Serial Baud Rate	1200 bps to 230 kbps
Serial Data Bits	7, 8
Serial Data Parity	None, Odd, Even, Mark, Space
Serial ESD Protection	15 kV
Serial Flow Control	None; Software: X-ON/X-OFF; Hardware: RTS/CTS
Serial Stop Bits	1, 2
Software Support Protocols	ICMP, TCP (UDP)/IP, DHCP client, SNMP, HTTP, Telnet
Standard	IEEE 802.3

Note: Please read description carefully. Do not base your order on the picture presented.
