Buy BlackBox LE2711C, 100BASE-FX ST Switch Module

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Connector Type:: Connector Type: ST

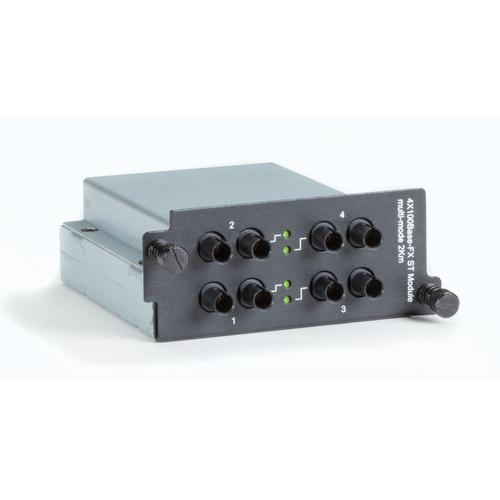

BlackBox, LE2711C, 4-Port, 100BASE-FX Switch Module for LE2700 Chassis, Multimode, 2-km, ST

Features:

Designed for applications such as: oil/gas wells, electric substations, railways, utilities, and other industrial environments.
Dual power supplies provide network redundancy with <30 millisecond failovers.
Designed for extreme temperatures of -40 to +185° F (-40 to +85°C).
Configure and monitor installations remotely. No truck rolls needed.
Supports Web, SNMP, and console user interfaces.
Accommodates high-availability protocols, including xSTP, link aggregation, and redundant ring.
Manages traffic with 802.1p/q tagged frames. Handles jumbo frames.
Supports IP multicast snooping with IGMPv2/v3.
IEEE 802.3az energy efficient.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

General
Approvals	EMI: FCC Part 15; CISPR (EN55022) Class A; EN50155 (EN50121-3-2; EN55011; EN50121-4);EMS: EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8; EN61000-4-11
Connectors	(4) ST
Environmental	Storage: -40 to +185° F (-40 to +85° C);
Humidity	5 to 95%, non-condensing
Indicators	Chassis indicators
Jumbo Frames	Up to 9.6 KB
MAC Addresses	8K
Network Redundancy	MRP, MSTP (RSTP/STP compatible)
Power	Chassis power
Priority Queues	8
Processing Type	Store-and-forward
Security	Device binding;Enable/disable ports, MAC based port security;Port-based network access control (802.1x);Single 802.1x and Multiple 802.1x;MAC-based authentication;QoS assignment;Guest VLAN;MAC address limit;TACACS+;VLAN (802.1Q) to segregate and secure network traffic;Radius centralized password management;SNMPv3 encrypted authentication and access security;Https/SSH enhance network security;Web and CLI authentication and authorization;Authorization (15 levels);IP source guard
Software	IEEE 1588v2 clock synhronization;IEEE 801.1D Bridge; auto MAC address learning/aging and MAC address (static);Multiple Registration Protocol (MRP);MSTP (RSTP/STP compatible);Redundant Ring with recovery time less tham 30 ms over 250 units;Quality of Service (802.1p) for real-time traffic;VLAN (802.1Q) with VLAN tagging;IGMP v2/v3 Snooping;Port configuration, status, statistics, monitoring, security;DHCP Server/Client;DHCP Relay;Modbus TCP;DNS client proxy;SMTP Client
Standards	IEEE 802.3 10BASE-T;IEEE 802.3u 100BASE-TX and 100BASE-FX;IEEE 802.3ab 1000BASE-T;IEEE 802.3z 100BASE-X;IEEE 802.3ae 10 Gigabit Ethernet;IEEE 802.3ad LACP (Link Aggregation Control Protocol);IEEE 802.1p COS (Class of Service);IEEE 802.1q VLAN tagging;IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);IEEE 802.1x authentication;IEEE 801.1AB LLDP (Link Layer Discovery Protocol)
Operating temperature	-40 to +185° F (-40 to +85° C)
Storage Temperature	-40 to +185° F (-40 to +85° C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
Approvals	EMI: FCC Part 15; CISPR (EN55022) Class A; EN50155 (EN50121-3-2; EN55011; EN50121-4);EMS: EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8; EN61000-4-11
Connectors	(4) ST
Environmental	Storage: -40 to +185° F (-40 to +85° C);
Humidity	5 to 95%, non-condensing
Indicators	Chassis indicators
Jumbo Frames	Up to 9.6 KB
MAC Addresses	8K
Network Redundancy	MRP, MSTP (RSTP/STP compatible)
Power	Chassis power
Priority Queues	8
Processing Type	Store-and-forward
Security	Device binding;Enable/disable ports, MAC based port security;Port-based network access control (802.1x);Single 802.1x and Multiple 802.1x;MAC-based authentication;QoS assignment;Guest VLAN;MAC address limit;TACACS+;VLAN (802.1Q) to segregate and secure network traffic;Radius centralized password management;SNMPv3 encrypted authentication and access security;Https/SSH enhance network security;Web and CLI authentication and authorization;Authorization (15 levels);IP source guard
Software	IEEE 1588v2 clock synhronization;IEEE 801.1D Bridge; auto MAC address learning/aging and MAC address (static);Multiple Registration Protocol (MRP);MSTP (RSTP/STP compatible);Redundant Ring with recovery time less tham 30 ms over 250 units;Quality of Service (802.1p) for real-time traffic;VLAN (802.1Q) with VLAN tagging;IGMP v2/v3 Snooping;Port configuration, status, statistics, monitoring, security;DHCP Server/Client;DHCP Relay;Modbus TCP;DNS client proxy;SMTP Client
Standards	IEEE 802.3 10BASE-T;IEEE 802.3u 100BASE-TX and 100BASE-FX;IEEE 802.3ab 1000BASE-T;IEEE 802.3z 100BASE-X;IEEE 802.3ae 10 Gigabit Ethernet;IEEE 802.3ad LACP (Link Aggregation Control Protocol);IEEE 802.1p COS (Class of Service);IEEE 802.1q VLAN tagging;IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);IEEE 802.1x authentication;IEEE 801.1AB LLDP (Link Layer Discovery Protocol)
Operating temperature	-40 to +185° F (-40 to +85° C)
Storage Temperature	-40 to +185° F (-40 to +85° C)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
