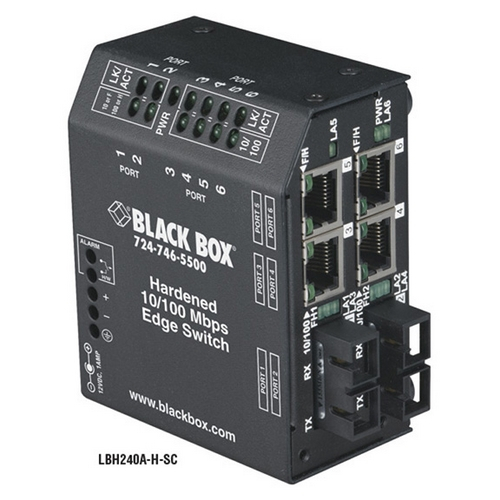

Heavy-Duty Edge Switch, Hardened, (4) Copper + (2) Fiber Ports, Multimode, 12-VDC, ST

For industrial environments.
Feature two fiber ports and four copper ports to expand your network.
Tough steel case.
RJ-45 ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.
Available with many types of AC and DC power supplies.
Support both half- and full-duplex operation

Two sets of LEDs enable you to see status information from the front, top, or side.
Support VLAN tagging and spanning tree passthrough.
Include Link-Loss-Learn (LLL) feature for fast network recovery

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode SC models: 20 km (12.4 mi.); Single-mode LC models: 15 km (9.3 mi.); Single-mode, long-distance SC models: 40 km (24.8 mi.)
Enclosure	Steel
Humidity	5–95%, noncondensing
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to +85° C); Cold start to -4° F (-20° C)
CE Approval	Yes
Indicators	LEDs: Per Unit: (2) Power; Per Port: (2) LK/ACT, (2) F/H; Per Copper Port: (2) 10/100
Size	3.6"H x 3"W x 1.7"D (9.2 x 7.6 x 4.3 cm)
Weight	Switches: 0.8 lb. (0.4 kg); Power Supplies: 0.4 lb. (0.2 kg)

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode SC models: 20 km (12.4 mi.); Single-mode LC models: 15 km (9.3 mi.); Single-mode, long-distance SC models: 40 km (24.8 mi.)
Enclosure	Steel
Humidity	5–95%, noncondensing
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to +85° C); Cold start to -4° F (-20° C)
CE Approval	Yes
Indicators	LEDs: Per Unit: (2) Power; Per Port: (2) LK/ACT, (2) F/H; Per Copper Port: (2) 10/100
Size	3.6"H x 3"W x 1.7"D (9.2 x 7.6 x 4.3 cm)
Weight	Switches: 0.8 lb. (0.4 kg); Power Supplies: 0.4 lb. (0.2 kg)
