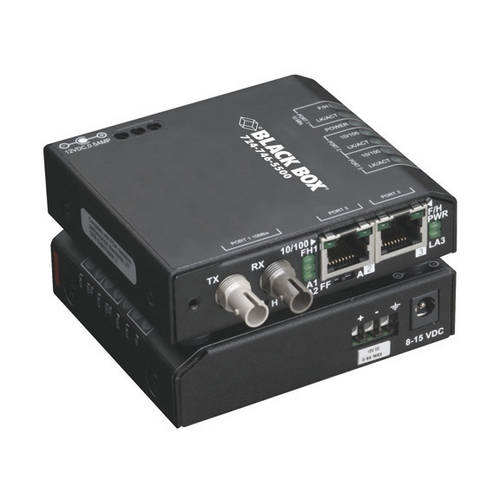

Hardened Media Converter Switch, 10-/100-Mbps Copper to 10-Mbps Fiber, Single-Mode, 100–240-VAC, ST

Function as both a media converter and a switch.
Suitable for dusty or dirty environments with a temperature range between -13 and +140º F (-25 to +60º C).
Provide one 10-Mbps ST® fiber port and two 10-/100-Mbps UTP switch ports

RJ-45 ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.
Available with 100–240-VAC and 12-, 24-, and 48-VDC power supplies.
Support both half- and full-duplex operation.
Two sets of LEDs enable you to see status information from the front, top, or side.
Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray (sold separately).
For outdoor environments, see our Extreme Media Converter Switches (LBH100A-P and LBH110A-P families). Standard office-grade versions (LBH100A, LBH110A families) are also available.
For faster fiber infrastructures, see Hardened Media Converter Switches for 100-Mbps fiber (LBH100A-H family)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode models: 20 km (12.4 mi.)
Enclosure	Steel
Humidity	5–95%, noncondensing
MAC Addresses	2K
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C)
CE Approval	Yes
Connectors	(2) RJ-45, (1) pair of ST
Indicators	100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Weight	Media Converter Switches: 0.3 lb. (0.1 kg); Power Supplies: 0.4 lb. (0.2 kg)

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode models: 20 km (12.4 mi.)
Enclosure	Steel
Humidity	5–95%, noncondensing
MAC Addresses	2K
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C)
CE Approval	Yes
Connectors	(2) RJ-45, (1) pair of ST
Indicators	100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Weight	Media Converter Switches: 0.3 lb. (0.1 kg); Power Supplies: 0.4 lb. (0.2 kg)
