Options and Related Products

Specific Feature:: Specific Feature: Single-Mode, LC

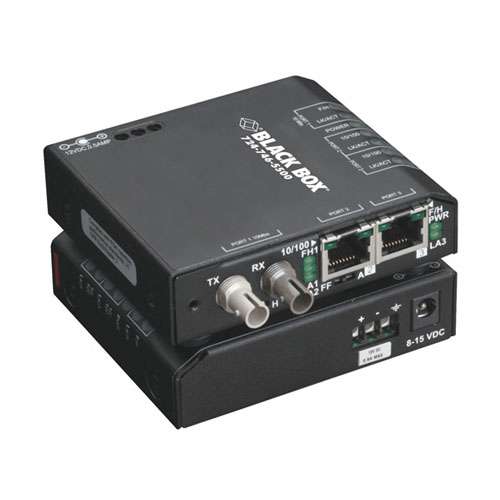

Hardened Media Converter Switches, 10/-100-Mbps Copper to 100-Mbps Fiber, 100-240-VAC with IEC, LC

Quick Facts

Function as both a media converter and a switch.
Suitable for dusty or dirty environments with a temperature range between -13 and +140° F (-25 to +60° C).
Provide one 100-Mbps fiber port and two 10-/100-Mbps UTP switch ports.

Further Details

RJ-45 ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.
ST, SC, MT-RJ, and LC fiber port types available.
Available with 100-240-VAC and 12-, 24-, and 48-VDC power supplies.
Support both half- and full-duplex operation.
Two sets of LEDs enable you to see status information from the front, top, or side.
Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray (sold separately).
For outdoor environments, see our Extreme Media Converter Switches (LBH100A-P and LBH110A-P families). Standard office-grade versions (LBH100A, LBH110A families) are also available.
For older fiber infrastructures, see Hardened Media Converter Switches for 10-Mbps fiber (LBH110A-H family).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode SC models: 20 km (12.4 mi.); Single-mode LC models: 15 km (9.3 mi.); Single-mode, long-distance SC models: 40 km (24.8 mi.)
Enclosure	Steel
Humidity	5-95%, noncondensing
MAC Addresses	2K
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C)
CE Approval	Yes
Connectors	LBH100A-H-ST, LBH100AE-H-ST, LBH100A-H-ST-12, LBH100A-H-ST-24, LBH100A-HD-ST-24, LBH100A-H-ST-48: (2) RJ-45, (1) pair of ST®; LBH100A-H-MT, LBH100AE-H-MT, LBH100A-H-MT-12, LBH100A-H-MT-24, LBH100A-HD-MT-24, LBH100A-H-MT-48: (2) RJ-45, (1) pair of MT-RJ; LBH100A-H-SC, LBH100AE-H-SC, LBH100A-H-SC-12, LBH100A-H-SC-24, LBH100A-HD-SC-24, LBH100A-H-SC-48, LBH100A-H-ssC, LBH100AE-H-ssC, LBH100A-H-ssC-12, LBH100A-H-ssC-24, LBH100A-HD-ssC-24, LBH100A-H-ssC-48, LBH100A-H-ssCL, LBH100AE-H-ssCL, LBH100A-H-ssCL-12, LBH100A-H-ssCL-24, LBH100A-HD-ssCL-24, LBH100A-H-ssLC-48: (2) RJ-45, (1) pair of SC; LBH100A-H-SLC, LBH100AE-H-SLC, LBH100A-H-SLC-12, LBH100A-H-SLC-24, LBH100A-HD-SLC-24, LBH100A-H-SLC-48: (2) RJ-45, (1) pair of LC
Indicators	AC models: 100-240-VAC, 47-63-Hz external power supply 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Weight	Media Converter Switches: 0.3 lb. (0.1 kg); Power Supplies: 0.4 lb. (0.2 kg)
These products work with	Spare AC Power Supplies Rackmount Trays DIN Rail Mounting Bracket Extreme Media Converter Switches Standard Media Converter Switches Convenient Switches

Product Details

Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
Distance (Maximum)	Multimode models: 2 km (1.2 mi.); Single-mode SC models: 20 km (12.4 mi.); Single-mode LC models: 15 km (9.3 mi.); Single-mode, long-distance SC models: 40 km (24.8 mi.)
Enclosure	Steel
Humidity	5-95%, noncondensing
MAC Addresses	2K
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C)
CE Approval	Yes
Connectors	LBH100A-H-ST, LBH100AE-H-ST, LBH100A-H-ST-12, LBH100A-H-ST-24, LBH100A-HD-ST-24, LBH100A-H-ST-48: (2) RJ-45, (1) pair of ST®; LBH100A-H-MT, LBH100AE-H-MT, LBH100A-H-MT-12, LBH100A-H-MT-24, LBH100A-HD-MT-24, LBH100A-H-MT-48: (2) RJ-45, (1) pair of MT-RJ; LBH100A-H-SC, LBH100AE-H-SC, LBH100A-H-SC-12, LBH100A-H-SC-24, LBH100A-HD-SC-24, LBH100A-H-SC-48, LBH100A-H-ssC, LBH100AE-H-ssC, LBH100A-H-ssC-12, LBH100A-H-ssC-24, LBH100A-HD-ssC-24, LBH100A-H-ssC-48, LBH100A-H-ssCL, LBH100AE-H-ssCL, LBH100A-H-ssCL-12, LBH100A-H-ssCL-24, LBH100A-HD-ssCL-24, LBH100A-H-ssLC-48: (2) RJ-45, (1) pair of SC; LBH100A-H-SLC, LBH100AE-H-SLC, LBH100A-H-SLC-12, LBH100A-H-SLC-24, LBH100A-HD-SLC-24, LBH100A-H-SLC-48: (2) RJ-45, (1) pair of LC
Indicators	AC models: 100-240-VAC, 47-63-Hz external power supply 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Weight	Media Converter Switches: 0.3 lb. (0.1 kg); Power Supplies: 0.4 lb. (0.2 kg)
These products work with	Spare AC Power Supplies Rackmount Trays DIN Rail Mounting Bracket Extreme Media Converter Switches Standard Media Converter Switches Convenient Switches

Note

Note: Please read description carefully. Do not base your order on the picture presented.
