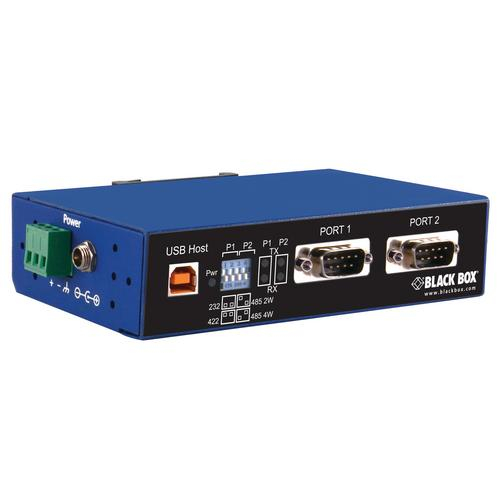

BlackBox, ICD120A, USB to RS232, RS422/485 Converter DB9 2 Port Industrial

Features:

Easy to install.
2-kV port-to-port isolation.
High-retention USB connector.
Rugged metal case.
DIN rail or panel mount options included.
8-kV contact, 15 kV air ESD surge protection.
Wide temperature range (-40 to 80° C).
USB 2.0 and 1.1 compatible.
LEDs indicate power and port status.
Includes 2-meter USB cable.
USB-powered or externally powered.
Redundant power inputs (10- to 48-VDC) via terminal block or locking barrel jack.
Drivers for Windows 2000 and up (including 64 bit variants).
RS-232, RS-422, RS-485 two-wire interfaces.
Modbus support.

This industrial-grade, isolated USB-to-serial converter enables any host USB port to provide multiple RS-232, RS-422 or RS-485 two-wire serial interfaces. It supports USB 2.0 high-speed data rates of 480 Mbps. The upstream and downstream sections are isolated to 2000 volts. Industrial features such as a rugged metal case, versatile mounting options, high ESD protection, wide temperature ranges, and high-retention USB connectors set this device apart from other USB to serial converters.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

General
Approvals	UL: Class 1, Div 2; Emissions: EN61000-6-2:2005 Heavy industrial; EN61000-4-2:2005 (ESD) ±8 kV contact, ±15 kV air; EN61000-4-3:2006 (RI) 10 Vm. 80 to 1000 3 V/M. 1.3 to 2.7 GHz; EN61000-4-4:2004 (EFT Burst) ±2 kV DC ports; ±1kV signal ports; EN61000-4-5:2005 (Surge) ±1 kV signal ports; EN61000-4-6:2006 (CI) 10 VRMS, 0.15 to 80 MHz; EN61000-4-8:2001 (Magnetic) 10 A/m, 50 Hz and 60 Hz; Shock: IEC60068-2-27 50G peak, 11 ms, 3 axis; Br> Vibration: IEC60068-2-6; 10 to 500 Hz, 4G, 3 axis: Freefall (drop): IEC60068-2-32; 10 total drops from sides, corner and edges; 1 M
Baud Rate	(kbps) 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600
Connectors	Upstream: (1) USB Type B high-retention (15 Newton/3.4 lb. withdrawal force); Serial Port: (2) DB9 connectors; Power: (1) 3-position removable terminal block, (1) threaded barrel jack with center positive (+)
Data Bits	5, 6, 7, 8
Dimensions	1.4"H x 5.4"W x 3.5"D (3.5 x 13.8 x 8.8 cm)
Driver	WHQL
Indicators	(4) Communication LEDs: P1 TX, P1 RX, P2 TX, P2 RX blink green when data is present; (1) Power LED (continuously ON if powered via an external power supply or terminal block)
Isolation	2 kV port-to-port
Mounting Type	Enclosure: DIN adapter, panel mounting with mounting kit
Operating System Support	Server 2008 R2, Windows 7, Windows 7 x64, Windows Server 2008, Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003, Windows Server 2003 x64, WIndows XP, Windows XP x64, Windows 2000
Parity	None, Odd, Even

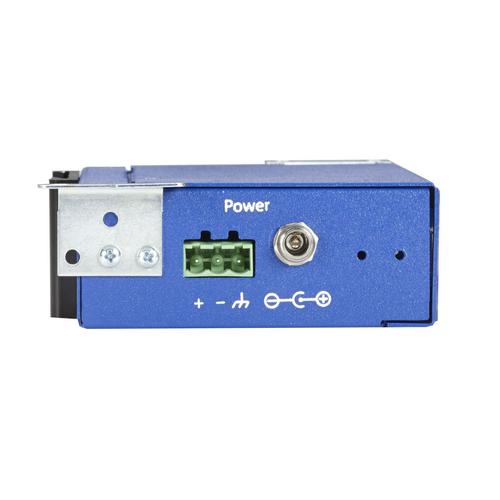

Power	10-VDC to 48-VDC power supply (not included); (1) 3-position removable terminal block, (1) threaded barrel jack with center positive (+)
Protocol	USB 1.1 and 2.0
RS-232 Lines Supported	TD, RD, RTS, CTS, DTR, DSR, DCD, GND
RS-422/485 HS Loopback	Loopback RTS to CTS, DTR to DSR/DCD
RS-485 Lines (2-Wire)	DATA A(-), DATA B(+), GND
Serial Modes	RS-232 (DTE), RS-485 (2-wire), RS-485 (4-wire)
Speed	1.5 Mbps, 12 Mbps, 480 Mbps
Stop Bit(s)	0, 1, 2
User Controls	(1) Quad DIP switch for user hardware selection per port
Weight	0.88 lb. (0.40 kg)

Product Details

General
Approvals	UL: Class 1, Div 2; Emissions: EN61000-6-2:2005 Heavy industrial; EN61000-4-2:2005 (ESD) ±8 kV contact, ±15 kV air; EN61000-4-3:2006 (RI) 10 Vm. 80 to 1000 3 V/M. 1.3 to 2.7 GHz; EN61000-4-4:2004 (EFT Burst) ±2 kV DC ports; ±1kV signal ports; EN61000-4-5:2005 (Surge) ±1 kV signal ports; EN61000-4-6:2006 (CI) 10 VRMS, 0.15 to 80 MHz; EN61000-4-8:2001 (Magnetic) 10 A/m, 50 Hz and 60 Hz; Shock: IEC60068-2-27 50G peak, 11 ms, 3 axis; Br> Vibration: IEC60068-2-6; 10 to 500 Hz, 4G, 3 axis: Freefall (drop): IEC60068-2-32; 10 total drops from sides, corner and edges; 1 M
Baud Rate	(kbps) 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600
Connectors	Upstream: (1) USB Type B high-retention (15 Newton/3.4 lb. withdrawal force); Serial Port: (2) DB9 connectors; Power: (1) 3-position removable terminal block, (1) threaded barrel jack with center positive (+)
Data Bits	5, 6, 7, 8
Dimensions	1.4"H x 5.4"W x 3.5"D (3.5 x 13.8 x 8.8 cm)
Driver	WHQL
Indicators	(4) Communication LEDs: P1 TX, P1 RX, P2 TX, P2 RX blink green when data is present; (1) Power LED (continuously ON if powered via an external power supply or terminal block)
Isolation	2 kV port-to-port
Mounting Type	Enclosure: DIN adapter, panel mounting with mounting kit
Operating System Support	Server 2008 R2, Windows 7, Windows 7 x64, Windows Server 2008, Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003, Windows Server 2003 x64, WIndows XP, Windows XP x64, Windows 2000
Parity	None, Odd, Even
Power	10-VDC to 48-VDC power supply (not included); (1) 3-position removable terminal block, (1) threaded barrel jack with center positive (+)
Protocol	USB 1.1 and 2.0
RS-232 Lines Supported	TD, RD, RTS, CTS, DTR, DSR, DCD, GND
RS-422/485 HS Loopback	Loopback RTS to CTS, DTR to DSR/DCD
RS-485 Lines (2-Wire)	DATA A(-), DATA B(+), GND
Serial Modes	RS-232 (DTE), RS-485 (2-wire), RS-485 (4-wire)
Speed	1.5 Mbps, 12 Mbps, 480 Mbps
Stop Bit(s)	0, 1, 2
User Controls	(1) Quad DIP switch for user hardware selection per port
Weight	0.88 lb. (0.40 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
