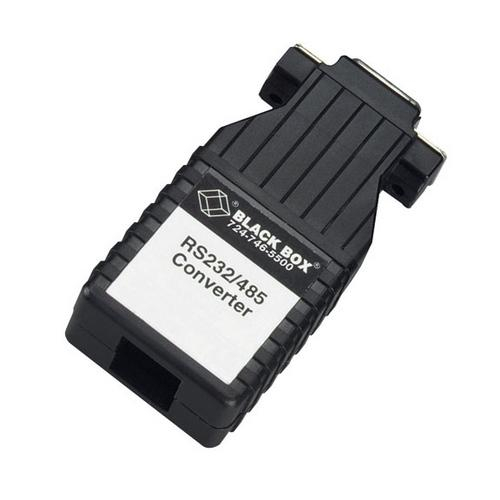

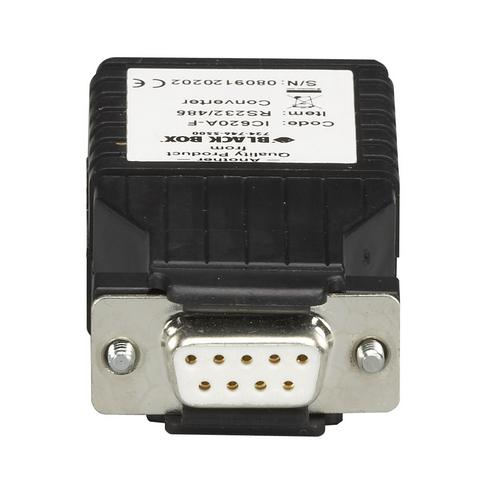

BlackBox, IC620A-F, Async RS-232 to RS485 Interface Converter DB9 to Terminal Block

Features:

Transmit data up to 115 kbps or at distancesup to 4000 ft.
Operates in point to point or multipoint applications
Operates 2-wire half-duplex or 4-wire half- or full-duplex.
async (data leads) only.
Up to 32 RS485 devices can be attached to create a large multi-drop network
The RS485 driver is automatically enabled during each spacing state on the RS232 side.
Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
You can also "fine tune" impedance and "echo" characteristics for your individual application.
For configuration, the converter features two internal 4-position DIP switches.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Cable Required	Unconditioned twisted pair between converters: 2 or 4 wires (1 or 2 pairs)
CE Approval	Yes
Data Format	Transparent
Distance (Maximum)	Between RS-232 device and converter: 50 ft. (15.2 m), but converters not directly attached will be underpowered; Between non-RS-232 device and converter: 9 mi. (14.4 km)
Enclosure	ABS plastic
Environmental Operation	Temperature: 32 to 122° F (0 to 50° C);
Hardware Flow Control Signaling	Raise DSR in response to DTR; raise CD in response to carrier; raise CTS in response to RTS (after no delay or 8-ms delay, user-selectable); carrier is either constantly on or controlled by RTS, user-selectable
Humidity	5 to 95% noncondensing
Interface	To devices: RS-232: Pinned according to TIA-574 on DB9, DCE; To line: 2- or 4-wire RS-485
Operation	Transparent to 2-wire half-duplex or 4-wire full- or half-duplex
Power	From the RS-232 data and control signals
Protocol	Asynchronous
Size	2.5"H x 1.2"W x 0.8"D (6.4 x 3 x 2 cm)
Software Flow Control	Transparent
Speed	Transparent to 115.2 kbps
Surge Protection	Internal Silicon Avalance Diodes dissipate surges up to 600 watts per wire within 1 ms
User Controls	(2) internal 4-position DIP switches for configuration

General
Cable Required	Unconditioned twisted pair between converters: 2 or 4 wires (1 or 2 pairs)
CE Approval	Yes
Data Format	Transparent
Distance (Maximum)	Between RS-232 device and converter: 50 ft. (15.2 m), but converters not directly attached will be underpowered; Between non-RS-232 device and converter: 9 mi. (14.4 km)
Enclosure	ABS plastic
Environmental Operation	Temperature: 32 to 122° F (0 to 50° C);
Hardware Flow Control Signaling	Raise DSR in response to DTR; raise CD in response to carrier; raise CTS in response to RTS (after no delay or 8-ms delay, user-selectable); carrier is either constantly on or controlled by RTS, user-selectable
Humidity	5 to 95% noncondensing
Interface	To devices: RS-232: Pinned according to TIA-574 on DB9, DCE; To line: 2- or 4-wire RS-485
Operation	Transparent to 2-wire half-duplex or 4-wire full- or half-duplex
Power	From the RS-232 data and control signals
Protocol	Asynchronous
Size	2.5"H x 1.2"W x 0.8"D (6.4 x 3 x 2 cm)
Software Flow Control	Transparent
Speed	Transparent to 115.2 kbps
Surge Protection	Internal Silicon Avalance Diodes dissipate surges up to 600 watts per wire within 1 ms
User Controls	(2) internal 4-position DIP switches for configuration

Note: Please read description carefully. Do not base your order on the picture presented.
