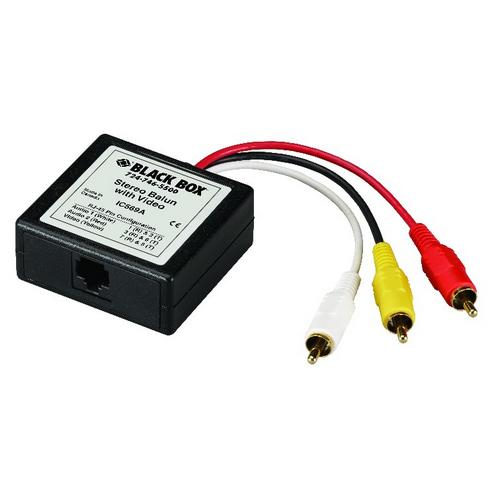

IC569A, Composite Video/Stereo Balun

Features:

Send Composite video signals up to 2200 feet (670.5 m).
Send audio signals up to 3250 feet (990.6 m).
Features a full 20 Hz to 20 kHz audio bandwidth for hi-fidelity systems.
Use with DVD players, VCRs, satellite receivers, laptops, projectors, cameras, video switches, digital video servers, and more.
Designed for point-to-point systems.
Built-in color-coded cable leads make installation easier.
Send Composite video and audio signals over inexpensive CAT5 UTP cable.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Compliance
cUL	0
FCC
UL	0
General
Audio Bandwidth	20 Hz to 20 Khz
Cable	UTP: 24 gauge or lower, solid copper twisted pair with Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pF/ft., Attenuation: 6.6 dB/10000 ft. at 1 MHz
Connectors	Video: (1) RCA M; Stereo audio: (2) RCA M; CAT5: (1) RJ-45
Dimensions	1"H x 2.4"W x 2.3"D (2.5 x 6.1 x 5.8 cm)
Distance (Maximum)	Over CAT5 UTP: Composite Video: 2200 ft. (670.5 m); Audio: 3250 ft. (990 m)
Impedance	Video: 75 ohms; Audio: 600 ohms
Input (Maximum)	Video and Audio: 1.1 Vp-p
Insertion Loss	Video: < 2 dB per pair over the frequency range from DC to 6 MHz; Audio: < 2 dB per pair over the frequency range
Return Loss	Video: > 15 dB over the frequency range
Video Bandwidth	DC to 6 MHz
Weight	0.2 lb. (0.1 kg)

Compliance
cUL	0
FCC
UL	0
General
Audio Bandwidth	20 Hz to 20 Khz
Cable	UTP: 24 gauge or lower, solid copper twisted pair with Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pF/ft., Attenuation: 6.6 dB/10000 ft. at 1 MHz
Connectors	Video: (1) RCA M; Stereo audio: (2) RCA M; CAT5: (1) RJ-45
Dimensions	1"H x 2.4"W x 2.3"D (2.5 x 6.1 x 5.8 cm)
Distance (Maximum)	Over CAT5 UTP: Composite Video: 2200 ft. (670.5 m); Audio: 3250 ft. (990 m)
Impedance	Video: 75 ohms; Audio: 600 ohms
Input (Maximum)	Video and Audio: 1.1 Vp-p
Insertion Loss	Video: < 2 dB per pair over the frequency range from DC to 6 MHz; Audio: < 2 dB per pair over the frequency range
Return Loss	Video: > 15 dB over the frequency range
Video Bandwidth	DC to 6 MHz
Weight	0.2 lb. (0.1 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
