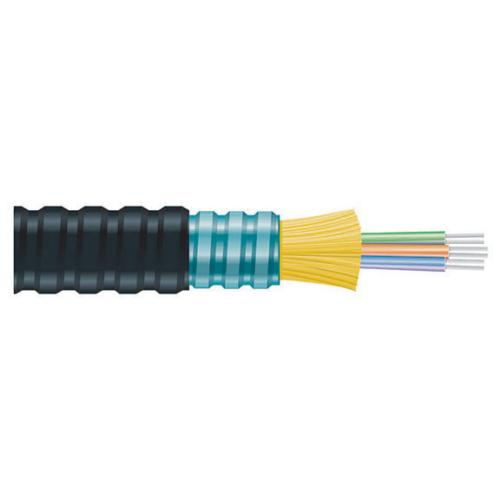

BlackBox FOBC35-IOASM-BK-06F-500 OS2 9/125 Fiber Optic Cable, 500 Ft

  • Brand BlackBox
  • Part # FOBC35-IOASM-BK-06F-500
  • Model # OS2 9/125
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Black Box, FOBC35-IOASM-BK-06F-500, OS2 9/125 Singlemode Bulk Fiber Optic Distribution Cable, Indoor/Outdoor, Interlocking Armored, Tight-Buffered, OFCP Plenum, 6-Strand, Black, 500 Ft

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ListingsTIA 569; GR-409 CORE Issue II weatherized cable; GR-20 water penetration; ICEA-S-104; ITU G.657.A1; NFPA 2 62 (OFCP); RoHS
JacketOFCP
Cladding125 microns
Core Size9 microns
Diameter (Nominal)0.46" (11.8 mm)
TemperatureOperating/Installation Temperature: 32 to 158° F (0 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFCP
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count6 fiber
Glass TypeOS2 Single-mode
SpaceIndoor/Outdoor Interlocking Armored
ColorBlack
Weight82 lbs./1000 ft. (122 kg/km)
Attenuation0.5 dB/km at 1300 nm; 0.5 dB/km at 1550 nm
DistanceGigabit Ethernet: 5000 m at 1300 nm; 10-GbE: 10,000 m at 1300 nm
Bend RadiusInstallation: 7.0" (17.7 cm); Operating: 4.8" (12.2 cm)
EMBNA
Overfill Launch Bandwidth (Min.)NA
TensionInstallation: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Product Details
ListingsTIA 569; GR-409 CORE Issue II weatherized cable; GR-20 water penetration; ICEA-S-104; ITU G.657.A1; NFPA 2 62 (OFCP); RoHS
JacketOFCP
Cladding125 microns
Core Size9 microns
Diameter (Nominal)0.46" (11.8 mm)
TemperatureOperating/Installation Temperature: 32 to 158° F (0 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFCP
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count6 fiber
Glass TypeOS2 Single-mode
SpaceIndoor/Outdoor Interlocking Armored
ColorBlack
Weight82 lbs./1000 ft. (122 kg/km)
Attenuation0.5 dB/km at 1300 nm; 0.5 dB/km at 1550 nm
DistanceGigabit Ethernet: 5000 m at 1300 nm; 10-GbE: 10,000 m at 1300 nm
Bend RadiusInstallation: 7.0" (17.7 cm); Operating: 4.8" (12.2 cm)
EMBNA
Overfill Launch Bandwidth (Min.)NA
TensionInstallation: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
