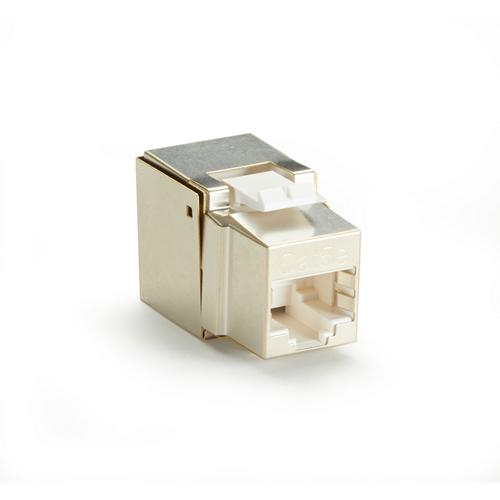

BlackBox FMS210 Cat5e Shielded Jack With Universal Wiring

  • Brand BlackBox
  • Part # FMS210
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

FMS210 - Cat5e Shielded Jack With Universal Wiring

Features:

  • Fully-shielded housing for better EMI protection.
  • CAT5e channel compliant.

DETAILS

  • Unique wire management stuffer cap separates pairs, prevents crossed pairs, and reduces crosstalk.
  • Features inversely oriented, right-angled IDC contacts to prevent NEXT.
  • Has a quick grounding mechanism.
  • Use with a 110-punchdown termination tool (FT025A).

This product includes:

  • Jack
  • Stuffer cap
  • Shielding cover
  • User manual
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
MaterialOverall Housing: Copper C2680 (0.25-mm thick) plated with 0.76-micron Nickel; Housing: High-impact Acrylonitrile Styrene (ABS Resin) UL 94 V-O rated; Jack Contacts: C5210R-H Phospher Bronze flat wire, plated with 50-um Gold over 70-um Nickel; IDC Contacts: Phosper bronze plated with Tin and Nickel underplating; IDC Block: High-impact polcarbonate (PC Resin) UL 94 V-O rated
Cable Diameter0.197" (5-mm) to 0.354" (9-mm)
ConnectorsRJ-45 female
PortKeystone
Rear ContactsIDC 110
WiringUniversal (T568A and T568B)
Cable Diameter0.197" (5-mm) to 0.354" (9-mm)
Conductor DiameterSolid: 22 AWG to 26 AWG; Stranded: 24 AWG
Insulation Diameters0.8-mm to 1.0-mm
Product Details
MaterialOverall Housing: Copper C2680 (0.25-mm thick) plated with 0.76-micron Nickel; Housing: High-impact Acrylonitrile Styrene (ABS Resin) UL 94 V-O rated; Jack Contacts: C5210R-H Phospher Bronze flat wire, plated with 50-um Gold over 70-um Nickel; IDC Contacts: Phosper bronze plated with Tin and Nickel underplating; IDC Block: High-impact polcarbonate (PC Resin) UL 94 V-O rated
Cable Diameter0.197" (5-mm) to 0.354" (9-mm)
ConnectorsRJ-45 female
PortKeystone
Rear ContactsIDC 110
WiringUniversal (T568A and T568B)
Cable Diameter0.197" (5-mm) to 0.354" (9-mm)
Conductor DiameterSolid: 22 AWG to 26 AWG; Stranded: 24 AWG
Insulation Diameters0.8-mm to 1.0-mm
