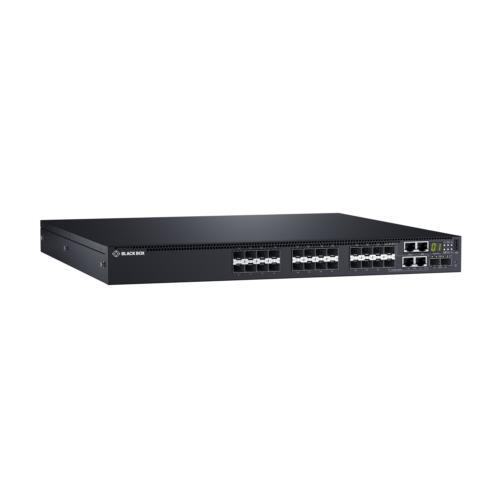

Buy BlackBox EMS1G24F, Emerald Fiber Network Switch, 1G, 24-Port

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features with all optional accessories:

24 SFP 1,000-Mb SFP ports
Two integrated 10-GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap power supply (200-W AC)
Dual hot-swap power supply bays (optional power supply available)

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

CE Approval

Yes

Compliance

Safety
UL/CSA/EN 60950-1 second edition
Emissions
FCC CFR 47 Part 15, Subpart B:2011, Class A
Immunity
EN 300 386 V1.4.1:2008 EMC for Network Equipment
EN 55024: 1998 + A1: 2001 + A2: 2003
EN 61000-3-2: Harmonic Current Emissions
EN 61000-3-3: Voltage Fluctuations and Flicker
EN 61000-4-2: ESD
EN 61000-4-3: Radiated Immunity
EN 61000-4-4: EFT
EN 61000-4-5: Surge
EN 61000-4-6: Low Frequency Conducted Immunity

Connectors

(24) 1000-SX or 1000-LX SFP GbE ports;
(2) SFP+ ports, 2x GbE combo media ports;
(1) port RS232 console (RJ45);
(1) port 10/100/1000BASE-T management;
(1) USB 2.0 type A storage port;
(2) rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex)

Management

Network Management
SNMPv1/2/3
SSHv2
FTP, TFTP, SCP
Syslog
Port Mirroring
RADIUS
802.1X
Support Assist (Phone Home)
sFlow

Operating Humidity

5 to 95% (RH), non-condensing

Operating Temperature

32° to 113°F (0° to 45°C)

Performance

MAC addresses:up to 80k;
IPv4 routes:16K;
IPv6 routes:8K (shared CAM space with IPv4);
Switch fabric capacity:212Gbps (full-duplex);
Forwarding capacity:158 Mpps;
Link aggregation:16 links per group, 128 groups per stack;
Queues per port:8 queues;
Layer 2 VLANs:4K;
MSTP:64 instances;
VRF-lite:511 instances;
Line-rate Layer 2 switching:all protocols, including IPv4 and IPv6;
Line-rate Layer 3 routing:IPv4 and IPv6;
IPv4 host table size:up to 22k max;
IPv6 host table size16K;
IPv4 Multicast table size8K;
LAG load balancing:based on Layer 2, IPv4 or IPv6 headers;
Latency3.7 μsec for 1000BASE-T, ~1.8 μsec for SFP+;
Packet buffer memory:4MB;
CPU memory:1GB

Power

100–240 VAC 50/60 Hz 200 W hot swappable power supplies (one supply included)

QoS

Access Control Lists
Prefix List
Route-Map
Rate Shaping (Egress)
Rate Policing (Ingress)
Scheduling Algorithms

Round Robin
Weighted Round Robin
Deficit Round Robin
Strict Priority

Weighted Random Early Detect

Safety

UL/CSA 60950-1, Second Edition
EN 60950-1, Second Edition
IEC 60950-1, Second Edition Including All National Deviations and Group Differences
EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User's Guide
EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fiber Communication Systems
FDA Regulation 21 CFR 1040.10 and 1040.11

Storage temperature

–40° to 149°F (–40° to 65°C)

Dimensions

1.7" H x 17.1" W x 16" D (43.5 x 434 x 407mm)

Weight

13.2lb. (6 kg)

Power

200W

Power Supply

90–264 VAC 50/60 Hz; one supply included, optional redundant power supplies

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

CE Approval

Yes

Compliance

Connectors

Management

Network Management
SNMPv1/2/3
SSHv2
FTP, TFTP, SCP
Syslog
Port Mirroring
RADIUS
802.1X
Support Assist (Phone Home)
sFlow

Operating Humidity

5 to 95% (RH), non-condensing

Operating Temperature

32° to 113°F (0° to 45°C)

Performance

Power

100–240 VAC 50/60 Hz 200 W hot swappable power supplies (one supply included)

QoS

Access Control Lists
Prefix List
Route-Map
Rate Shaping (Egress)
Rate Policing (Ingress)
Scheduling Algorithms

Round Robin
Weighted Round Robin
Deficit Round Robin
Strict Priority

Weighted Random Early Detect

Safety

Storage temperature

–40° to 149°F (–40° to 65°C)

Dimensions

1.7" H x 17.1" W x 16" D (43.5 x 434 x 407mm)

Weight

13.2lb. (6 kg)

Power

200W

Power Supply

90–264 VAC 50/60 Hz; one supply included, optional redundant power supplies

Note

Note: Please read description carefully. Do not base your order on the picture presented.
