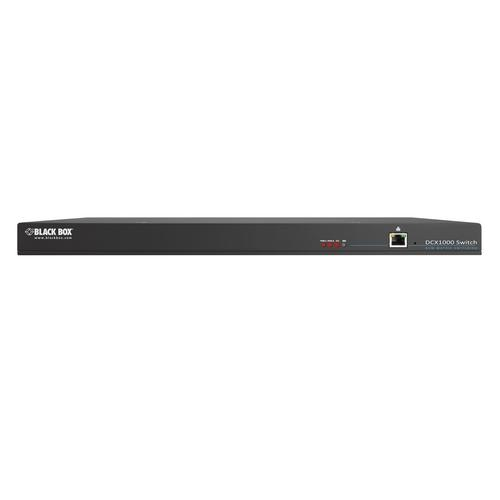

Buy BlackBox DCX1000, DCX Digital KVM Matrix Switch, 10 Port

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

10 configurable user/computer port digital matrix switch.
KVM extension distance of up to 32 feet (10 m) from server access modules (SAM) to switch; up to 164 feet (50 m) from switch to remote (must use shielded CAT6A or CAT7 cable).
Delivers lossless HD video in real-time.
USB for keyboard, mouse and touchscreen.
Provides Zero U’ DVI, VGA and DisplayPort Server Access Modules
Multi-view thumbnail on-screen display so that all systems can be seen on the screen at the same time.
Supports multiple users on Windows, MAC, and Linux-based computer systems.
Designed for small and medium sized applications.
Migrate from analog to digital KVM.
Supports server access modules (SAMs) and receivers using shielded CAT6 cable.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Approvals	TUV, CE, RoHS2, FCC
Connectors	Front: (1) 10/100/1000 RJ-45 network; Rear: (10) RJ-45 ports; (1) DB9 M; (2) Hirose 3-position locking power connector
Dimensions	1.25"H x 17.1"W x 6.25"D (3.17 x 43.33 x 15.87 cm)
Distance	Between SAM and switch: 32 feet (10 m) maximum; Between switch and remote unit: 164 feet (50 m) maximum
Power	External in-line power supply (replacement part number PS655)
Resolution	1920 x 1200 at 60 Hz
Weight	3.5 lb. (1.59 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

General
Approvals	TUV, CE, RoHS2, FCC
Connectors	Front: (1) 10/100/1000 RJ-45 network; Rear: (10) RJ-45 ports; (1) DB9 M; (2) Hirose 3-position locking power connector
Dimensions	1.25"H x 17.1"W x 6.25"D (3.17 x 43.33 x 15.87 cm)
Distance	Between SAM and switch: 32 feet (10 m) maximum; Between switch and remote unit: 164 feet (50 m) maximum
Power	External in-line power supply (replacement part number PS655)
Resolution	1920 x 1200 at 60 Hz
Weight	3.5 lb. (1.59 kg)
