Buy BlackBox AVSC-SDI-HDMI, SDI to HDMI Scaler with Audio

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Type:: Type: SDI to HDMI

Converts and scales SDI signals to be compatible with HDMI displays and analog or digital audio.

Features:

Compatible with SDI professional video source equipment and HDMI monitors.
Plug-and-play, works right out of the box.
Locking connectors provide secure connections.
Locking connectors provide secure connections.
Easy to install, no software required.

The SDI to HDMI Scaler and Converter (AVSC-SDI-HDMI) converts digital 3D/HD/SD-SDI to HDMI digital video with analog stereo audio. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels of audio support, 7.1 channel or 5.1 channel audio becomes available. The scaler also provides two low-jitter and reclocked outputs for daisychain or multiple monitors.Use the scaler in surveillance, broadcast (for example, for concerts or entertainment venues), projected presentation systems, and signage applications.

This product includes:

SDI to HDMI Scaler and Converter
5-VDC, 2-A power supply unit
IR Remote control
User's Manual
Installation software CD (CD included; software can also be downloaded from blackbox.com)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Approvals	CE, FCC
Audio Support	Stereo PCM (48 kHz only up to 8 channel)
Enclosure	Metal wall mounting case with screws
ESD Protection	Human body model: ±19 kV (air-gap discharge) and ±12 kV (contact discharge); Core chipset: ±2 kV
Firmware Update	Output video: 165 MHz; Input video: 2.970 Gbps, 2.970/1.001 Gbps
Input Video Support	3G: 1080p @50/59, 94/60 Hz (4:2:2); HD: 720p @50/59, 94/60 Hz, 1080i @50/59, 94/60 Hz, 1080p @24/30 Hz; SD: NTSC @59.94 Hz, PAL @50 Hz
SDI Standards	SD-SDI, HD-SDI, and 3G-SDI

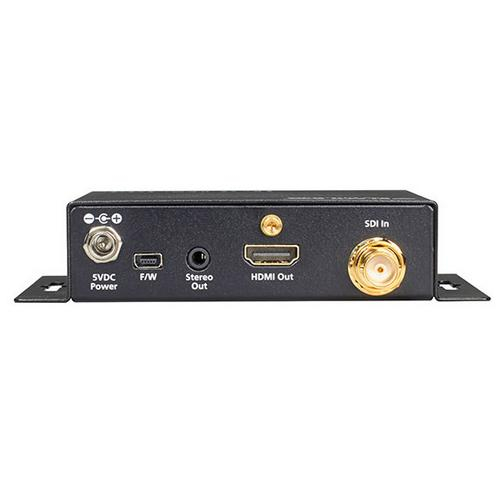

Connectors	Input: SDI: (1) 3G 75-ohm interlocked BNC socket; Output: (1) HDMI Type A (19-pin female), (1) BNC (SDI Loopout); (1) USB mini for firmware update; (1) 3.5 mm for analog audio
Indicators	(1) Red LED for Power, (1) Green LED for Video Signal
Environment	Operating Temperature: 32 to 104°F (0 to 40°C); Storage Temperature: -4 to +140°F (-20 to +60°C); Humidity: 20–90%, noncondensing
Power	Power supply: 5 VDC, 2 A; Consumption 5 Watts (typical)
Dimensions	1.1"H x 3.6"W x 3.3"D (2.8 x 9.2 x 8.3 cm)
Weight	9.1 oz. (260 g)

Product Details

Approvals	CE, FCC
Audio Support	Stereo PCM (48 kHz only up to 8 channel)
Enclosure	Metal wall mounting case with screws
ESD Protection	Human body model: ±19 kV (air-gap discharge) and ±12 kV (contact discharge); Core chipset: ±2 kV
Firmware Update	Output video: 165 MHz; Input video: 2.970 Gbps, 2.970/1.001 Gbps
Input Video Support	3G: 1080p @50/59, 94/60 Hz (4:2:2); HD: 720p @50/59, 94/60 Hz, 1080i @50/59, 94/60 Hz, 1080p @24/30 Hz; SD: NTSC @59.94 Hz, PAL @50 Hz
SDI Standards	SD-SDI, HD-SDI, and 3G-SDI
Connectors	Input: SDI: (1) 3G 75-ohm interlocked BNC socket; Output: (1) HDMI Type A (19-pin female), (1) BNC (SDI Loopout); (1) USB mini for firmware update; (1) 3.5 mm for analog audio
Indicators	(1) Red LED for Power, (1) Green LED for Video Signal
Environment	Operating Temperature: 32 to 104°F (0 to 40°C); Storage Temperature: -4 to +140°F (-20 to +60°C); Humidity: 20–90%, noncondensing
Power	Power supply: 5 VDC, 2 A; Consumption 5 Watts (typical)
Dimensions	1.1"H x 3.6"W x 3.3"D (2.8 x 9.2 x 8.3 cm)
Weight	9.1 oz. (260 g)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
