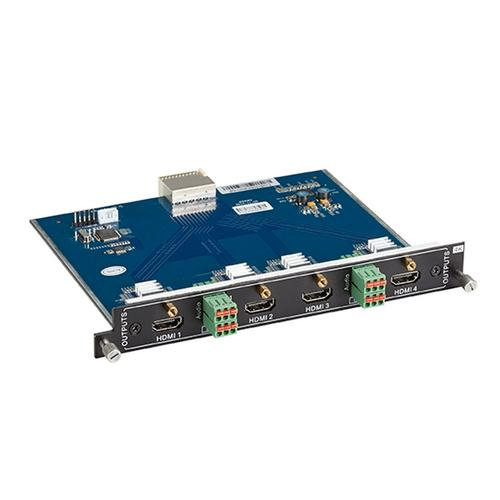

Buy BlackBox AVS-4O-HDM, Output Card - 4K, HDMI, Analog Audio

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Hot-swappable output card for Modular Video Matrix Switcher.

Features:

Supports (4) HDMI outputs with up to 4K (UHD) resolution and embedded audio, plus optional external analog audio.
The Modular Video Matrix Switcher Output Card - 4K, HDMI, Analog Audio is designed for use with the AVS800 or AVS1600 Modular Video Matrix Switcher and allows you to customize the matrix based on your application needs.
Includes four audio de-embedded output.
Smart EDID management.
HDCP compatible.
Fully compatible with DVI.
Hot-swappable, user-friendly.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	CE
Connectors	(4) HDMI F for output (4) 3-pin terminal blocks for audio
Environmental	Operating Temperature: 32°F to 122°F (0°C to 50°C); Operating Humidity: 90% non-condensing
Power	Powered from Modular Video Matrix Switcher
Dimensions	1"H x 7.7"W x 6.6"D (2.5 x 19.5 x 16.7 cm)
Weight	0.4 lb. (0.2 kg)

Approvals	CE
Connectors	(4) HDMI F for output (4) 3-pin terminal blocks for audio
Environmental	Operating Temperature: 32°F to 122°F (0°C to 50°C); Operating Humidity: 90% non-condensing
Power	Powered from Modular Video Matrix Switcher
Dimensions	1"H x 7.7"W x 6.6"D (2.5 x 19.5 x 16.7 cm)
Weight	0.4 lb. (0.2 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
