Includes:
- DKM FX Matrix KVM Switch
- (2) US power cords
- (2) control cards
- (2) power supplies
- (1) serial control cable
- Mounting accessories
- User manual
Features
- Designed for mission-critical and enterprise operations.
- Provides instant delay-free switching.
- Very flexible. Any port can be an input or an output.
- Dynamic. Mix and match fiber and copper ports.
- Supports KVM, USB HID/2.0/3.0/ SDI (SD/HD/3G), DVI, HDMI, DisplayPort 1.1 (30 Hz) and 1.2 (60 Hz), analog/digital audio, and RS-232/RS-422.
- Matrix grid enables multi-matrix connections through grid lines.
- Java-based software for configuration, operation and maintenance.

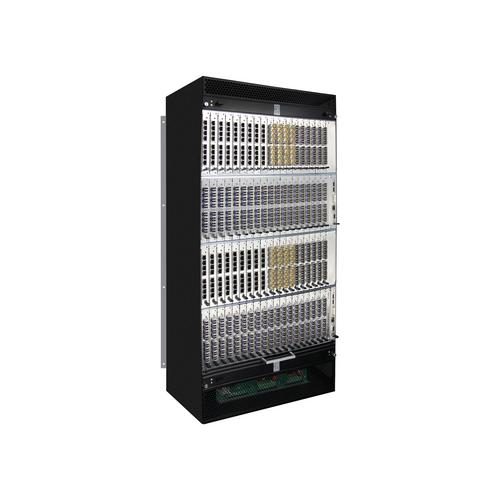

The DKM FX KVM Modular Matrix Switch is a high-performance enterprise routing system with 576 I/O ports in a single 25U frame. It provides complete in-band signal distribution of video, audio and data over CATx and fiber. High-definition video signals, including DVI, HDMI, DisplayPort, VGA, HD-SDI and 3G-SDI, are supported as well as analog and digital audio formats and USB HID/2.0/3.0 data signals. The offers tremendous scalability with cost effective features supporting Ultra High Definition (UHD) video up to 4K at 4096 x 2160 resolutions.
The switch is very flexible. Each port can be user configured as an input or an output scalable from one CPU to multiple workstations or with multiple CPUs managed by a single workstation console. You can also mix and match fiber and CATx ports.
Mission critical
The switch is especially ideal for enterprise networks and mission-critical control/command rooms, as well as video production or broadcasting applications where HD video is everything. Many users can connect their KVM consoles to various multimedia sces (computer, CPUs, servers, etc.), either locally or in a distant room or office via the switch.
Versatile control
The switch can be operated via a keyboard (in-band), OSD (On Screen Display) for configuration and operation (in-band), TCP/IP, Ethernet interface for operation (API) and serial interface for operation (API). You can also switch from a remote site via a DKM or DKM FX Extender. Or control it via a Creston® or AMX® keypad controller.
Switches within milliseconds
Users can switch seamlessly and almost instantaneously. Similar IP-based types of solutions can take as long as 15 seconds to switch.
Reduces downtime
Modular in design, the DKM FX enables you to change peripheral and CPU connections on the fly and ensure zero downtime. Add or remove cards and reroute inputs and outputs while switch is up and running.
Designed for easy expansion
Add connections and change inputs/outputs as y enterprise needs evolve. You can also cascade multiple switch chassis if you exceed the number of available ports.
Signal repeater capabilities are built in
The switch supports fiber links up to 10 kilometers (6.2 mi) and CATx links up to 460 feet (140.2 m). For longer links, use it with DKM Extenders. Used midway between an extender transmitter and extender receiver, the switch works as a repeater, essentially doubling y distance-up to 40 kilometers (24.8 mi.) over fiber and 920 feet (282.8 m) over CATx.
