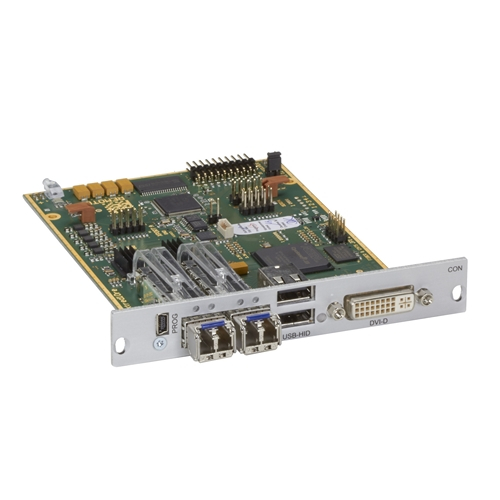

Black Box, ACX1MR-DHID-2S, DKM Modular Extender Interface Card, Redundant Single-Mode Fiber
DKM Modular Extender Interface Card, DVI-D & USB HID with Redundant Single-Mode Fiber. Receiver card for your DKM HD Video and Peripheral Matrix Switching System.
Quick Facts
- Part of the DKM HD Video and Peripheral Matrix Switching system of transmitter and receiver interface cards and housings.
- Receiver mainboard unit that can be installed in the ServSwitch DKM Modular Housing Chassis.
- Supports redundant fiber cable pathways.
Further Details
- Works over single- or multimode fiber cabling. Single-mode can go up to 10 km (6 miles) and multimode can transmit up to 1000 meters (3281 feet).
- Features two LC connectors for redundancy or toggling between switches.
- Supports DVI monitors and USB keyboards and mice.
- Use one receiver for each user within the DKM FX system.
- Get DVI-D video with resolutions up to 2048 x 1152 at 60 Hz.
- Occupies (1) slot of housing space.
- Compatible with the DKM FX Compact Extender.
The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
NOTE: Transmitters and receivers can be copper or fiber based.
