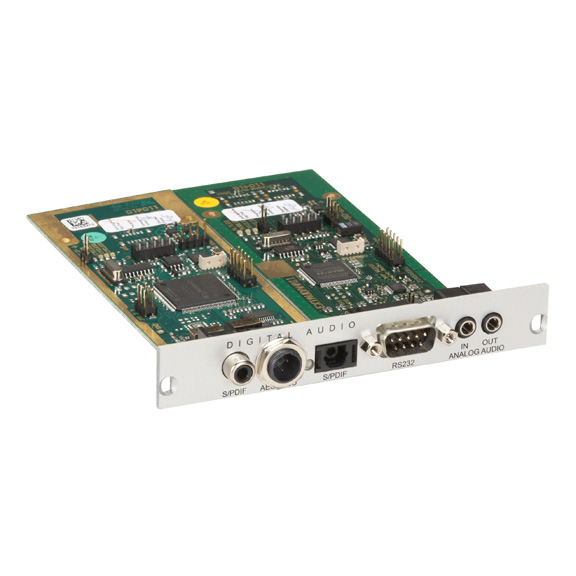

BlackBox, ACX1MR-ARD, DKM HD Video & Peripheral Matrix Switch Receiver Interface Card
DKM HD Video and Peripheral Matrix Switch Receiver Modular Interface Card, Expansion Interface Bidirectional Analog Audio plus RS-232 and Unidirectional Digital Audio. This daughter receiver interface card for the DKM extends bidirectional analog audio, RS-232, and unidirectional digital audio.
Quick Facts
- Part of the DKM HD Video and Peripheral Matrix Switching system of transmitter and receiver interface cards and housings.
- Works over CATx cabling, and multimode or single-mode fiber cabling.
- Supports S/PDIF (RCA), S/PDIF (TOSLINK), AES/EBU (mini XLR), 3.5 mm bidirectional audio, and RS-232 signals.
- Requires connection to main board.
Further Details
The DKM HD Video and Peripheral Matrix Switching System is comprised of modular mousing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
These new DKM components are part of a modular system. You will need to contact us to have them assembled to fit your application.
