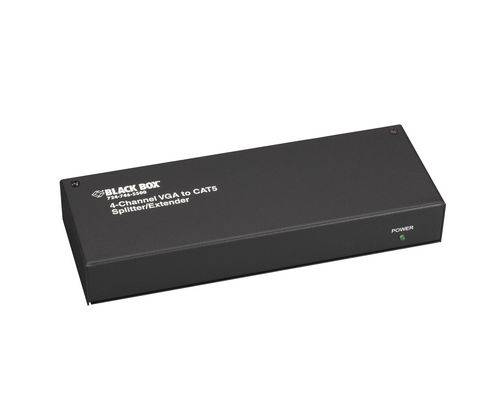

4-Channel Mini CAT5 VGA Splitter/Extender Transmitter

Quick Facts

A splitter/extender transmitter that sends VGA signals over CAT5 UTP to receivers attached to four monitors.
Eliminates the need for bulky VGA cables.
Extends video up to 500 feet of ordinary CAT5 cable.
Buffers and boosts signals for a clear video image.
For splitting signals for just two monitors, see our 2-channel model (AC600A).

Further Details

This product works with:

Mini CAT5 Splitter/Extender VGA Receiver (AC602A)
Mini CAT5 VGA Extender Receiver in Wallplate (AC504A-WP-R)
CAT5 100-MHz Solid Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Distance (Maximum)	500 ft. (152.4 m)
Resolution (Maximum)	1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
CE Approval	Yes
Connectors	Video input: (1) HD15 F, Local monitor: (1) HD15 F,Interconnect: (4) shielded RJ-45
Power	100-240 VAC, 50-60 Hz, autosensing
Size	1.2"H x 8.5"W x 3"D (3 x 21.6 x 7.6 cm)

Distance (Maximum)	500 ft. (152.4 m)
Resolution (Maximum)	1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
CE Approval	Yes
Connectors	Video input: (1) HD15 F, Local monitor: (1) HD15 F,Interconnect: (4) shielded RJ-45
Power	100-240 VAC, 50-60 Hz, autosensing
Size	1.2"H x 8.5"W x 3"D (3 x 21.6 x 7.6 cm)

Note: Please read description carefully. Do not base your order on the picture presented.
