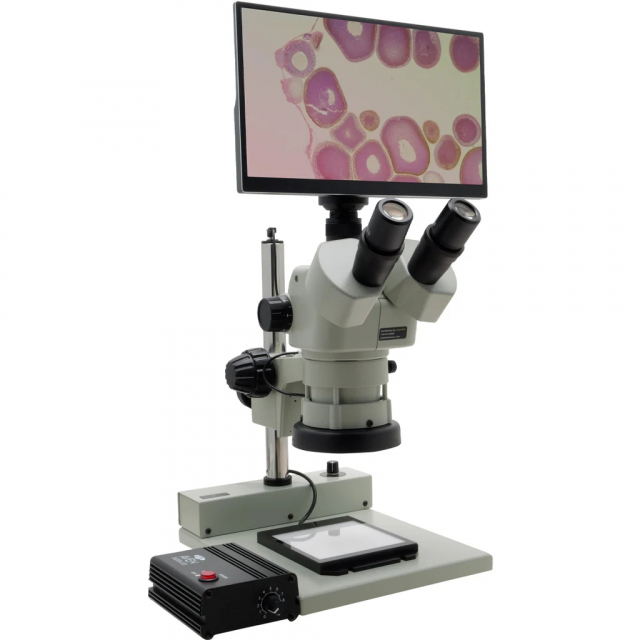

Aven, 26800B-725, SPZV-50 Stereo Zoom Trinocular 6.75x to 50x Microscope on Post Stand with Eidos Camera, Integrated LED Light, and LED Backlight
26800B-725 Includes Only:
- SPZV-50 Stereo Zoom Microscope:
- 1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube
- 2 ea. 10x Eyepieces
- 2 ea. Rubber Eyeguards
- 1 ea. Dust Cover
- 1 ea. Instruction Manual
- 26100-260: Mighty Cam Eidos:
- Mighty Cam Eidos
- Power Supply
- HDMI to HDMI Mini cable
- Wireless Mouse
- 16GB MicroSD Card
- USB-C to USB-A MicroSD Card Reader
- USB-C to USB-A Adapter for Wireless Mouse Transmitter
- USB-A Wireless Mouse Transmitter
- 26800B-575: Ergo Stand:
- 16 inch post
- Base
- Secure bolt
- Reversible plate

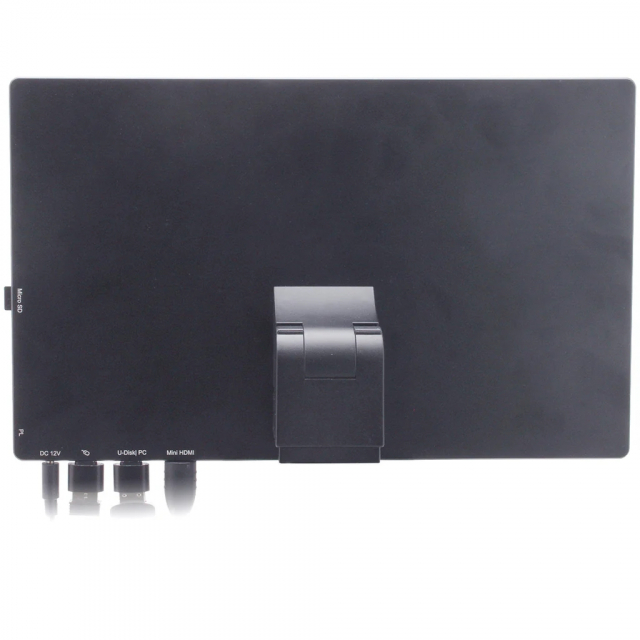

Features of Mighty Cam Eidos:
- Convenient 2-in-one camera and monitor system
- Simple cable management
- Crisp HD image
- Built in USB port for instant image/video capture
- USB output for connection to your PC
- Wireless mouse for access to settings menus
- Grid overlays
- Compare mode, freeze mode and mirror mode
- Alleviate the eye strain and neck fatigue associated with frequent microscope use

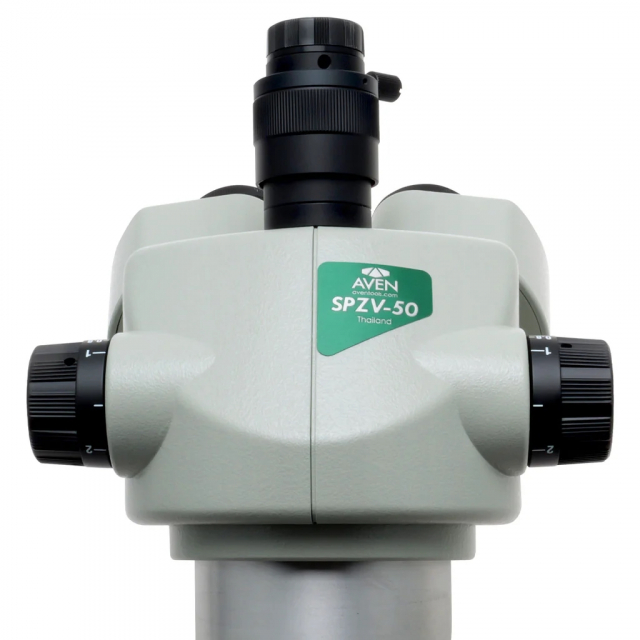

Features of SPZV-50 Microscope:
- View images through the eyepiece or a monitor simultaneously.
- Cli-ck stop zoom adjustment for accurate measuring
- Easy-adjust C-mount camera adapter for fine focusing
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") - the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
Features of PLED Stand:
- Light weight compact stand
- Ideal for examining small parts
- Comes with rack & pinion focus mount with course and fine adjustment knobs
- Built in 60 LED ring light with dimmer control
- Low power consumption
Aven's digital microscope solution featuring the SPZV-50 stereo zoom microscope and Mighty Cam Eidos system is built for comfort, image clarity, and ease of use in demanding inspection workflows. Designed to reduce physical strain and enhance productivity, this all-in-one setup integrates an 11.6" HD monitor, high-resolution camera, and ergonomic viewing for superior performance.

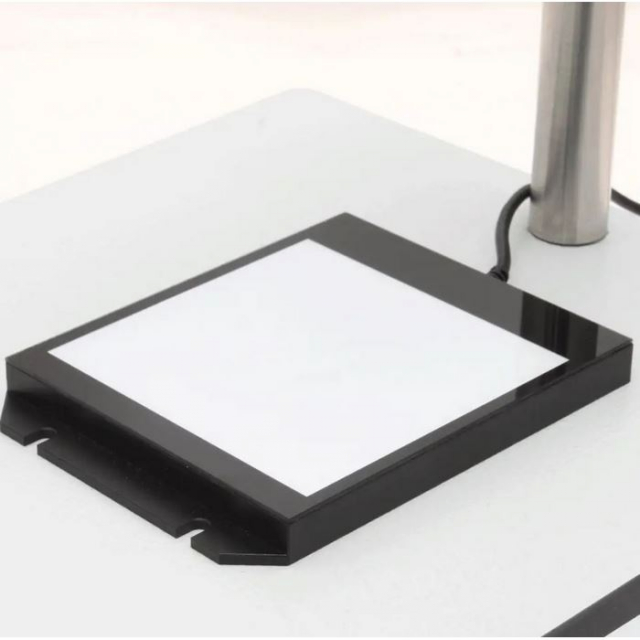

LED Backlight Illumination
LED backlight illumination delivers consistent, bright, and uniform lighting, enhancing contrast and revealing fine details in microscopy examinations. With minimal heat output, it reduces sample distortion and supports safer, extended observation periods. This makes it ideal for applications such as biological tissue analysis, semiconductor inspection, and surface defect detection.
