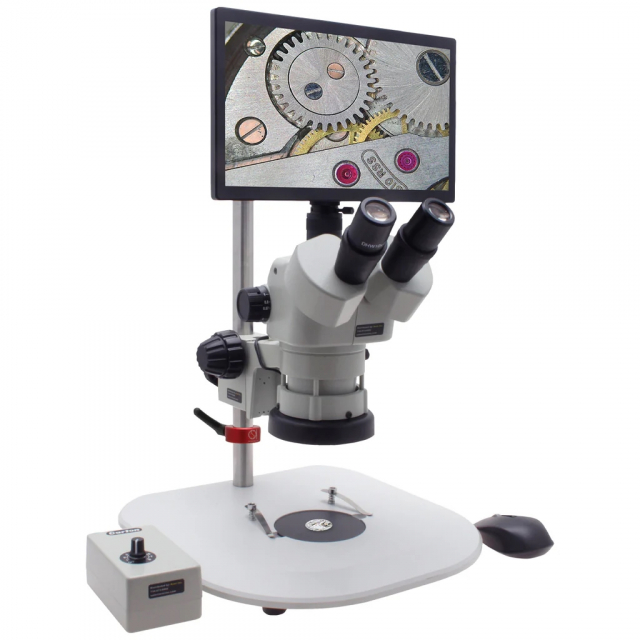

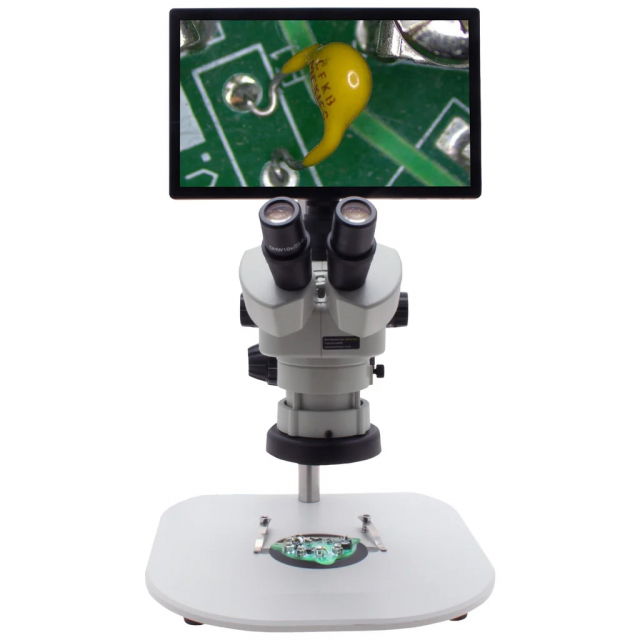

Aven, 26800B-723, SPZV-50 Stereo Zoom 6.7x - 50x Microscope with Mighty Cam Eidos Ergo Post Stand
26800B-723 Includes Only:
- SPZV-50 Stereo Zoom Microscope:
- 1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube
- 2 ea. 10x Eyepieces
- 2 ea. Rubber Eyeguards
- 1 ea. Dust Cover
- 1 ea. Instruction Manual
- 26100-260: Mighty Cam Eidos:
- Mighty Cam Eidos
- Power Supply
- HDMI to HDMI Mini cable
- Wireless Mouse
- 16GB MicroSD Card
- USB-C to USB-A MicroSD Card Reader
- USB-C to USB-A Adapter for Wireless Mouse Transmitter
- USB-A Wireless Mouse Transmitter
- 26200B-207: LED Ring Light Focus Mount:
- Integrated LED Ring Light with Focus Mount and Power Supply
- 26800B-575: Ergo Stand:
- 16 inch post
- Base
- Secure bolt
- Reversible plate
Features:
- Dual view microscope system: View on the screen or with the microscope eyepieces
- Save images and videos to MicroSD Card
- Built-in computational measurement capabilities with no need for a PC
- Output the live image to an external HDMI monitor, or to your PC via USB connection.
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") -the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Ergo Stand with 16" post, reversible plate, and slide clips
- The focus mount features adjustable LEDs, as well as course & fine focus knobs
At the heart of this system lies Aven's SPZV-50, a true trinocular stereo zoom microscope that boasts a best-in-class zoom ratio and high-definition 3D images across a wide field of view. With a magnification range from 6.7x to 50x, expandable up to 200x with optional lenses, this microscope is designed for versatility and superior optical performance.

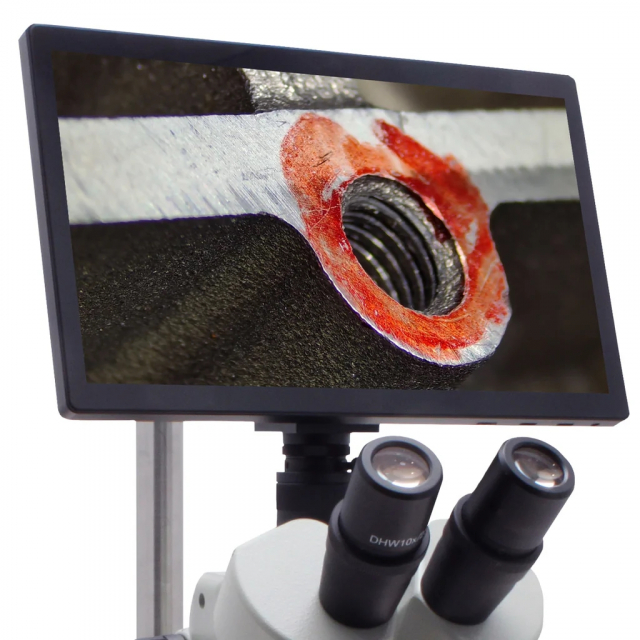

Complementing the SPZV-50 is Aven's Mighty Cam Eidos, an integrated camera and monitor solution that revolutionizes the way you capture and analyze data. This powerful 5-megapixel camera, equipped with an 11.6" HD monitor, allows for high-resolution image and video capture without the need for a PC, streamlining your workflow and enhancing productivity. The live picture can also be displayed on your computer via a USB output using the camera software of your choice (aven does not offer software for the Mighty Cam Eidos).

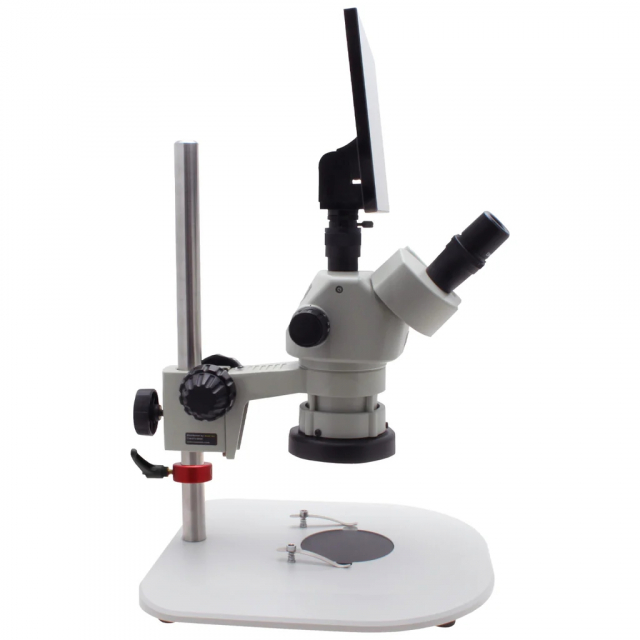

The system is anchored by Aven's Ergo Stand, which provides a robust and stable platform for detailed examinations. The stand features a 16-inch post and a reversible plate, offering a large working distance and the flexibility to handle various sample sizes and viewing angles. Its sturdy construction ensures reliable performance during critical observations.
Whether you're in the field of quality control, medical research, or educational demonstrations, this microscope system stands as a testament to commitment to excellence. It offers unparalleled clarity, convenience, and control, empowering you to achieve breakthroughs in your work and research. Discover the difference with state-of-the-art microscope system, where every detail is crafted with precision and every function is designed with your needs in mind.
