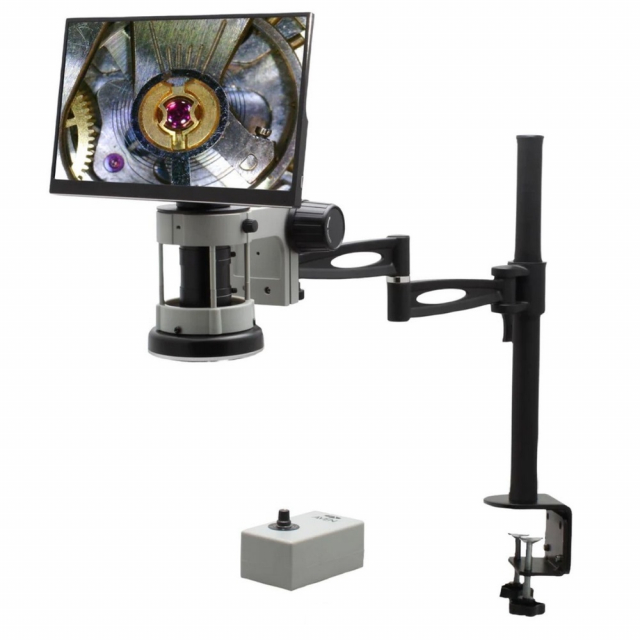

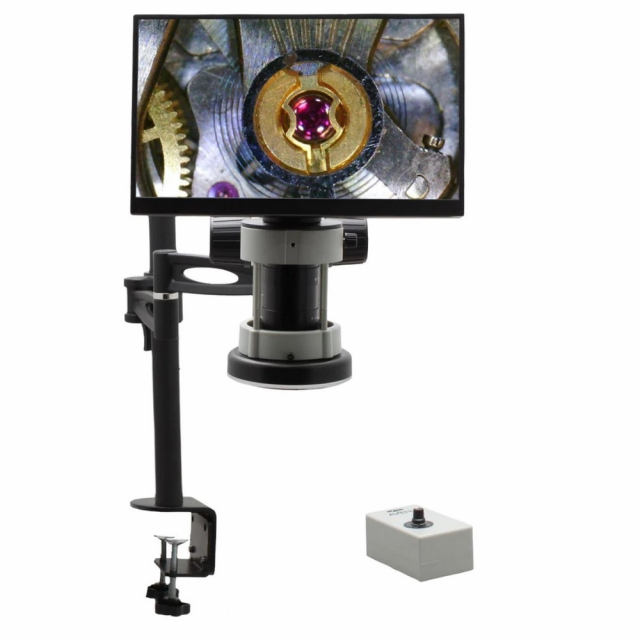

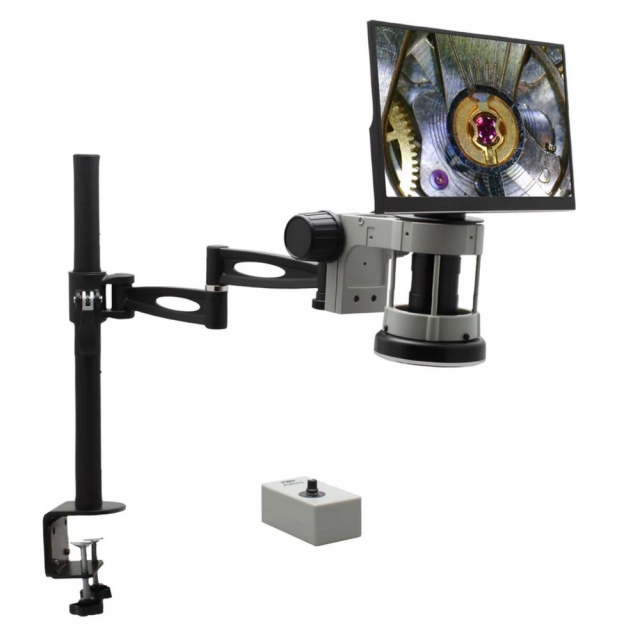

Aven, 26800B-717, Mighty Cam Eidos Digital Microscope 7x - 70x on Compact Articulating Arm Stand
26800B-717 Includes Only:
- 26100-260 - Mighty Cam Eidos
- 26800B-553 - Compact Ariculating Arm Stand
- 26700-181 - Macro Zoom Lens
- 26700-181AP - Lens Adapter
- 26200B-209 - LED Ring Light Focus Mount
Features:
- Improve inspection quality, reduce eye strain and fatigue
- Space-saving standard stand with focus mount
- Top-mounted adjustable Mighty Cam Eidos integrated 5M Camera / 11.6" Monitor
- Wide range zoom lens with adjustable iris, zoom and focus
- 1080p color camera, 60 FPS live image
- Image capture via USB output

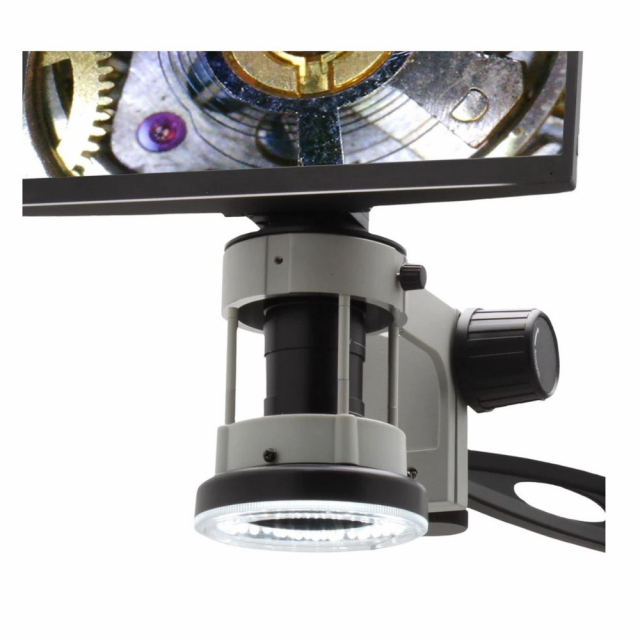

- LED Ring Light with brightness control for shadow-free illumination
- Maximizes your bench top space with a unique compact design
- Built-in measurement software - no computer required
- Magnification range: 7x to 70x at a 6 inch working distance
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
Aven's Macro Vue Eidos is a stand-alone high magnification inspection system. Reduce neck fatigue and eye strain while increasing productivity.
Neck strain and eye fatigue are a common occurrence with modern microscopes and can make routine inspection challenging. Stay focused, reduce fatigue while saving valuable bench top space with Aven's all-in-one Mighty Cam Eidos Eidos systems.
Exceptional Optics
Wide zoom range for general inspection and analysis. For optical data, review the Magnification Tables. 7x to 70x magnification.
Digital Inspection Made Easy
Eliminates Body Fatigue and Eye Strain
Aven's Mighty Cam Eidos 5 mega-pixel camera with a built in 11.6-inch screen can be attached to a trinocular microscope or video lens with a C or CS mount. The camera features a 5M Sony sensor that provides stunning high-quality images for you to view on the built in 11.6" HD monitor. This eliminates the eye strain and body fatigue associated with frequent optical microscope use.
Capture Stunning Image/Video Files
No Computer Required
Save high-resolution image and video files directly to USB storage, with no need for a PC for image processing.
Monitor Tilt
The monitor is can be tilted to the ideal angle for optimal viewing.
HDMI Output
The Eidos features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as an external monitor.
Built-in measurement
The included computational imaging software provides users with more functions such as:
- Callibration editor
- Radius measurement
- 2 point circle
- 3 point circle
- Crosshair
- Line measurement tool
- Center distance
- Concentric circle tool
- Annotation tool
- Screen shot tool

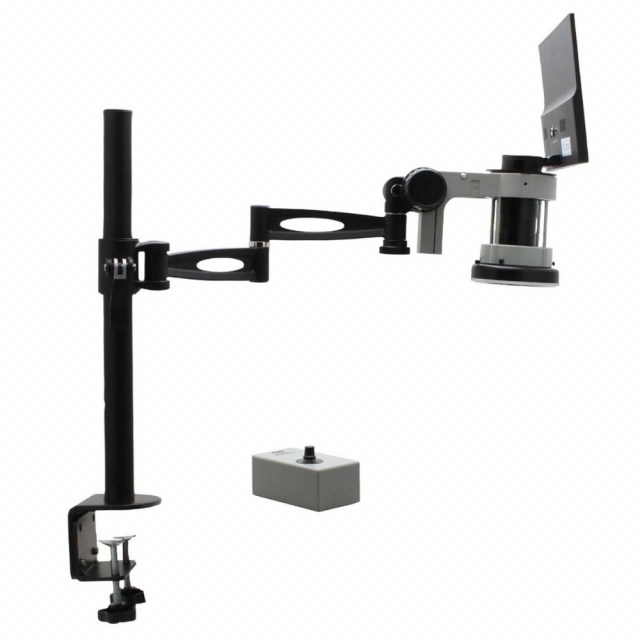

Compact Articulating Arm
Features a 415mm (16.33in) articulating arm with two articulating joints on a 450mm (17.7in) post. Includes a built-in table clamp with dual locks for added stability. The arm can be raised/lowered and rotated to the ideal position.
