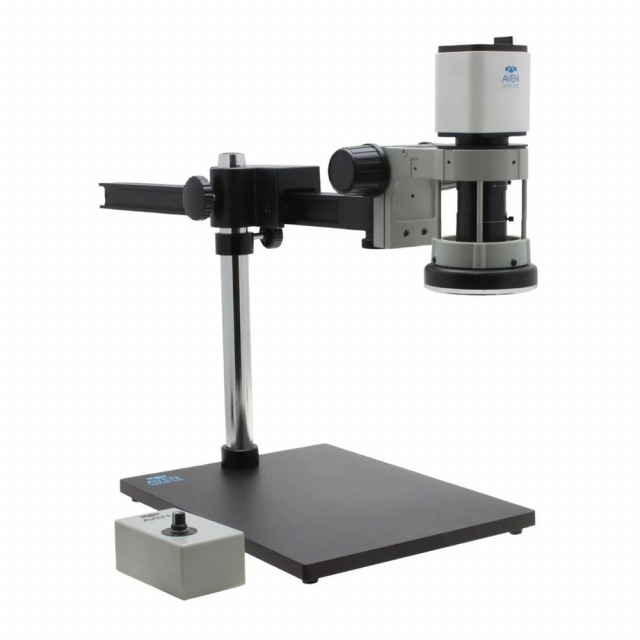

Aven, 26800B-716, Mighty Cam Pro Digital Microscope 7 -70x on Ultra Glide Stand with LED Focus Mount + HD Monitor Aven Tools
26800B-716 Includes Only:
- Mighty Cam Pro (26100-258)
- Ultra Glide Arm Stand w/ Heavy Metal Base (26800B-556)
- Computar Macro Lens (26700-181)
- E-Arm Focus Mount with LED Ring Light (26200B-209)
- 22" HD Monitor (26700-406)
- Computar Lens Adapter (26700-181AP)
Features:
- Fast auto focus camera achieves instant clear images with no need to adjust the lens
- Camera features HDMI and USB outputs
- Inspect directly on an HD monitor or from a computer
- Advanced imaging/measurement software included
- 7x - 70x magnification at a 6 inch working distance
- Includes Aven's Focus Mount with built-in LED ring light
- LED Ring Light is built into the focus mount to ensure that it is secure and will not come loose
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
High definition Auto Focus inspection system with a 22" monitor offering superb image quality at 60 frames per second. Working distance 6" with magnification range of 7x-70x. You can operate this system with or without a PC. Without a PC, the camera connects directly to the included HDMI monitor. View and record images using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advanced features in the included software.
LED Ring Light is built into the focus mount to ensure that it is secure and will not come loose. Ideal for applications that require operators to scan over large objects.
High Speed Auto Focus
The advanced sensor technology of the Mighty Cam Pro provides instant focus making routine inspection faster and easier. The user can choose from continuous auto-focus, one-click auto focus or manual focus. By clicking any area of interest on the screen the camera will automatically focus within a fraction of a second without manually adjusting the lens or focus block
HDMI Mode: Image/Video Capture, On-Screen Measurement Tools
No Computer Required
The Mighty Cam Pro is designed to be an advanced camera while also being user friendly and convenient. The HDMI mode provides features that typically require operators to connect their camera to a computer.
- Save image/video files directly to an SD card
- Calibrate and execute accurate on-screen measurements
- Write on-screen notes and save them as image files
- Use different measurement units including inches, mm, cm, and more
- Line and shape measurement tools
- Angle measurement
- Grid overlays
- Image review
- And More
USB Mode - Advanced Imaging / Measurement Software Included
The Mighty Cam Pro also features a USB output for computer connectivity. The included software package features advanced capabilities exclusive to USB mode
- Photo Stitching Mode - create large panoramic images by "stitching" them together. The advance software detects and continuously builds an image as an object is moved beneath the camera's lens. For best results, it is recommended that operators use a gliding stage when using this mode.
- Depth of Field Detection - Create images where the entire object is in focus
- Image Capture - Save high-resolution image/video files to your PC
- Measurement Tools - Calibrate and execute accurate measurements with a large selection of line, shape, angle, and grid tools.
Precision Engineered Macro Lens
The macro lens included with this system offers unsurpassed clarity and parfocal zoom capabilities. Provides manual adjustment of focal length, iris and focus. Lens has a C-mount and working distance of 6" to 18"

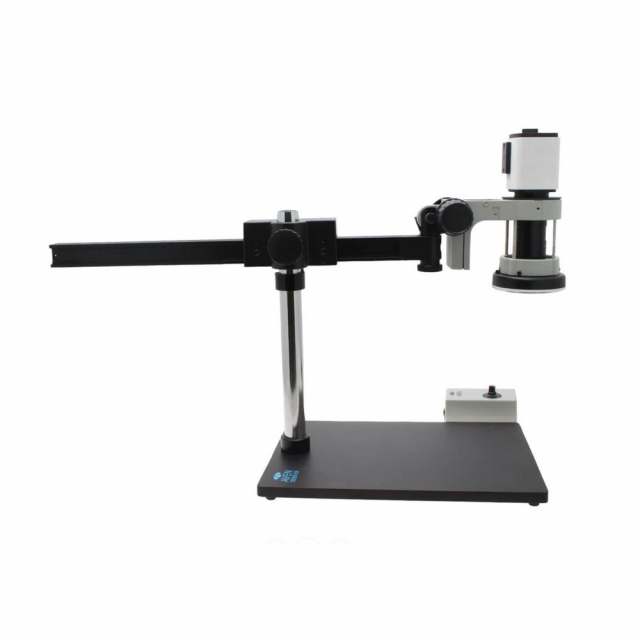

Ultra Glide Stand
Smooth movement of the ball bearing construction slide allows operators to move your microscope easily over and across the object being viewed. Heavy duty table base provides excellent stability.
- Heavy duty coated base
- All metal construction
- UNC bolt and safety clamp included

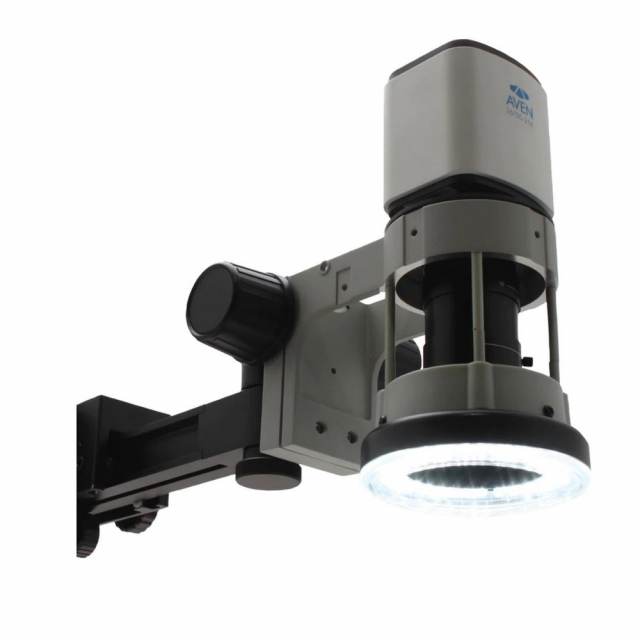

LED Ring Light and Focus Mount
The ring light consists of 60 ecofriendly daylight LEDs producing a light intensity of 35,000 lux and a color temperature of 5600K. The LEDs are rated for over 20,000 hours of service. Ring light is mounted securely onto Aven's standard focus mount - available in both coarse and fine focus. The unit includes a power supply box with variable dimming control.
LED Ring Light is built into the focus mount to ensure that it is secure and will not come loose unlike ring lights attached to the lenses.
