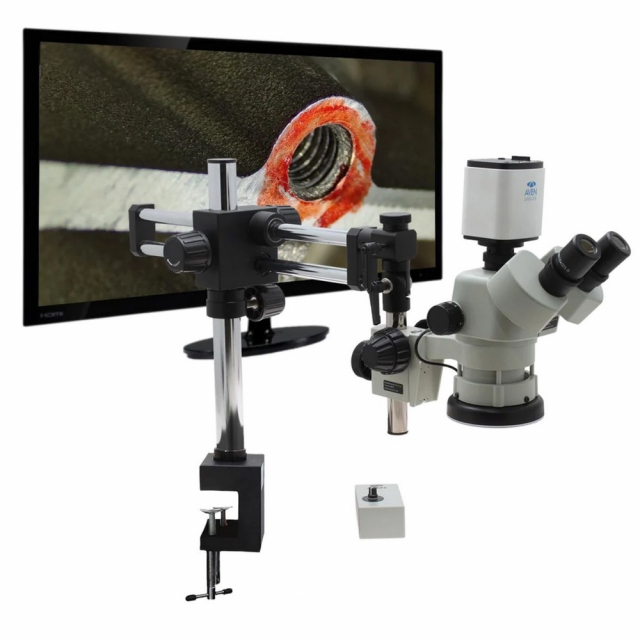

Aven, 26800B-708, SPZV-50 Stereo Zoom Microscope 6.7x-50x with Mighty Cam Pro Auto Focus Camera on DABS Stand with Table Clamp, LED Focus Mount, and Tiltable Arbor
26800B-708 Includes Only:
- Mighty Cam Pro (26100-258)
- Stereo Zoom Microscope (SPZV-50)
- DABS Stand (26800B-536)
- LED Focus Mount with brightness control box (26200B-207)
- Tiltable Arbor
- 22" LCD HD Monitor (26700-406)
Features:
- 1080p Full HD Imaging at 60 FPS
- USB output connects to PC
- On-screen measurement tools for use in HDMI mode
- Advanced imaging/measurement software included
- Achieve instant auto focus
- Enhances productivity - eliminates eye strain and body fatigue
- Long working distance
- 22" HD Monitor Included
- Save high resolution image/video files directly to SD card
- Dual view system - view images through the microscope or the HD monitor
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
Dual-view microscope system featuring Aven's SPZV-50 Stereo Zoom Microscope, and the Mighty Cam Pro auto focus camera. Viewing through the microscope a magnification range of 6.7x to 50x is obtained. On screen magnification range is 34x to 255x. 24" HD Monitor is included.
High definition 1080P auto focus inspection system with a 22" monitor offering superb image quality at 60 frames per second. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advance features in the included software.
All-In-One Inspection System
View through the microscope or on the monitor
This innovative inspection system gives operators two viewing options:
SPZV-50 Trinocular Microscope
- View objects beneath the microscope in crystal-clear optics, with a magnification range of 6.7x - 50x
Mighty Cam Pro - HDMI Monitor or PC
- The Mighty Cam Pro inspection camera connects directly to your HD monitor via HDMI, or to your PC via USB. View real-time images at 34x - 255x
An unprecedented high-speed focusing experience
The heart of this system is Mighty Cam Pro auto focus camera. It offers both continuous and single-shot auto focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.
The Mighty Cam Pro features dual outputs - USB and HDMI - for use with a PC or an HD monitor.
HDMI Mode - Integrated Measurement System
No PC Required
Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tools are also included.
HD Monitor
The included monitor features a 22" screen, offering 1080p imaging and a max magnification display of 132x.
PC Mode - Connect to your PC for more advanced features
The included computational imaging software provides users with more functions such as:
- Auto Focus Fine Tuning
- Intelligent capture and processing
- Efficient measurement and attribute editing
- Annotation and reporting
Image Stitching
Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.
The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

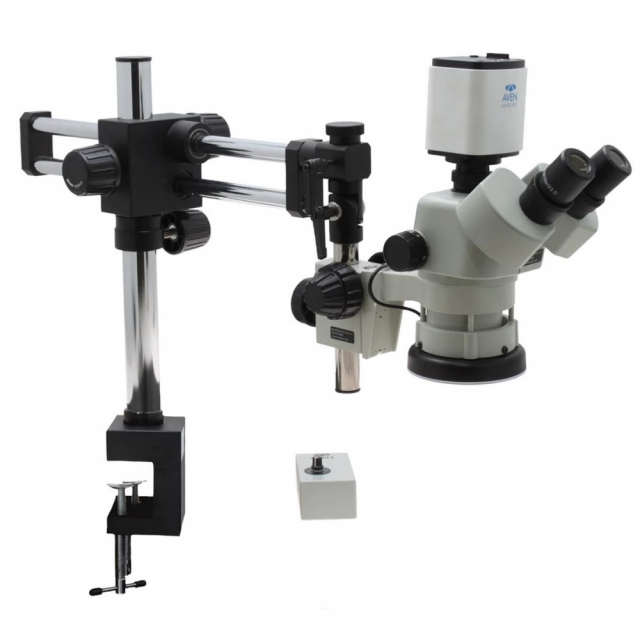

Precision Engineered Stereo Zoom Microscope
The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZV-50 extends the boundaries of stereo zoom microscopy, employing standard 10X eyepieces to achieve 6.7x - 50x continuous zoom magnification all the while providing a continuous working distance of 3.3" (84mm).
- 6.7x - 50x optical magnification
- 34x - 255x on-screen magnification
- Click-Stop zoom knobs allow operators to make accurate measurements

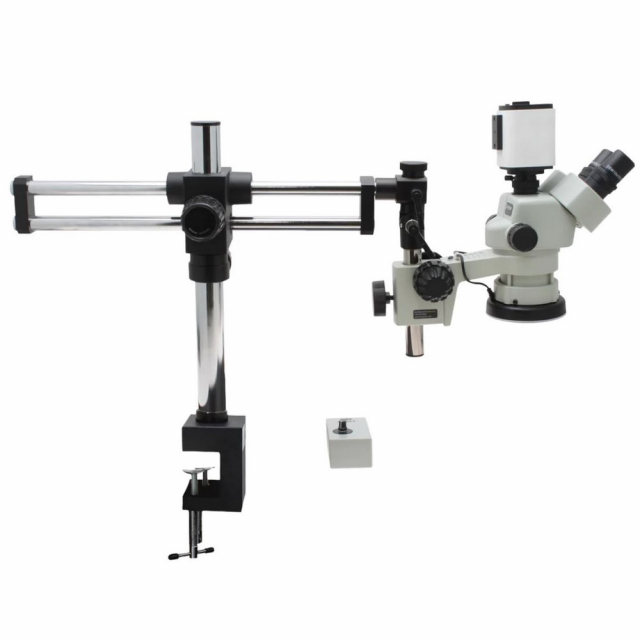

Double Arm Boom Stand with Table Clamp
This gliding arm stand with a table clamp is excellent for inspection applications that require magnification adjustment and the ability to move easily across a specimen. The heavy-duty table clamp secures to the side of your work bench.
For more information, please see
Manual
