Aven, 26700-425, Cyclops Digital Microscope Metallographic 284x - 2042x with 4x, 10x, and 20x Lenses
26700-425 Includes Only:
- Cyclops Metallographic Digital Microscope
- White Balance Card
- HDMI Cable
- IR Remote Control
- USB-C 3.0 Cable
- User's Guide
- Power Adaptor
- Calibrator
- Stand S112
- DIN Lens (4X, 10X, 20X)
- Stand assemble guide
- Light Adapter
Features:
- Cyclops Metallographic Digital MicroscopeWhite Balance Card
- HDMI CableIR Remote Control
- USB-C 3.0 CableUser's Guide
- Power AdaptorCalibrator
- Stand S112DIN Lens (4X, 10X, 20X)
- Stand assemble guideLight Adapter

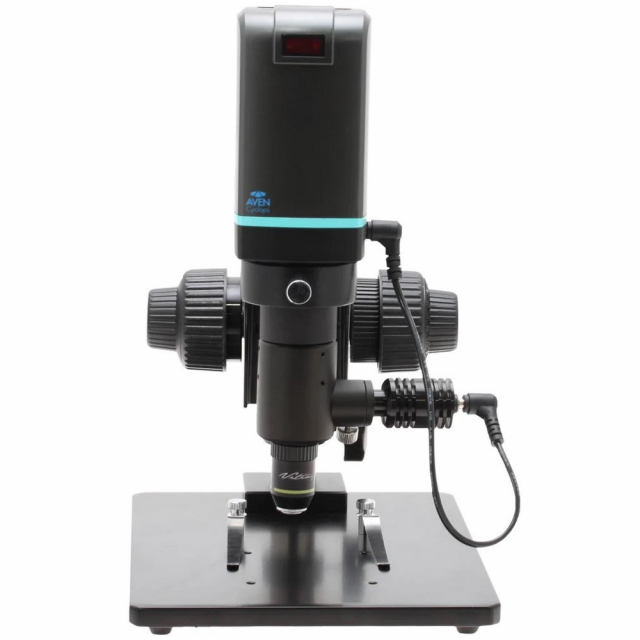

The Cyclops Metallographic Digital Microscope is a specialized system designed for high magnification. Includes 3 interchangeable high-powered lenses to reach a magnification range of 284x - 2042x (based on a 24-inch monitor). Featuring USB and HDMI outputs, you can view the live image from your HD monitor, or connect to your PC to take advantage of the included imaging/measurement software (via download link).
Note: Monitor is shown for illustrative purposes only, and is not included with this product.
Take A Closer Look

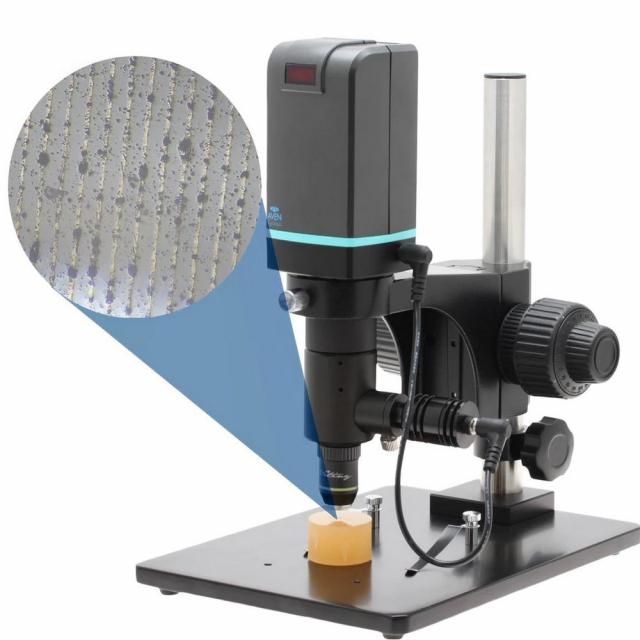

As components become smaller and more efficient, it becomes crucial to have the right tools and equipment to examine parts for quality assurance and research. The Cyclops Metallographic Digital Microscope System was designed to magnify these parts, revealing details at up to 2042x magnification (based on a 24" screen).

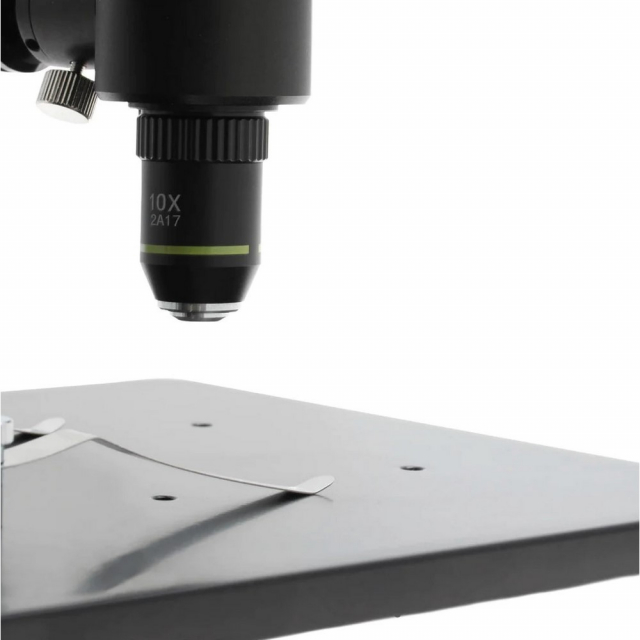

Interchangeable Lenses
This system includes 3 interchangeable lenses (4x, 10x, 20x). Take control of your magnification on level from 284x to 2042x (based on a 24-inch monitor) and view the details in crystal-clear clarity on your monitor.
Coaxial Lighting System
The built-in coaxial illumination system provides bright lighting with no hot spots. The intensity can be raised or lowered with the included IR Remote Control.

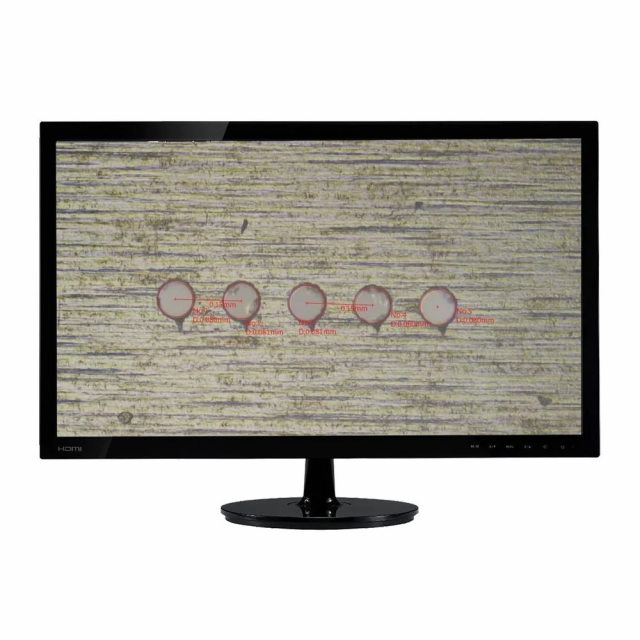

PC mode - measurement / imaging software
- Take accurate measurements
- Auto Edge Locate
- Make on-screen notes
- Utilize on-screen grids and overlays
- Time-lapse photography
- Capture stunning image and video files

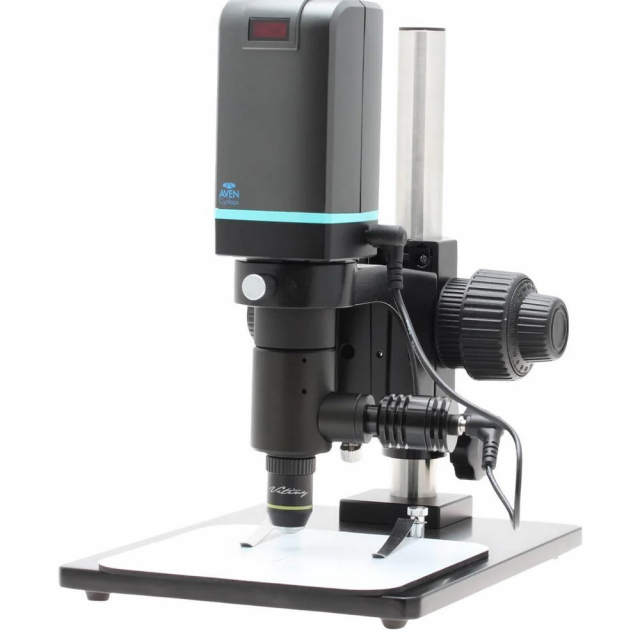

Heavy Duty Stand
The stand included with this system features a tall metal post, designed to accommodate XY glide stands when required. The base features built-in clips that can be used to secure samples such as wafers, slides, metal sheets, films, or other flat materials. The fine-focus mount can be adjusted in precise increments to find the accurate focal point at high magnification levels.
For more information, please see
Data Sheet
