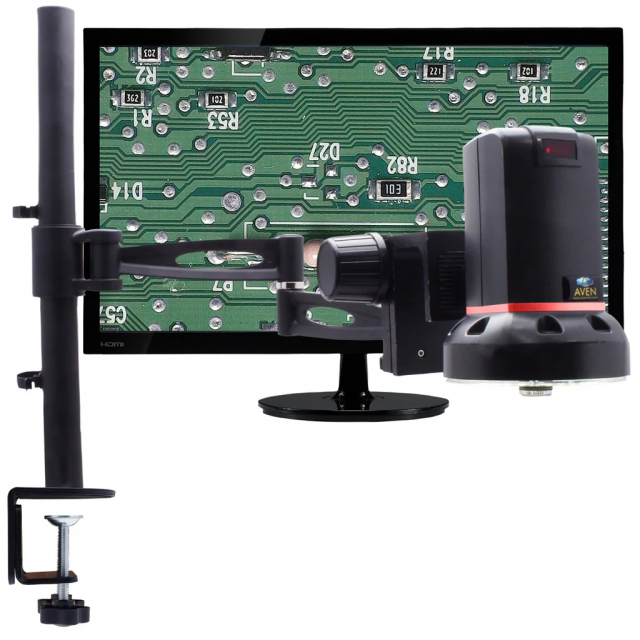

Aven, 26700-424-553, Cyclops Digital Microscope with Articulating Arm Stand and Monitor, 4K, 13x-140x
26700-424-553 Includes Only:
- Cyclops 4K Ultra HD
- Cyclops IR Remote Control
- 4x Objective Lens
- 2GB microSD Card
- Articulating Arm Stand (26800B-553)
- 360 Ball Joint (26700-412)
- N-Type Focus Mount with E-Arm
- 22" LCD Monitor (26700-406)
Features:
- Advanced measurement software included
- Capture crystal-clear 4K Ultra HD images
- 13x-140x magnification
- Capture images directly to a MicroSD card
- View high-definition live images with no computer required
- Compact/convenient articulating arm stand
Over-Engineered, Not Overpriced
This innovative digital microscope connects directly to a HD monitor OR your PC. Magnification ranges up to 140x. This breakthrough instrument increases accuracy and productivity while easing eye strain and user fatigue ' valuable benefits in high-volume applications, such as parts inspection in assembly operations.
USB Mode - Advanced measurement software
In USB mode, operators utilize the advanced imaging software to view live images, capture image and video files, make accurate measurements, annotate, time-lapse photography and more. To learn more about the Cyclops 4K software, please refer to user guide.
Compact and Convenient
This articulating arm is a convenient and space-saving stand. Features a 415mm (16.33in) articulating arm with two articulating joints on a 450mm (17.7in) post. Includes a built-in table clamp with dual locks for added stability. The arm can be raised/lowered and rotated to the ideal position.
Articulating Arm
The 16.3 inch articulating arm can be secured to any point along the 17.7 inch post. The two articulating joins can be rotated to the ideal position, and can be used to move the microscope out of the way when not in use.
Heavy Duty Table Clamp
The built in table clamp secures to the side of work bench, featuring dual locks for added stability.
360 Rotation
The 360 ball joint lets operators choose their own ideal inspection angle. Simply positing the Cyclops and lock it in.
IR Remote Control
The included IR handset is used to control all digital functions of the Cyclops 4K, including ring light illumination, image focusing, image and video capture, and toggling between HDMI and USB modes.
