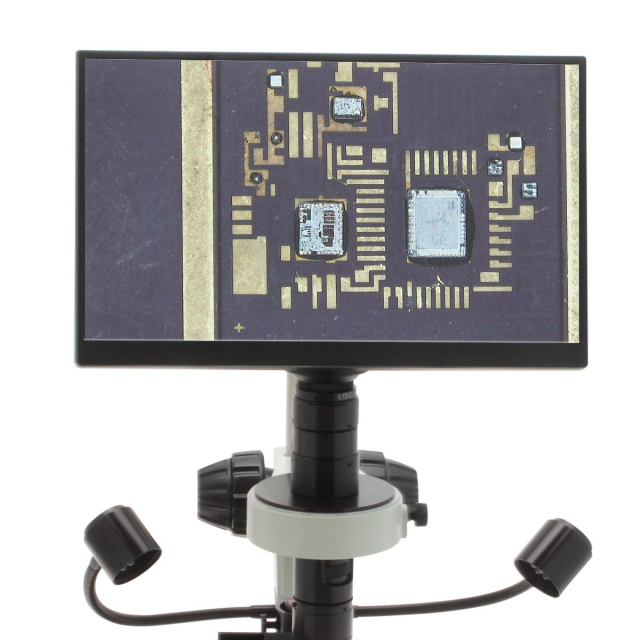

Aven, 26700-151-C05-260-570, Digital Microscope With 360 Viewer, Mighty Cam Eidos On Post Stand With Gooseneck LEDs [13.3x - 94.4x]
26700-151-C05-260-570 Includes Only:
- 26100-260: Mighty Cam Eidos
- 26700-170: 360 Viewer
- 26700-151-C05: Micro Lens + 0.5x Coupler
- 16700-151AP: Lens Adapter Plate
- 26800B-570: Heavy Duty Post Stand
- 26200B-224: Flexible Gooseneck LEDs with Brightness Control Box
Features:
- 0.6x to 4x zoom magnification
- Detented Lens for High Accuracy Measurement
- 360 viewing with included attachment
- Heavy-duty post stand with adjustable LEDs
- All-in-one, compact system
- 1080p Full HD Imaging at 60 FPS
- HDMI Output for additional monitor viewing
- Built-in measurement software - No PC required
- Enhances productivity - eliminates eye strain and body fatigue
- 11.6" built-in HD monitor
- Save high resolution image/video files directly to USB Storage card
- 1080p Full HD Output
- Monitor can be tilted to the optimal viewing angle
- 3D viewer can be easily engaged or disengaged by sliding the mechanism in or out
This digital microscope system with the 360 viewer allows users to inspect parts from various angles without having to rotate the part. The viewer features a mirror inclined at a 35 degree angle can be engaged or disengaged.
The high quality zoom lens has detents set at 0.6x, 1x, 2x and 4x. This allows for calibrating the lens for high accuracy measurement. The lens is parfocaled and will stay in focus when zooming in or out.
The Mighty Eidos camera included in this package features a built-in 11.6" HD monitor, with integrated measurement and image capture capabilities - no computer required.
The Mighty Cam Eidos features an HDMI output for viewing viewing on an external monitor. This option can provide a larger image for additional magnification, and can be ideal for presenting live images to a group or audience.
The monitor is can be tilted to the ideal angle for optimal viewing.
The included post stand is made from heavy metal construction, designed to be compact and durable. The base measures 11" x 13", with a 16" post.
The LED goosenecks can be positioned where needed for optimal illumination, a particularly useful feature when reduced glare is crucial. Includes a brightness control box to choose the required brightness intensity.
