Aven, 26700-151-C05-260-506, Digital Microscope With 360 Viewer, Mighty Cam Eidos On Track Stand [13.3x - 94.4x]
26700-151-C05-260-506 Includes Only:
- 26100-260: Mighty Cam Eidos
- 26700-170: 360 Viewer
- 26700-151-C05: Micro Lens + 0.5x Coupler
- 16700-151AP: Lens Adapter Plate
- 26800B-506: LED Track Stand
Features:
- 0.6x to 4x zoom magnification
- Detented Lens for High Accuracy Measurement
- 360 viewing with included attachment
- Track Stand with Large Base
- All-in-one, compact system
- 1080p Full HD Imaging at 60 FPS
- HDMI Output for additional monitor viewing
- Built-in measurement software - No PC required
- Enhances productivity - eliminates eye strain and body fatigue
- 11.6" built-in HD monitor
- Save high resolution image/video files directly to USB Storage card
- 1080p Full HD Output
- Monitor can be tilted to the optimal viewing angle
- 3D viewer can be easily engaged or disengaged by sliding the mechanism in or out

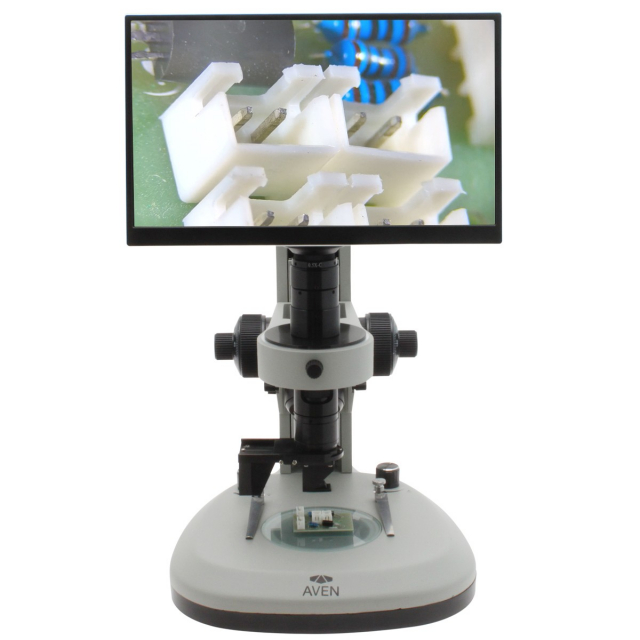

This digital microscope system with the 360 viewer allows users to inspect parts from various angles without having to rotate the part. The viewer features a mirror inclined at a 35 degree angle can be engaged or disengaged.
The high quality zoom lens has detents set at 0.6x, 1x, 2x and 4x. This allows for calibrating the lens for high accuracy measurement. The lens is parfocaled and will stay in focus when zooming in or out.
The Mighty Eidos camera included in this package features a built-in 11.6" HD monitor, with integrated measurement and image capture capabilities - no computer required
The Mighty Cam Eidos features an HDMI output for viewing viewing on an external monitor. This option can provide a larger image for additional magnification, and is ideal for presenting live images to a group or audience.
The included track stand features an adjustable LED overhead and back lights. The focusing distance is about 4 inches (106mm) and track length is 11 inches (280mm). The backlight is designed to illuminate translucent objects and is covered by a frosted glass plate for soft diffused lighting. Has to clips to secure slides over the glass plate. The base size is 11.21 inches (284.7) x 9.36 inches (237.7).
