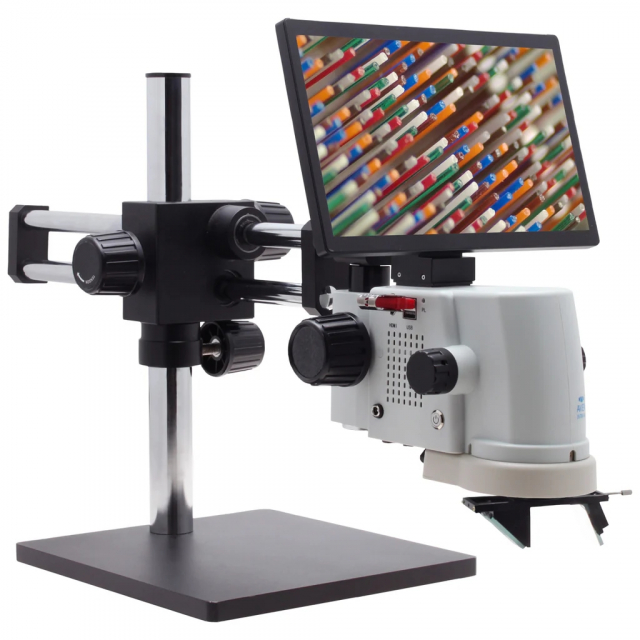

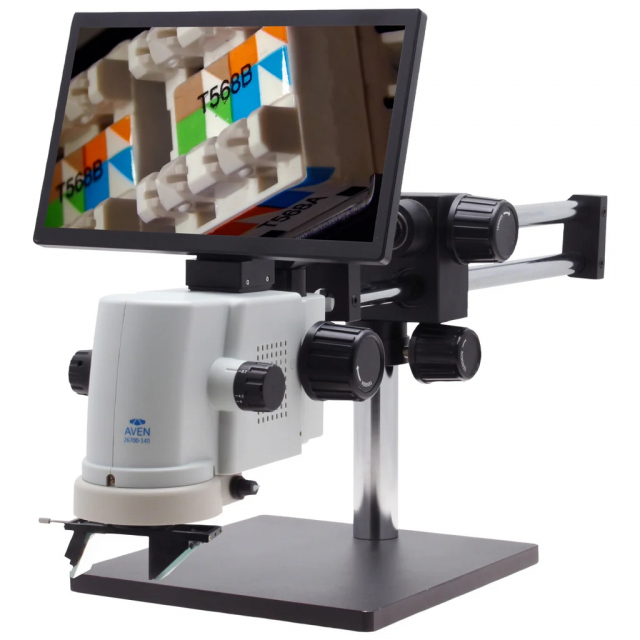

Aven, 26700-140-5343D, MicroVue Digital Microscope with Boom Stand and 360 Viewer, 17x - 110x
26700-140-5343D Includes Only:
- MicroVue Digital Microscope
- MicroVue Track Stand
- DC-12V Power Adapter
- Wireless USB Mouse (requires 2 AAA batteries, not included)
- USB Flash Drive
- Tools for Assembly
- Assembly Guide
- User Manual
Features:
- 0.6x to 4x zoom magnification
- Detented Lens for High Accuracy Measurement
- Heavy-duty post stand with adjustable LEDs
- All-in-one, compact system
- 1080p Full HD Imaging at 60 FPS
- HDMI Output for additional monitor viewing
- Built-in measurement software - No PC required
- Enhances productivity - eliminates eye strain and body fatigue
- 11.6" built-in HD monitor
- Save high resolution image/video files directly to USB Storage card
- 1080p Full HD Output
- Monitor can be tilted to the optimal viewing angle
All-In-One Digital Microscope
Discover the power of precision with Aven's MicroVue Digital Microscope, your all-in-one solution for detailed inspection and analysis. This advanced system is designed not only to enhance your viewing experience but to integrate seamlessly into any workspace with its ergonomic and compact design.
Crystal-Clear Monitor: Up to 110x Magnification
Featuring a generous 11.6" built-in monitor, the MicroVue offers exceptional ergonomic viewing, allowing for comfortable extended use without sacrificing on detail. Experience crisp, clear magnification ranging from 17x to 110x directly on the built-in monitor. For those seeking even greater detail, optional lenses extend the magnification capabilities from 8.6x to a remarkable 221x, opening a world of microscopic details.
360 Viewer: Angled views and 360 rotation
The 360 Viewer Attachment's unique design gives operators a perspective on objects being viewed. The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more. The attachment can be rotated 360 degrees to display the part from various angles without needing to physically move the part.
When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.
When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.
HDMI Output: Real-Time viewing from an external monitor
The MicroVue doesn't stop at superior magnification. It comes equipped with an HDMI output, enabling the option of external monitor viewing for an expanded visual workspace or for sharing your findings with a team.

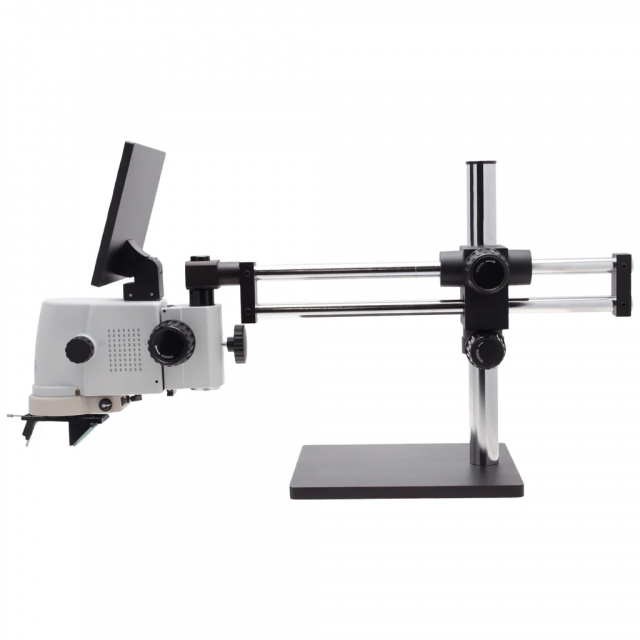

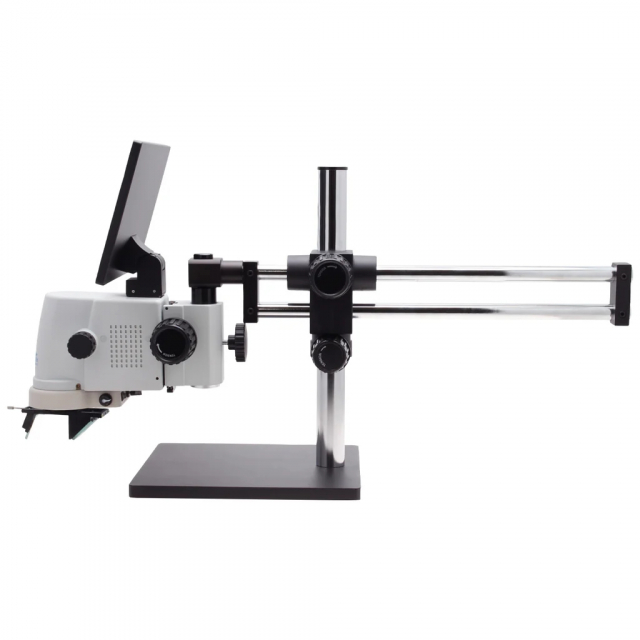

Double Arm Boom Stand
Smooth movement of a ball bearing slide allows you to move your microscope easily over and across the object being viewed. Heavy metal base (21lbs; 9.5kg) provides excellent stability.
- Vertical post height: 15"
- Horizontal arm length: 15.12"
Built-In Measurement Capabilities: No Computer Required
Built-in measurement capabilities ensure precise analysis and documentation, enhancing the utility and efficiency of your research or quality control processes.
Easy Image Capture: Save Directly to USB Storage
Saving and sharing your discoveries is as straightforward as it gets. With the ability to save image and video files directly to a USB storage device, the MicroVue simplifies the process of capturing and transferring data. Plus, a USB is included to get you started right away.
Compact Design
Saving and sharing Designed with your space in mind, the MicroVue boasts a compact footprint, ensuring that even the most limited benchtop spaces can accommodate this powerful tool without compromise.
