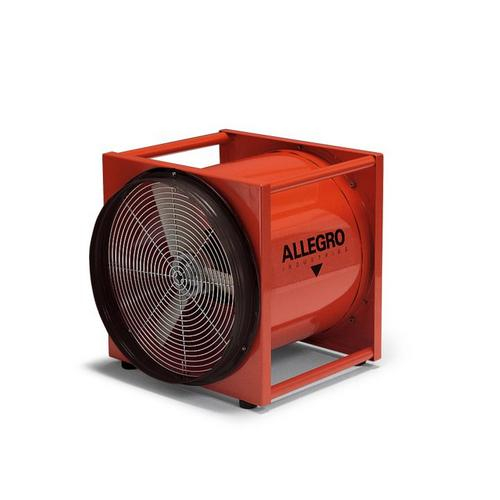

Allegro Industries 9515 16" Axial Standard Blower, 1/2 HP

16" Axial Standard Blower, 1/2 HP

Features:

For very large confined spaces this large, 16" axial blower delivers high output for drawing or pushing air. The durable and tough metal housing holds a 6 blade impeller.

Construction:

• Complete unit epoxy powder coated in orange
• Interchangeable flange for intake or exhaust side mounting
• 18 gauge cold rolled steel housing
• Integrated carrying handles
• Steel/chrome plated grill
• Equipped with four rubber feet
• Can be used with Adaptor Reducer (PN: 9600-50) used with 8" (20.3 cm) duct

Motor:

• HP: ½ HP
• Certifications: UL Recognized, CSA Certified
• Voltage/Hz: 115V AC, 60 Hz, Single Phase
• RPM: 1725
• Current Draw: 7.2A
• Cord: 25’ (7.62 m) 16/3 AWG, SJTW 90C 300V medium duty
• Plug: NEMA 5-15 (Grounded three-prong)

Fan:

• Glass reinforced Polypropylene (PPG) six blade fan, with aluminum hub
• Moving fan mounted 1 5/8"(4.12 cm) from grill for safety, grill gap-5/16"(0.79 cm)
