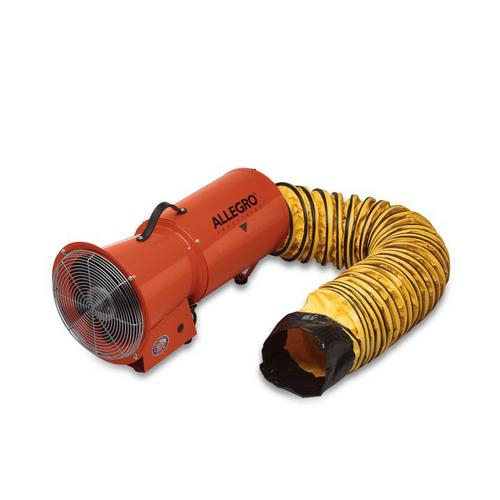

Allegro Industries 9514 8" AC Axial Electric Blower w/ Canister

Allegro Industries, 9514, 8" AC Axial Electric Blower w/ Canister, 1/3 HP (Includes 15' Ducting)

Features:

Engineered for convenience, this 8" axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and 15 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.

Construction:

• Epoxy powder coated in “safety orange"
• Flange on intake side for optional inlet adapter
• 18 gauge cold rolled steel housing
• 14 gauge steel enclosed panel to protect electrical components
• Welded motor mount construction
• Steel/chrome plated grill
• Handle made of 3-ply rubber belting and equipped with 4 feet

Motor:

• HP: 1/3 HP
• Certifications: UL Recognized, CSA Certified
• Voltage/Hz: 120V AC, 60 Hz, Single Phase
• RPM: 3200
• Current Draw: 3.0A
• Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
• Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V

Fan:

• Glass reinforced polypropylene (PPG) three blade fan, with aluminum hub
• Moving fan mounted 1 5/8" (4.12cm) from grill for safety
• Grill Gap – 5/16" (0.79cm)

Dusting:

• Retractable, non-collapsible design
• Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
• Yellow color with black weather-strip and integrated nylon straps
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
