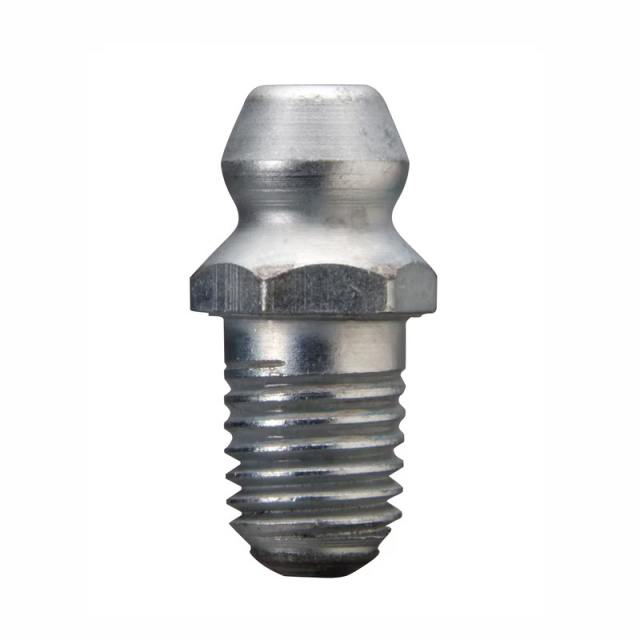

Alemite LAGN-1652-B 1/4"-28 Taper Thread Straight 11/16" Fitting

Features:

• Meets SAE J534 (Aug 2015) requirements:
  • 144-hour salt spray base metal protection
  • 96-hour salt spray coating protection
  • 34.5 MPa (5,000 psi) blowout protection
• Dirt excluding the check ball
• Trivalent zinc plating
• RoHS compliant

ALEMITE 1/4"-28 Taper Thread Fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4"-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151", to provide 75% minimum thread height.
