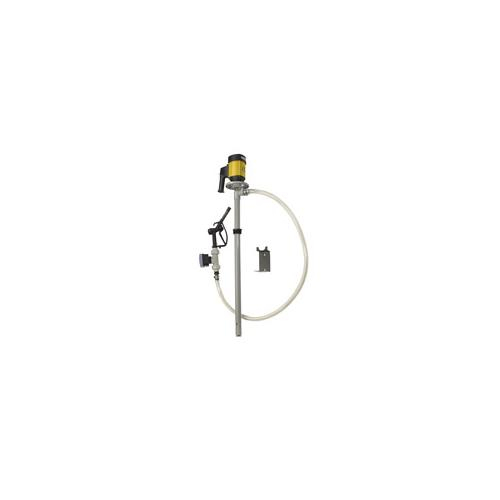

Alemite 340012 230 V Electric Pump

230 V Electric Pump

Features

• Designed to transfer a wide range of liquids
• Eliminates direct contact with aggressive chemicals, reduces risk for splashing
• No seals to wear out or replace
• Fast – empty a 55 gallon drum in 90 seconds (35 gallon/minute delivery)
• Light weight and portable
• Maximum viscosity is 1500 cps
• Pumps can “dry run" against a closed valve without damage

Alemite Electric Transfer Pumps transfer chemicals and other fluids from drums, tanks and totes.

Includes

• 340020-1 – Polypropylene construction - Hastelloy drive shaft -Viton V-seal- Viton sealed ball bearings - TFE guide sleeve - carbon grade 6038C carbon bushing - hose connection 1" (25 mm), ¾" (22mm) available. Maximum temperature 130°F (55°C).
• 340016 – Open Drip Proof enclosure (IP 44), 230V/1/50-60Hz-1.1 HP (825 watts) - 10,000 RPM, thermal overload protection switch, Low Voltage Release (LVR), 16 ft. (5 m) CE listed, Har Ho 7 cable cord with plug
• 393766-5- wall bracket- used for proper storage of unit.
• 393766-3- PP construction, 2" (41mm) bung adapter. Holds unit in proper vertical position.
• 393766-1 – PP construction, Hand Nozzle
• 393766-6 – 6 ft. (2 m) PVC tubing with hose clamps.

Includes

• 340020-1 – Polypropylene construction - Hastelloy drive shaft -Viton V-seal - Viton sealed ball bearings - TFE guide sleeve - carbon grade 6038C carbon bushing - hose connection 1" (25 mm) available. Maximum temperature 130°F (55°C).
• 340015 – Open Drip Proof enclosure, 115V/1/50-60Hz-1.1 HP (825 watts) - 10,000 RPM, thermal overload protection switch, manual reset on switch, 16 ft. SJT U.L. listed, 3 wire cord with 3 prong molded plug.
• 393766-5 – wall bracket- used for proper storage of unit.
• 393766-3 – PP construction, 2" (41mm) bung adapter. Holds unit in proper vertical position.
• 393766-1 – PP construction, Hand Nozzle
• 393766-6 – 6 ft. (2 m) PVC tubing with hose clamps.
