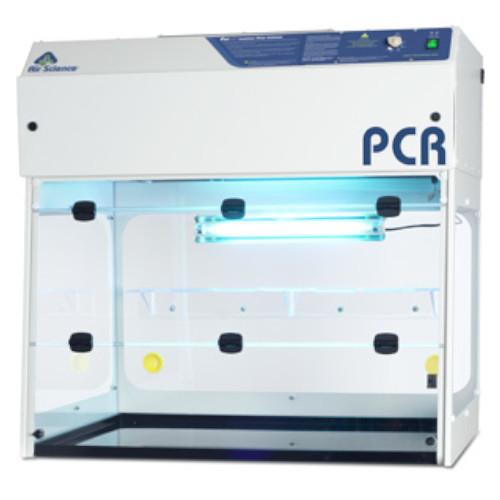

PCR-36, 3ft PCR Laminar Flow Cabinet

The Purair PCR laminar flow cabinet employs the Air Science Multiplex™ HEPA filtration technology to create a safe, energy-efficient contaminant-free environment. It is ideally suited for use with non-hazardous contaminants and when flexible access to the instrumentation in the cabinet is required.

Includes HEPA filter

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

Airflow Pattern	Vertical downflow.
Airflow	0.45 m/s (90 fpm)
Filter Specifications
Pre-Filter	Disposable polyester fibers with 85% arrestance
Main Filter	HEPA efficiency, 99.99% at 0.3μm
Clamping	Screw compression clamp
Lighting	Compact fluorescent bulb, removed from air stream
UV Lamp	1 x 253.7 nanometer 15 watt
Side Windows
Construction	Polycarbonate.
Visible Opacity	Transparent, colorless
UV Opacity	UV absorbing
Construction
Color	White epoxy-coated steel frame with blue legs on cabinet sides.
Work Surface	Standard, white or black polypropylene. Optional, stainless steel. Specify when ordering.
Pass Through Ports	Two standard, tear-drop style
Shelving	Decontamination shelf on rear wall
Night Door/Cover	Standard, hinged door cover with safety interlock.
Blower	ebmpapst™ centrifugal fan.
Electrical	120V, 60Hz or 220V, 50Hz voltages available. Specify when ordering. Other voltage options available
Electrical Controls	Main On/Off switch for fan and lighting. Solid-state fan speed control with RFI filter maintains blower uniformity. UV timer, safety interlock shut-off

Product Details

Airflow Pattern	Vertical downflow.
Airflow	0.45 m/s (90 fpm)
Filter Specifications
Pre-Filter	Disposable polyester fibers with 85% arrestance
Main Filter	HEPA efficiency, 99.99% at 0.3μm
Clamping	Screw compression clamp
Lighting	Compact fluorescent bulb, removed from air stream
UV Lamp	1 x 253.7 nanometer 15 watt
Side Windows
Construction	Polycarbonate.
Visible Opacity	Transparent, colorless
UV Opacity	UV absorbing
Construction
Color	White epoxy-coated steel frame with blue legs on cabinet sides.
Work Surface	Standard, white or black polypropylene. Optional, stainless steel. Specify when ordering.
Pass Through Ports	Two standard, tear-drop style
Shelving	Decontamination shelf on rear wall
Night Door/Cover	Standard, hinged door cover with safety interlock.
Blower	ebmpapst™ centrifugal fan.
Electrical	120V, 60Hz or 220V, 50Hz voltages available. Specify when ordering. Other voltage options available
Electrical Controls	Main On/Off switch for fan and lighting. Solid-state fan speed control with RFI filter maintains blower uniformity. UV timer, safety interlock shut-off
