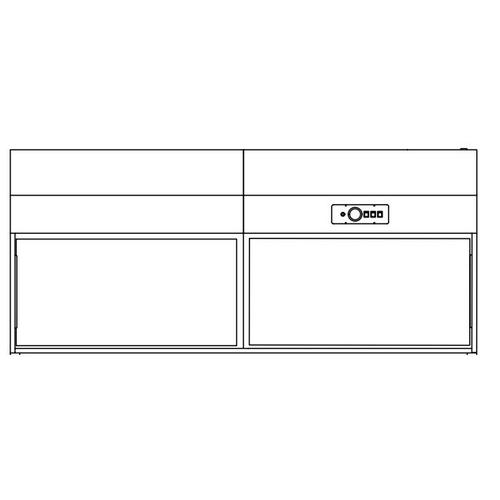

Air Science HLF-96 96" Horizontal Laminar Flow Cabinet

Extra Tall Option: No, Nominal Width: 96"
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Extra Tall Option:
Extra Tall Option: No
Nominal Width:
Nominal Width: 96"

HLF-96, Horizontal Laminar Flow CabinetHorizontal flow Cabinet create less turbulence at the work surface, as the airflow does not directly impinge upon it but rather is smoothly drawn across it. The airflow on the Purair vertical flow Cabinet directly strikes the work surface.

Includes ULPA filter

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Resources
Reviews
Airflow0.45 m/s (90 fpm)
Pre-FilteDisposable polyester fibers with 85% arrestance
Main FilterULPA, 99.999% efficient at particle sizes between 0.1 to 0.3 μm
SizeFull size of Work Zone
ClampingSpring loaded, adjustable tension adjusts for gasket aging
Cabinet LightingCompact fluorescent bulb removed from air stream
UV LampOptional
Noise, dBA, 1 meter≤72
Side Windows(Not Available on Stainless Steel Models)
ConstructionTempered Glass
Visible OpacityTransparent
UV OpacityUV Absorbing
ColorColorless
Construction
ColorWhite epoxy coated steel frame
Work SurfaceStainless Steel
GFCI outletStandard
Finish (exterior)MICROgone™ antimicrobial coating
Finish (interior)Standard models, MICROgone antimicrobial coating. -SS models, stainless steel interior.
Other Features
Night Door/CoverOptional
Blowerebmpapst™ external rotor motor, permanently lubricated, low noise and vibration levels
Electrical120V, 60Hz or 220V, 50Hz voltages available. Specify when ordering. Other voltage options available.
Electrical ControlsMain On/Off Switch; Solid State Fan Speed Control with RFI filter; UV Timer and Key Switch if included
MonitoringMinihelic ULPA pressure gauge
Product Details
Airflow0.45 m/s (90 fpm)
Pre-FilteDisposable polyester fibers with 85% arrestance
Main FilterULPA, 99.999% efficient at particle sizes between 0.1 to 0.3 μm
SizeFull size of Work Zone
ClampingSpring loaded, adjustable tension adjusts for gasket aging
Cabinet LightingCompact fluorescent bulb removed from air stream
UV LampOptional
Noise, dBA, 1 meter≤72
Side Windows(Not Available on Stainless Steel Models)
ConstructionTempered Glass
Visible OpacityTransparent
UV OpacityUV Absorbing
ColorColorless
Construction
ColorWhite epoxy coated steel frame
Work SurfaceStainless Steel
GFCI outletStandard
Finish (exterior)MICROgone™ antimicrobial coating
Finish (interior)Standard models, MICROgone antimicrobial coating. -SS models, stainless steel interior.
Other Features
Night Door/CoverOptional
Blowerebmpapst™ external rotor motor, permanently lubricated, low noise and vibration levels
Electrical120V, 60Hz or 220V, 50Hz voltages available. Specify when ordering. Other voltage options available.
Electrical ControlsMain On/Off Switch; Solid State Fan Speed Control with RFI filter; UV Timer and Key Switch if included
MonitoringMinihelic ULPA pressure gauge
