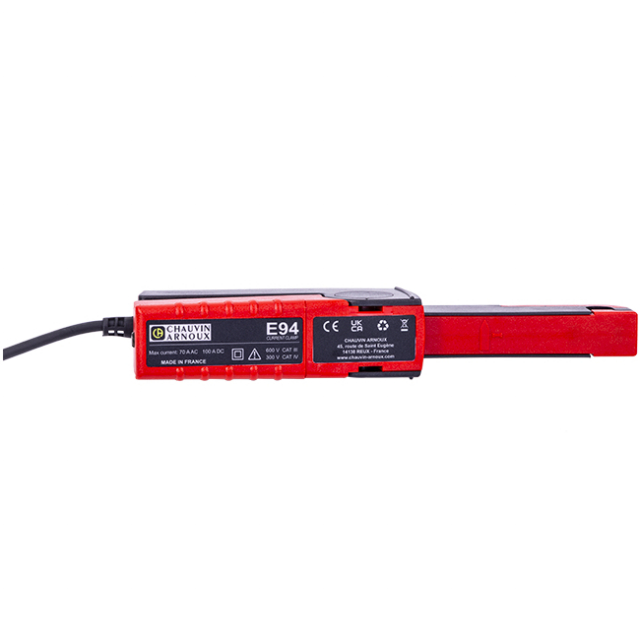

With cutting-edge Hall-effect technology, the E94 Current Clamp defines the way you measure alternating or direct currents. No interruptions to your installations - no need to cut off the current being measured.
Why Choose the E94?
Compact and Ergonomic Design: We understand that some spaces can be a tight squeeze. That's why the E94 boasts a compact design and ergonomic shape, making it the perfect companion for those hard-to-reach places. Precision Sensitivity: Accuracy is key when it comes to current measurements. The E94 offers unrivaled measurement sensitivity, ensuring you get precise readings every time. User-Friendly: Simplicity meets safety with the E94. It's designed for ease of use, so you can confidently measure currents without any hassle.
Performance at a Glance
The E94 Current Clamp delivers outstanding performance too:
- Current Measurement Range: From 100 mA to 100 A peak, with two selectable ranges: 10 A and 100 A.
- Wide Bandwidth: Covering a range from DC to 100 kHz (3 dB), the E94 is ready for a variety of applications.

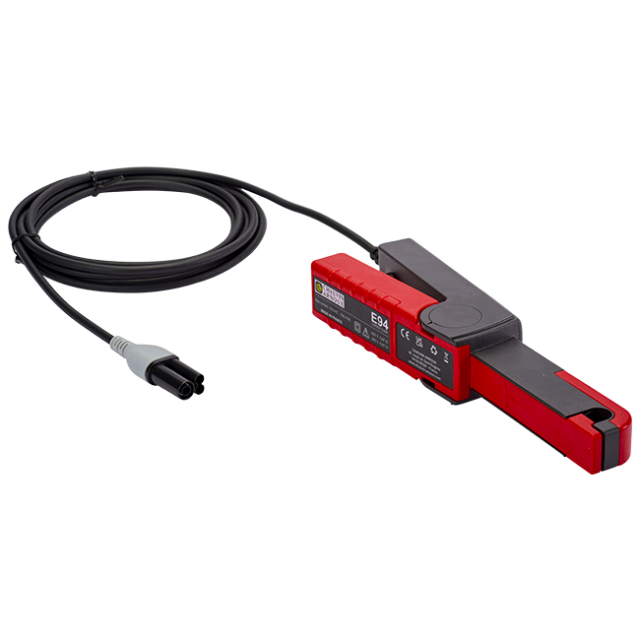

The E94 Current Clamp is equipped with a molded 4-pin connector compatible with the latest-generation PowerPad® IV Class A model 8345. When connected, the clamp draws power directly from the instrument, and the specific connector even allows automatic recognition by the instrument itself.
- "Zero DC" Pushbutton: Easily reset your measurements with the "Zero DC" function, and rest assured that your parameters are saved for future use.
- Range Overshoot Indicator: Stay informed with the range overshoot indication, ensuring you're always in control.
- DC Zero Confirmation: The DC Zero confirmation status provides an extra layer of reliability to your measurements.
