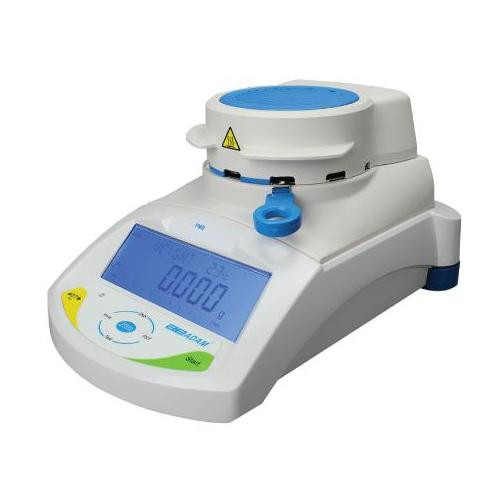

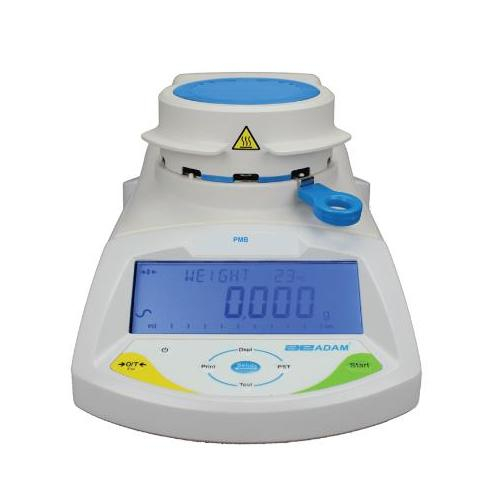

Adam Equipment PMB 163 PMB Moisture Analyzer

PMB Moisture Analyzer

With simple operation and rapid response time, PMB moisture analyzers offer the top value in their class. The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field. A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customise test methods and temperatures for different materials.

Features:

• Hardware
  • Scratch-resistant aluminum housing protects internal components
  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Pan lifter allows easy placement and removal of samples
  • RS-232 interface is available to provide speedy connection to computers and printers
  • USB host for memory card and USB I/O interface
  • USB interface included for data communication
  • Temperature range 50°C to 160°C in one-degree increments
• Software
  • Three settings for heating sample include ramp-up, stepped temperatures and single temperature
  • Seven preset drying modes allow test routines for several products
  • Audible overload alarm warns when capacity is exceeded
  • Testing can be set to start automatically when lid closes
  • Calibration for temperature and weight
  • Multilingual display allows use in many different countries
  • Quick and easy configuration using the keypad
  • Zero-tracking feature ensures display returns to zero reading
  • Internal memory stores 49 different receipes and up to 99 test results,and additional test results and settings can be stored on a flash drive
• Display
  • Vivid, backlit LCD easily visible in any lighting conditions
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Capacity tracker built into display for easily monitoring possible overloads
• Power
  • Mains power cord
