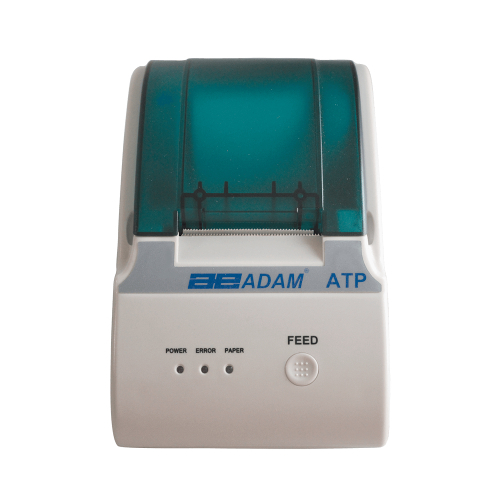

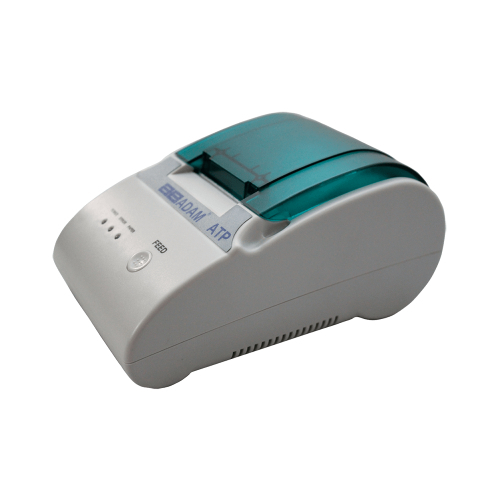

Adam Equipment 1120011156 AD-4212C ATP Thermal Printer

A general purpose thermal roll printer, the ATP is ideal for use with most balances and scales. Designed to be efficient and compact, the printer occupies minimal space on a bench or tabletop. Operation is simple, with an on/off switch, paper feed button and three LED indicators. Ideal for printing applications, the ATP is able to perform a variety of other commands, such as setting tabs, spacing and carriage return. Users can specify absolute position, select or disable double width, and designate line feed. The printer is preset to work with the default RS232 interface on Adam balances, but adapts easily to work with other equipment.

Features:

• Dimensions: 114 mm x 184 mm x 90 mm
• Interface capabilities: serial port
• Support for up to 26 international character sets
• Print size 24 x 24 dot
• Column size 384 dots per line
• Print speed 50mm / sec
• 57.5mm paper width
• Selectable baud rates
• LED indicators to show power, error and when out of paper
• RS-232 cables included (9F and 9M, 25 pin)
