| Electric stirring motor | - 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP
- Rotation: 450 rpm max. (±8%)
- Starting torque: 3.0 N.m
- Rated toruqe: 1.54 N.m
- Built-in gearbox ratio: 3:1 to 180:1
- Controller: Delta, UL listed
|

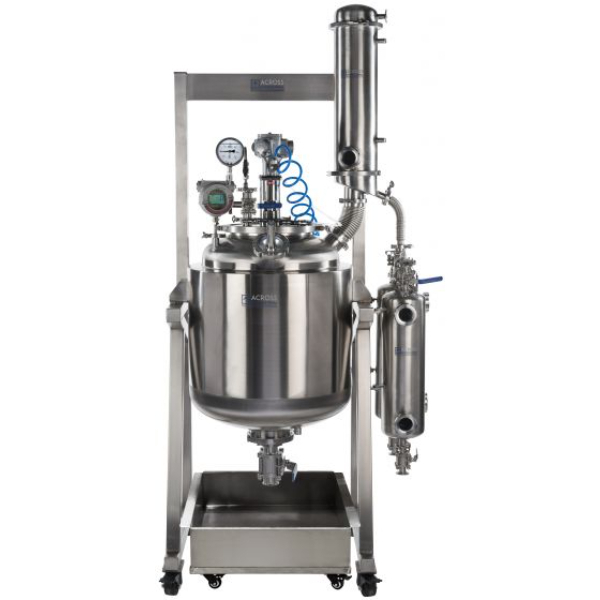

| Pneumatic stirring motor | - Power: 1/4 HP
- Rotation: 450 rpm max. (±8%)
- Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)
- Working temperature: -10C to +70C
- For constant use: set rpm to 80% of maximum rpm
- Motor lubricant
- Check/replenish/replace every 500 hours
- Air lubricant
- Type: JIS K2213-1 (ISOVG32)
- Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
- Speed: 2-3 drops per minute
- For safety purpose, detach compressed air supply when not in use, left un-attended or at night
- Do not run motor un-loaded
- Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM
- Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.
- Make sure exhaust port/hole is clear from any debris or blockage
- Check every 2-3 days: Air Lubricant, Air Filter water drain
|
| Port configuration | - Lid: 6" triclamp
- Center motor port: 3" triclamp
- Drain port: 6" triclamp
- Drain port on/off valve: 2" triclamp
- Vacuum port: 1.5" triclamp
- ondenser recirculating fluid port: 1/2" female NPT
- Vessel jacket recirculating fluid ports: 1" female NPT
- 50L/100L collection tanks
- Standard lid: 6" tri-clamp, with 1.5" tri-clamp x 4
- Additional lid: 6" tri-clamp, with 1/2" FNPT with DipTube x 2, 1/2"
- FNPT x 1, 1/4" FNPT x 1, 2" tri-clamp x 1
- Top of tank: 1.5" tri-clamp with sight glass x 2
- Drain port: 1.5" tri-clamp
|

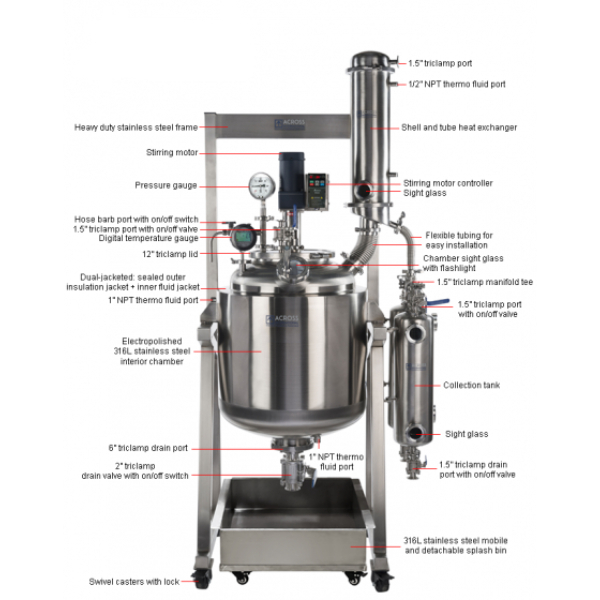

| Main vessel | - Volume: 100L
- Material: 316L grade stainless steel
- Interior finish: ElectroPolished
|
| Agitator | - Structure: propeller, 3-blade, dual-layer (standard)
- Style: quick-change
- Material: 316L grade stainless steel
- Detachable length: 20 inches
|
| Center fluid jacket | - Volume: 22L
- Material: 304 grade stainless steel
|
| Outer insulation jacket | - Sealed
- Material: 304 grade stainless steel
|

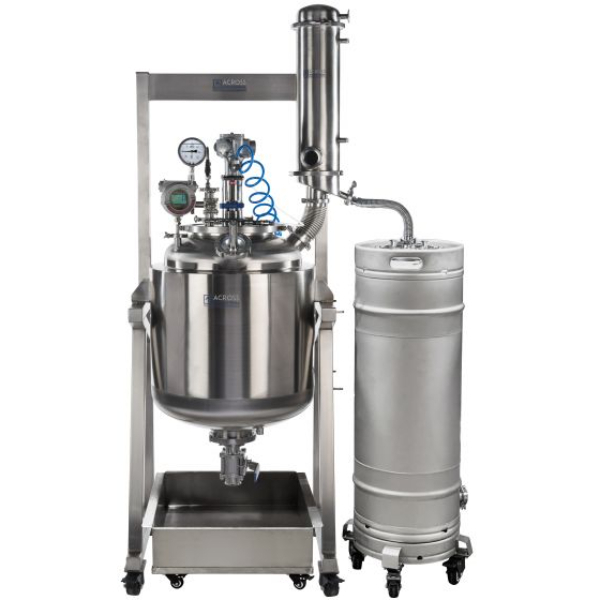

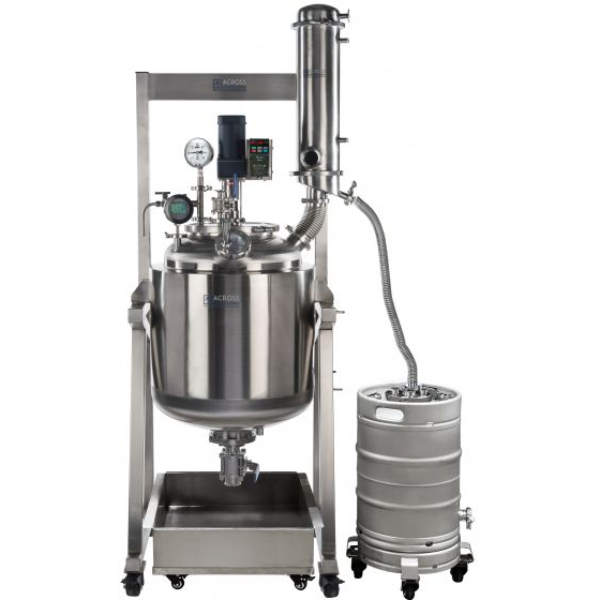

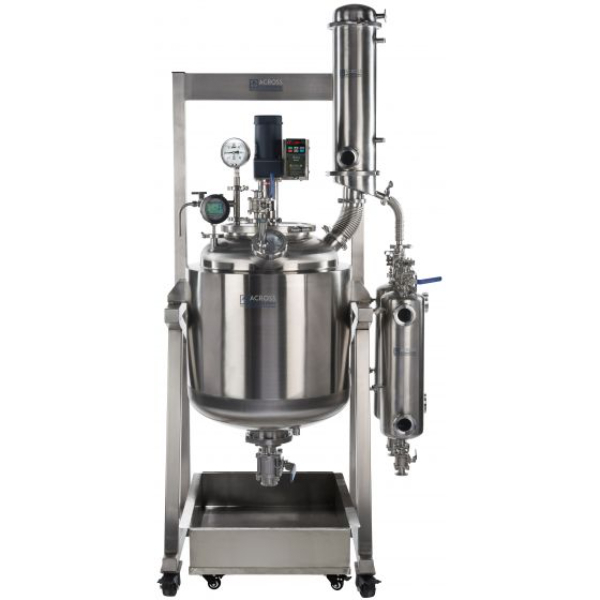

| Collection tank | - Option 1: 10L x 2, 316L stainless steel, with manifold
- Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly)
- Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly)
|
| Material | - All wetted parts 316L grade stainless steel on main reactor body
- Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis.
|
| Main Condenser | - Style: shell and tube heat exchanger
- Number of tubes: 70
- Condensing area: 0.89 m2
|
| Pressure | Ultimate vacuum level: 1 Torr |
| Temperature range | -55°C to +250°C (-67°F to +482°F) |
| Temperature sensor/display | - Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
- Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
|
| Sealing gasket | Food grade Viton |
| Main Mounting Frame | Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters |
| Drain port ground clearance | - Drain port: 19.5 inches
- Drain valve: 14 inches
|
| Unit/shipping weight | 255 Lbs / 350 Lbs |
| Unit/shipping dimensions | 38 x 32 x 82" (WxDxH) |
