Across SDS50.H 50mm Diameter ID Heated Die with Digital Controller

  • Brand Across
  • Part # SDS50.H
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Across, SDS50.H, 50mm Diameter ID 250°C Heated Die with Digital Controller

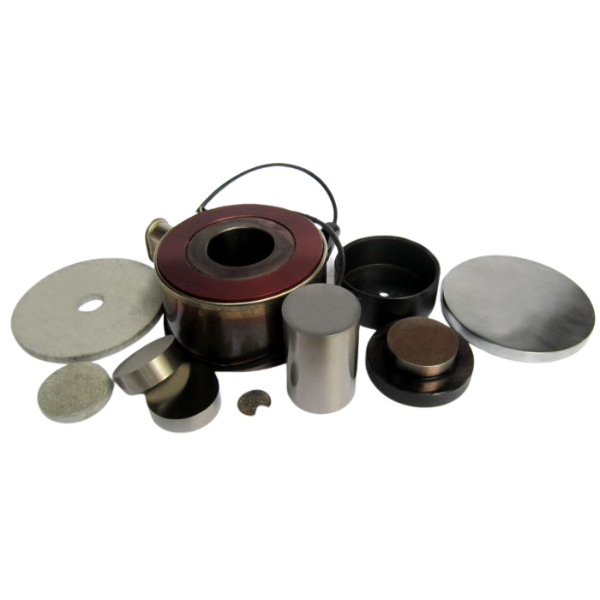

SDS50.H Includes Only:

  • Two 50mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve with PT-100 heater and sensor
  • One steel support plate
  • One thermal isolation plate
  • One push rod
  • One cylinder pellet ejector
  • One WK-1 digital temperature controller

A set of 50mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 50mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Electrical Requirements110V 60Hz 550 watts
Maximum Pressure200 tons
Maximum Temperature250°C
Rockwell HardnessRc 62
Diameter (ID)50 mm
Sleeve Diameter (OD)130 mm
Total Height120 (assembled without sample)
Max. Load Height28 mm
Temperature Step1°C
Temperature Sampling3 times per second
Accuracy+/- 1%
Working Environment0-50°C, <35% RH humidity
MaterialCr12 hardened carbon mold steel
Pressing Die Tolerance0.01-0.02 mm (10-20 micron)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Electrical Requirements110V 60Hz 550 watts
Maximum Pressure200 tons
Maximum Temperature250°C
Rockwell HardnessRc 62
Diameter (ID)50 mm
Sleeve Diameter (OD)130 mm
Total Height120 (assembled without sample)
Max. Load Height28 mm
Temperature Step1°C
Temperature Sampling3 times per second
Accuracy+/- 1%
Working Environment0-50°C, <35% RH humidity
MaterialCr12 hardened carbon mold steel
Pressing Die Tolerance0.01-0.02 mm (10-20 micron)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
