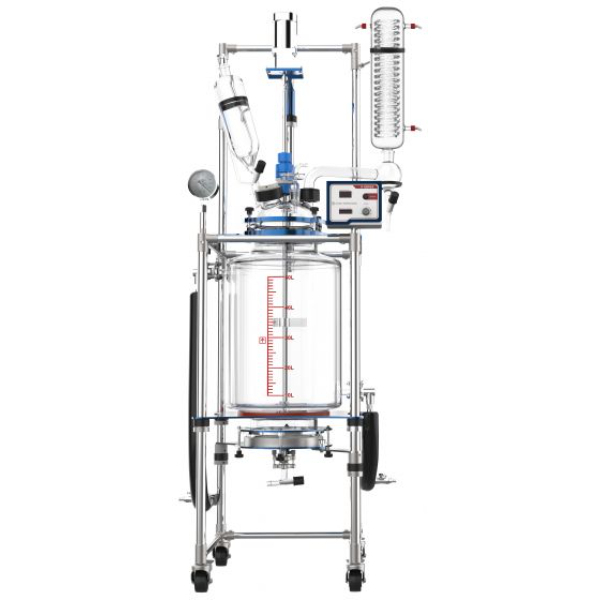

Across, R50f-220V-G, Ai 50L Jacket Reactor with Explosion-Proof Motor and Controller 220V, 220V
R50f-220V-G Includes Only:

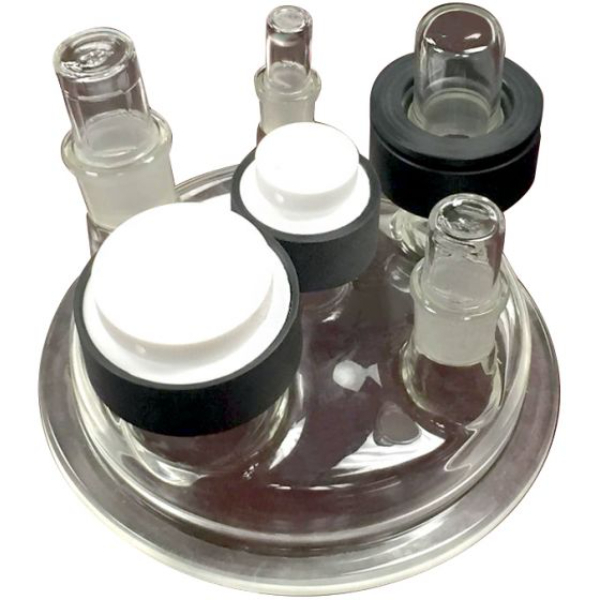

- Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled) - 1 set

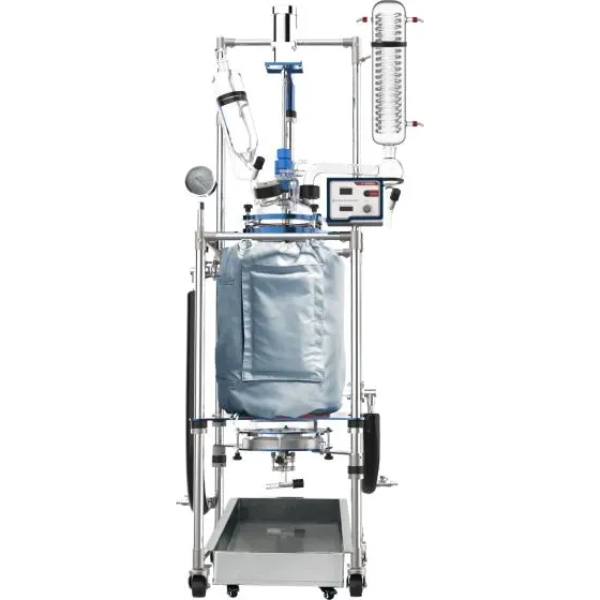

- Insulation jacket with openable viewing window - 1 pc
- Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass - 1 pc
- Glass material feeding funnel, lid, and PTFE open/close valve - 1 set
- 1" glass drain port with PTFE open/close valve - 1 set
- Glass vacuum valve - 1 set
- Stirring motor controller with material temperature display - 1 pc
- Stirring motor and motor support - 1 set
- Mechanical vacuum gauge with two 3/8" hose barb ports - 1 pc
- Temperature probe with PTFE seal - 1 pc
- PTFE stirring blades, stainless steel rod with PTFE liner - 1 pc
- Insulated hose with drain port & open/close valve x 2, 3/8" Stainless steel hose barb adapters x 2 4 pcs
- PTFE sealing tape - 1 pc
- PTFE stirring rod positioner/bearing kit - 1 set
- Condenser dispenser connection kit - 1 set
- Large opening material feeding port kit - 1 set
- Bottom drain port sealing clamp - 1 set
- Rubber-wrapped condenser dispenser support and condenser bracket - 3 pcs
- Chilling fluid connector x 2, vacuum connector x 1 - 3 sets
- Allen key and backup inner hex screws - 1 set
- Lower section filter assembly - 1 set
- Users manual - 1 pc
The Ai jacketed filter glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment, jacketed filter reactors can be used for single or multi-step reactions and filtrations in the same vessel, production and process scale peptide synthesis. Filter base eliminates material transfers and significantly reduces material losses.
Each Ai reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features
- Filter reactors for single or multi-step reactions and filtrations in the same vessel, they also eliminate material transfers and reduce losses.
- Modular filter assembly can be easily detached for cleaning and filter paper replacement.
- Center downward drain port with angled drain grooves allows easy material drainage.
- All PTFE filter components ensure clean and long lifespan operations.
- Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
- All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
- Adjustable stirring rate provides great torque or high speed.
- Patented PTFE stirring rod bearing for reliable and quiet operation.
- Wide range of temperature operations, from -110F to 400F.
- Large condenser cooling surface for exceptional condensation performance.
- Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
- Easily visual operation with digital speed and temperature displays.
- Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
