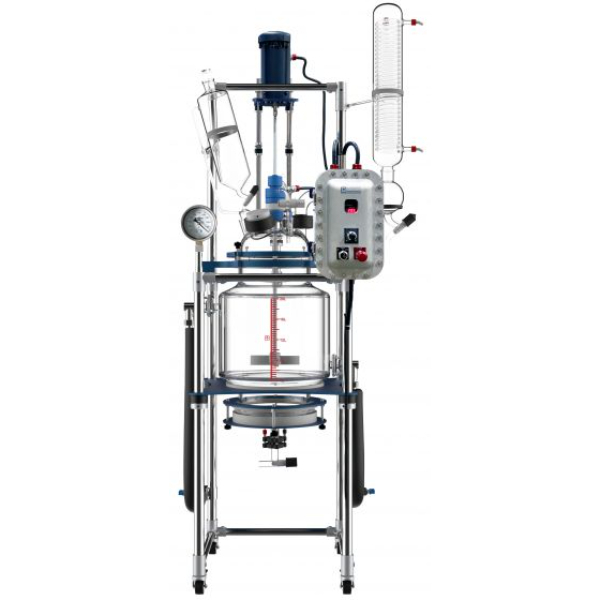

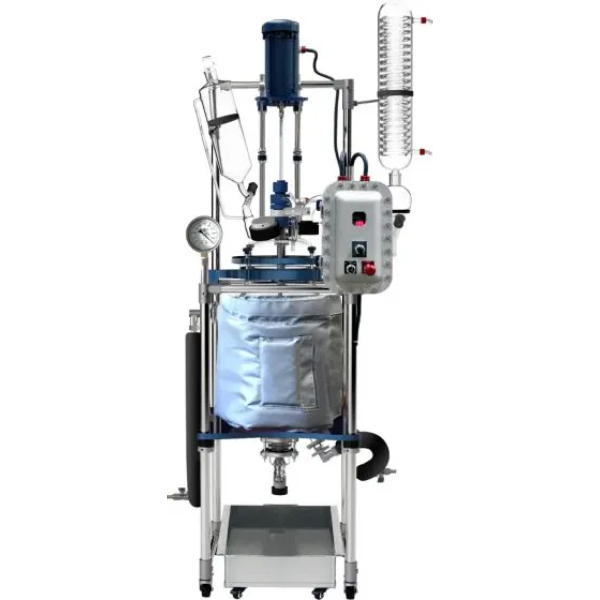

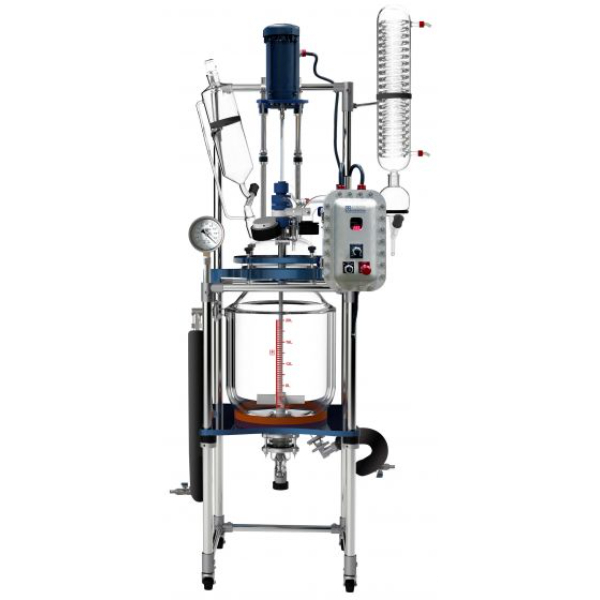

Across R20ex Ai 20L Jacket Reactor with Explosion-Proof Motor, 220V

Across, R20ex, Ai 20L Jacket Reactor with Explosion-Proof Motor and Controller 220V

R20ex Includes Only:

• Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled) - 1 set
• Glass vessel insulation jacket with openable viewing window - 1 pc
• Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass - 1 pc
• Glass condenser dispenser with drain port and PTFE open/close valve - 1 set
• Glass material feeding funnel, lid, and PTFE open/close valve - 1 set
• 1" glass drain port with PTFE open/close valve - 1 set
• Glass vacuum valve - 1 sets
• Explosion-proof controller - 1 pc
• Explosion-proof stirring motor and motor support - 1 set
• Mechanical vacuum gauge with two 3/8" hose barb ports - 1 pc
• Temperature probe with PTFE seal - 1 pc
• PTFE stirring blades, stainless steel rod with PTFE liner - 1 pc
• Insulated hose with drain port and open/close valve x 2
• 3/8" Stainless steel hose barb adapters x 2
• PTFE sealing tape - 1 pc
• PTFE stirring rod positioner/bearing kit - 1 set
• Condenser dispenser connection kit - 1 set
• Large opening material feeding port kit - 1 set
• Bottom drain port sealing clamp - 1 set
• Rubber-wrapped condenser dispenser support and condenser bracket - 3 pcs
• Chilling fluid connector x 2, vacuum connector x 1 - 3 sets
• Allen key and backup inner hex screws - 1 set
• User's manual - 1 pc

Ai R20ex series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features:

• PSI peer reviewed to be used in a C1D1 environment.

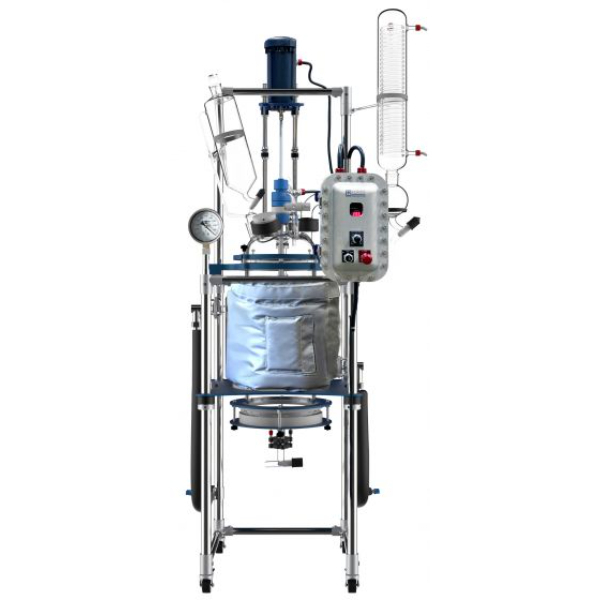

• Thermo insulation jacket with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
• Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Wide range of temperature operations, from -110F to 400F.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
