Across R150-110V-R Ai 150L Single Jacketed Glass Reactor ETL, 110V

Across, R150-110V-R, Ai 150L Single Jacketed Glass Reactor ETL, 110V, Replace Vacuum Port with a Glass Hollow Stopper

R150-110V-RIncludes Only:

• Glass vessel, lid, clamps and heavy-duty stainless-steel stand with casters (shipped pre-assembled) - 1 set

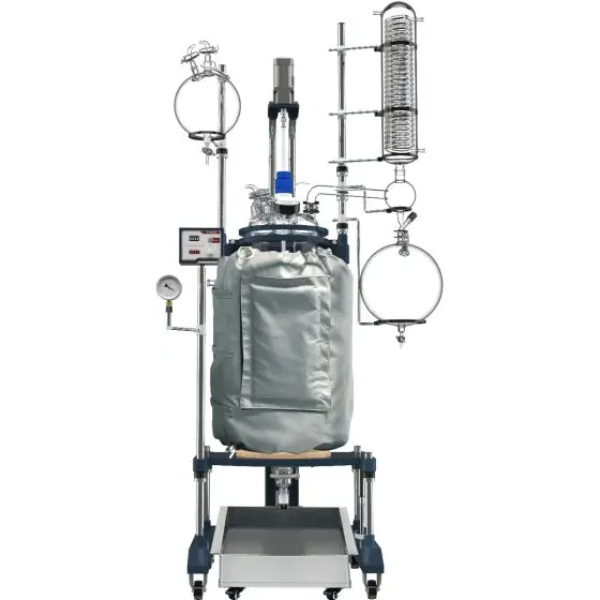

• Glass vessel insulation jacket with openable viewing window - 1 pc
• Rubber bumper (pre-assembled) - 1 pc

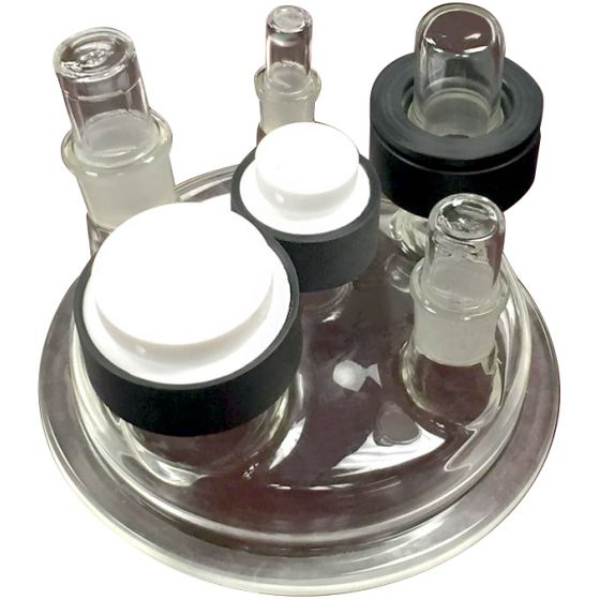

• Lid Gaskets (pre-assembled) - 1 pc
• Upper and lower clamp set (pre-assembled) - 1 pc
• Vertical condenser with dual cooling coils, 2 chilling fluid ports, and 1 vacuum port, glass - 1 pc
• Glass condenser dispenser with drain port and PTFE open/close valve - 1 set
• Glass feeding funnel with PTFE open/close valve - 1 set
• Glass receiving flask with PTFE open/close valve - 1 set
• 1" Glass drain port with PTFE open/close valve - 1 set
• Temperature probe with PTFE seal - 1 pc
• Glass vacuum valve - 6 sets
• Stirring motor controller with material temperature display - 1 pc
• Stirring motor and motor support - 1 set
• Mechanical vacuum gauge with two 3/8" hose barb ports - 1 pc
• Temperature probe with PTFE seal - 1 pc
• PTFE stirring blades, stainless steel rod with PTFE liner - 1 pc
• Insulated hose with drain port and open/close valve x 2
• 3/8" Stainless steel hose barb adapters x 2
• PTFE sealing tape - 1 pc
• PTFE stirring rod positioner/bearing kit - 1 set
• Condenser dispenser connection kit - 1 set
• Large opening material feeding port kit - 1 set
• Bottom drain port sealing clamp - 1 set
• Rubber-wrapped condenser dispenser support and condenser bracket - 6 pcs
• Chilling fluid connector x 2, vacuum connector x 1 - 3 sets
• Allen key (x 2) and backup inner hex set screws (5) and bolts (2) - 1 set
• Hose clamps 5 pc
• SST Ball joint clamp 2 pc
• Feeding funnel clamp 1 pc

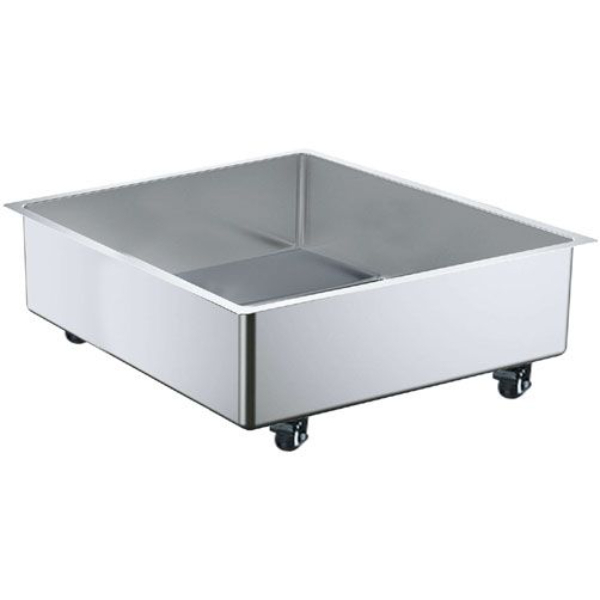

• 316L SST mobile & detachable splash bin - 1 pc
• Motor Power Cord (110 or 220V) - 1 pc
• Motor Shaft Universal Joint 1 pc
• NPT to barb fitting adapter 2 pc
• #80 Quick Clamp 1 pc
• #80 Centering Ring 1 pc
• Metal Support 28" x1
• Metal support 36" with three boss heads x1
• Metal support with five boss heads and one ring support x1
• Motor Support 29" 2 pc
• Users manual - 1 pc

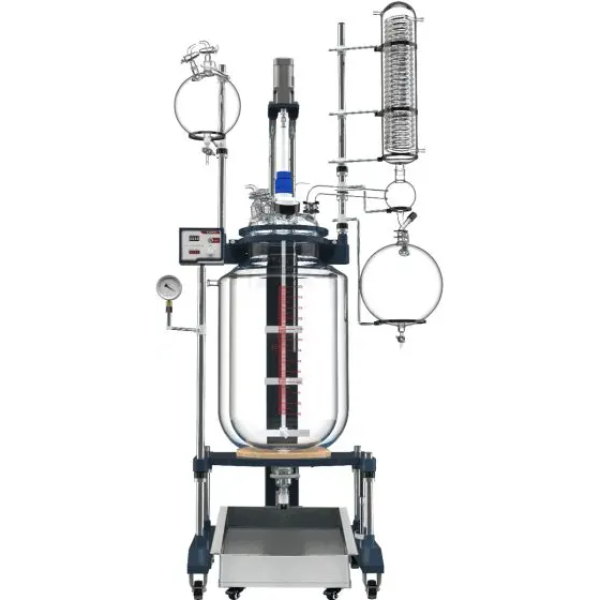

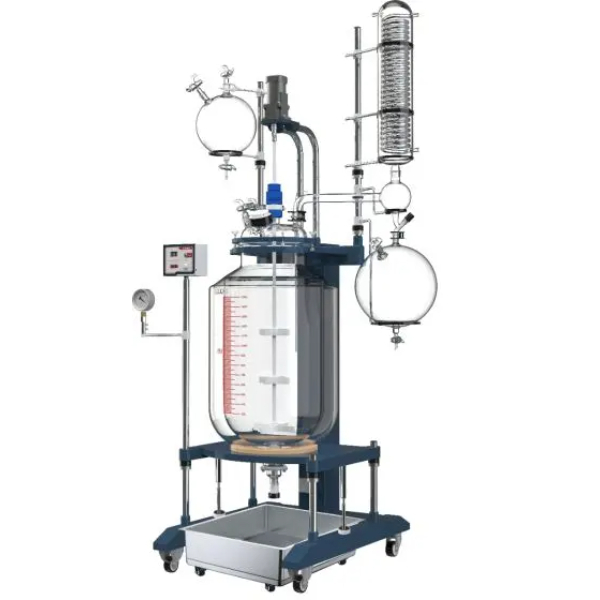

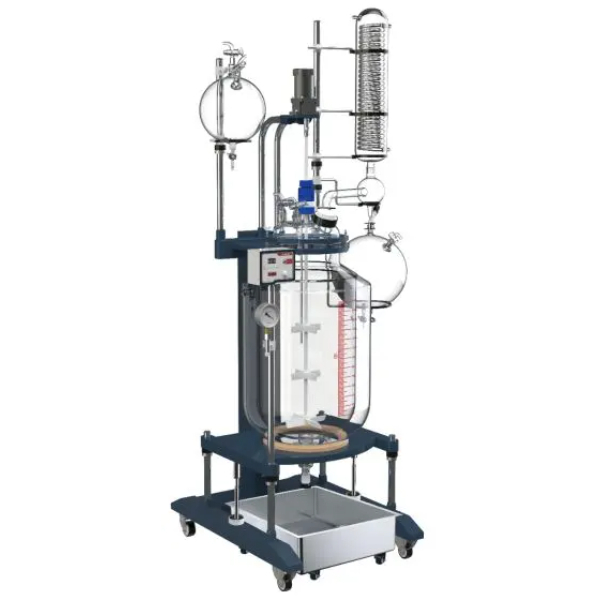

Ai R150 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

• ETL certified to UL and CSA standards
• Includes a FREE high quality thermo insulation jacket (a $999 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled).
• Mobile and detachable 316L stainless steel splash bin included.
