A&D Weighing HW-100KGL-NC HW-KGL Series Industrial Scale w/o Column

  • Brand A&D Weighing
  • Part # HW-100KGL-NC
  • Model # HW-KGL Series
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

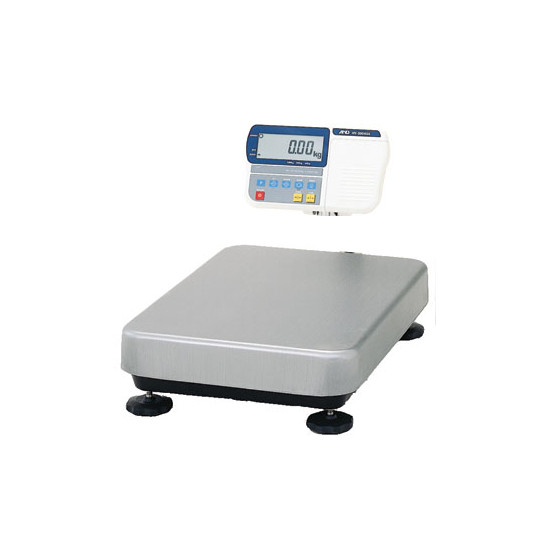

A&D Weighing, HW-100KGL-NC, HW-KGL Series 100kg x 0.01kg Industrial Scale without Column

Features

  • Liquid Crystal display
  • High resolution up to 1 in 12,000
  • Rugged and Reliable operation
  • Standard RS232C serial data interface
  • Software includes counting, batching & % functions
  • Full digital calibration (FDC) ensuring accurate and simple calibration
  • Counting at 1/8 displayed division, 96,000 max displayed count.
  • Single point overload protected loadcell
  • Built in comparator function with full feed/dribble feed control
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Weighing Capacity [kg]100
Min. weighing (1 digit) [g]10
Weighing Capacity [lb]200
Min. weighing (1 digit) [lb]0.02
Weighing Capacity [oz]3200
Min. weighing (1 digit) [oz]0.5
Number of samples in counting mode [pieces]5（can be changed to 10, 20, 50, 100）
Max. count number [pieces]10,000
Display7 segment liquid crystal display, Character height 25 mm
Repeatability [g]±20
Linearity [g]±20
Span drift20ppm/°C typ. (5°C to 35°C)
Power rating230V AC (+10%-15%) 50/60Hz 20VA, Fuse T200mA or 120V AC (+10%-15%) 50/60Hz 20VA, Fuse T315mA
Power sourceAC adapter Please confirm that the AC adapter type is correct for your local voltage and receptacle type. 50Hz/ 60Hz. Battery x 6 pieces R20P, R20PU, LR20, type D or Mono
Battery lifeApproximately 600 hours with alkaline battery
Ambient temperature and humidity-10°C to 40°C, Less than 85%R.H. (Do not allow condensation)
Weighing pan size [mm]390 x 530
Product Details
Weighing Capacity [kg]100
Min. weighing (1 digit) [g]10
Weighing Capacity [lb]200
Min. weighing (1 digit) [lb]0.02
Weighing Capacity [oz]3200
Min. weighing (1 digit) [oz]0.5
Number of samples in counting mode [pieces]5（can be changed to 10, 20, 50, 100）
Max. count number [pieces]10,000
Display7 segment liquid crystal display, Character height 25 mm
Repeatability [g]±20
Linearity [g]±20
Span drift20ppm/°C typ. (5°C to 35°C)
Power rating230V AC (+10%-15%) 50/60Hz 20VA, Fuse T200mA or 120V AC (+10%-15%) 50/60Hz 20VA, Fuse T315mA
Power sourceAC adapter Please confirm that the AC adapter type is correct for your local voltage and receptacle type. 50Hz/ 60Hz. Battery x 6 pieces R20P, R20PU, LR20, type D or Mono
Battery lifeApproximately 600 hours with alkaline battery
Ambient temperature and humidity-10°C to 40°C, Less than 85%R.H. (Do not allow condensation)
Weighing pan size [mm]390 x 530
Note

Note: Please read description carefully. Do not base your order on the picture presented.
