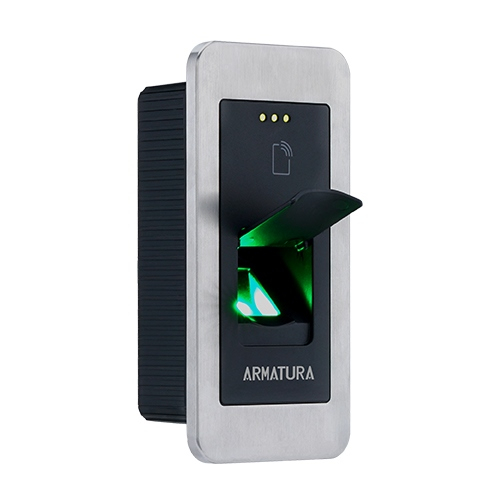

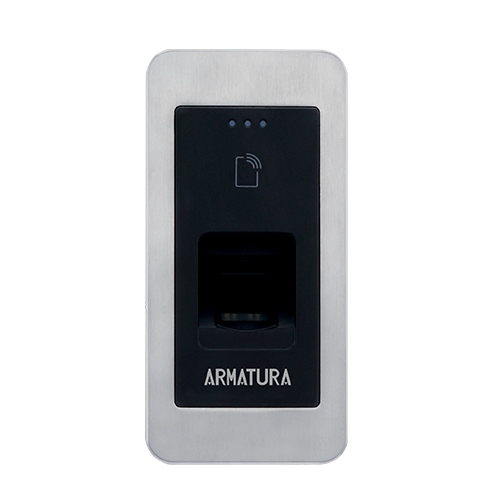

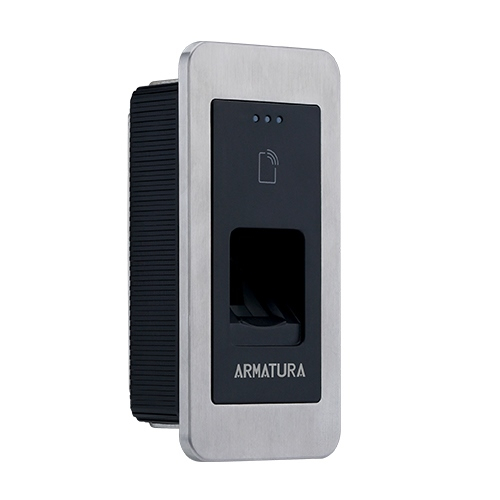

ZKTeco, AMT-EP30CF-M, Explorer Series Single Gang Fingerprint Plus Bluetooth 13.56MHz Multi-Tech Fingerprint Reader

Features:

OSDP & RS485 Multi-tech Biometric Reader
IP65 Water & Dustproof Protection Level
Advanced Fingerprint Scanning Technology
Advanced Security
Multi-tech & Mobile Credential Ready
Designed for Advanced Security
Anti-SPA/ DPA/ EMA/ DEMA Attack

Note: Works only with amt-bt-card Bluetooth cards.

The EP30CF reader series is one of the first OSDP multitech biometric readers in the market which fully complies with OSDP version2.2 with securec communication encrypted using AES128 standard. EP30CF supports an advanced fingerprint scanning algorithm and it supports biometric template transmission over RS485 and OSDP communication protocols. It also support over 30 RFID card types as well as dua RFID frequencies (125kHz and 13.56MHz) and both mobile NFC and Bluetooth (Low Energy Credentials)

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Operating Frequency / Standards

13.56 MHz
2.4 GHz Bluetooth

Functions

RFID, Bluetooth, Fingerprint

Communications and Panel Connection

OSDP (v2.2) via RS485

RFID Reading Distance

Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)

Data Protection

AES128 (Secured Communication between Reader and Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip

Fingerprint Algorithm

AMTFingerprint v10.0

Visual Indicator

RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)

Audio Indicator

Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)

Power Requirement / Power Supply

9 VDC to 24 VDC

Operating Temperature

-4°F - 131°F /-20°C to 55°C

Dimensions (LxHxD)

With Metal Case: 2.59" L x 5.28" H x 1.54" D (65.9 x 134.2 x 39.1mm)
With Metal Case and Back Case: 2.48 L x 5.18 H x 1.57 D (63 x 131.5 x 40mm)
Without Metal Case: 2.57" L x 5.26" H x 1.54" D (65.2 x 133.7 x 39.1mm)

Tamper Switch

Magnetic tamper detection system

Certifications

CE, FCC, UL294 (Coming Soon), RoHs3.0, WEEE

Mounting

Back box for flush mount or surface mount on any flat surface mounting

Protection / Resistance

Weather and Dust Proof Protection Rating compliant with IP65

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Operating Frequency / Standards

13.56 MHz
2.4 GHz Bluetooth

Functions

RFID, Bluetooth, Fingerprint

Communications and Panel Connection

OSDP (v2.2) via RS485

RFID Reading Distance

Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)

Data Protection

AES128 (Secured Communication between Reader and Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip

Fingerprint Algorithm

AMTFingerprint v10.0

Visual Indicator

RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)

Audio Indicator

Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)

Power Requirement / Power Supply

9 VDC to 24 VDC

Operating Temperature

-4°F - 131°F /-20°C to 55°C

Dimensions (LxHxD)

With Metal Case: 2.59" L x 5.28" H x 1.54" D (65.9 x 134.2 x 39.1mm)
With Metal Case and Back Case: 2.48 L x 5.18 H x 1.57 D (63 x 131.5 x 40mm)
Without Metal Case: 2.57" L x 5.26" H x 1.54" D (65.2 x 133.7 x 39.1mm)

Tamper Switch

Magnetic tamper detection system

Certifications

CE, FCC, UL294 (Coming Soon), RoHs3.0, WEEE

Mounting

Back box for flush mount or surface mount on any flat surface mounting

Protection / Resistance

Weather and Dust Proof Protection Rating compliant with IP65
